DESCRIPTION
• Chrome plated metal construction with various finishes
identified by suffix
• 1/2" IPS connections
OPERATION
• Pivot action lever style handle
• Temperature controlled through 180˚ degree arc
of handle travel
FLOW
• Flow is limited to 1.5 gpm max (5.7L/min) at 60 psi,
for products made before October 2008 flow is limited to
2.2 gpm max (8.3 L/min)
CARTRIDGE
• 1225 cartridge design
• Nonmetallic/nonferrous and stainless steel material
• Can accommodate reversed piping and back to back
installations
STANDARDS
• Third party certified to WaterSense,® CSA B-125.1/ASME
A112.18.1, ICC A117.1 and all applicable requirements
referenced therein
•
Certified to ANSI/NSF 61/9
•
Complies with California Proposition 65 and with
the Federal Safe Water Drinking Act
• ADA
for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
1-3/4"
(45mm)
MAX.
ADAPTER
Rev. 7/08
6" (152mm)
(ESCUTCHEON WIDTH
1/2" IPS
LIFT
ROD
2"
2"
(25mm)
(25mm)
CRITICAL DIMENSIONS
S p e c i f i c a t i o n s

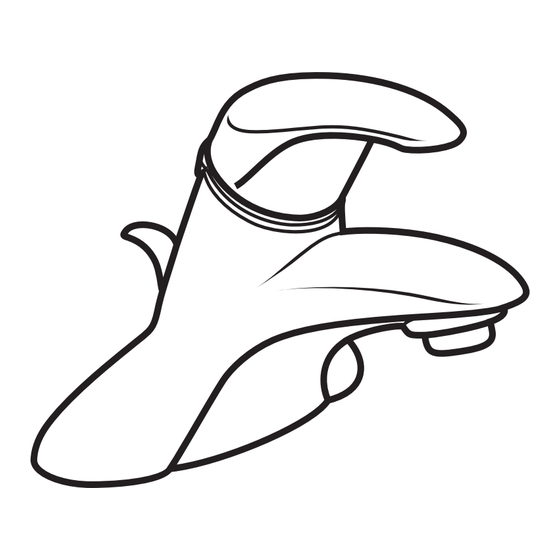

Single-Handle Lavatory Faucet
With Metal Waste Assembly
Models: L4721 series, L4725 series
Bulk Pack (12 per carton)
Model: L64721 series, L64725 series
With 50/50 Waste Assembly
Bulk Pack (12 per carton)
Models: L64751 series, L64755 series
NOTE: THIS FAUCET IS DESIGNED TO BE
INSTALLED THRU 3-1" DIA. HOLES, 4" ON CENTER
2-13/16"
TOP OF
MOUNTING
SURFACE
3-5/8"
SPACER
(92mm)
PROVIDED –
DISCARD IF
MOUNTING
SURFACE IS
MORE THAN
3/4" THICK
5"
(127mm)
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
VILLETA
™
Model: L84721 series
7"
(178mm)
2-3/8"
(60mm)
www.moen.com
