Moen Vestige T2503 Specifications

DESCRIPTION

• Metal construction with various finishes identified by suffix
• Includes showerhead, arm, flange and diverter tub spout

OPERATION

• Handle operates counterclockwise through a 270˚ arc with off at 6 o'clock
and maximum hot at the 9 o'clock position. Shut off in clockwise direction
• Adjustable temperature limit stop to control maximum hot water
temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 3°

FLOW

• Showerhead is limited to 2.5 gpm (9.5 L/min) at 80 psi
• EP suffix models are limited to 1.75 gpm (6.6 L/min) at 80 psi
• NH suffix models contain no showerhead

CARTRIDGE

• 1222 cartridge design
• Accommodates back to back installations
• Nonmetallic, nonferrous and stainless steel material

STANDARDS

• Third party certified to meet ASME A112.18.1/CSA B125.1 and all applicable
requirements referenced therein
• EP suffix models are IAPMO Green listed and third party certified to
WaterSense®
• ADA for lever handle

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
4-3/8"
(111mm)
7" (178mm)
ESCUTCHEON
DIAMETER
DIRECTION
OF HANDLE
7-1/2"
ROTATION
(191mm)
MIN.
HOT COLD
INLET INLET
T2503sp: Rev. 4/10
2" CC (51mm)
1-7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
8-3/4"
(222mm)
4-1/2" (114mm)
WALL OPENING
7"
(178mm)
FLOOR
TUB RIM
THICK WALL APPLICATION

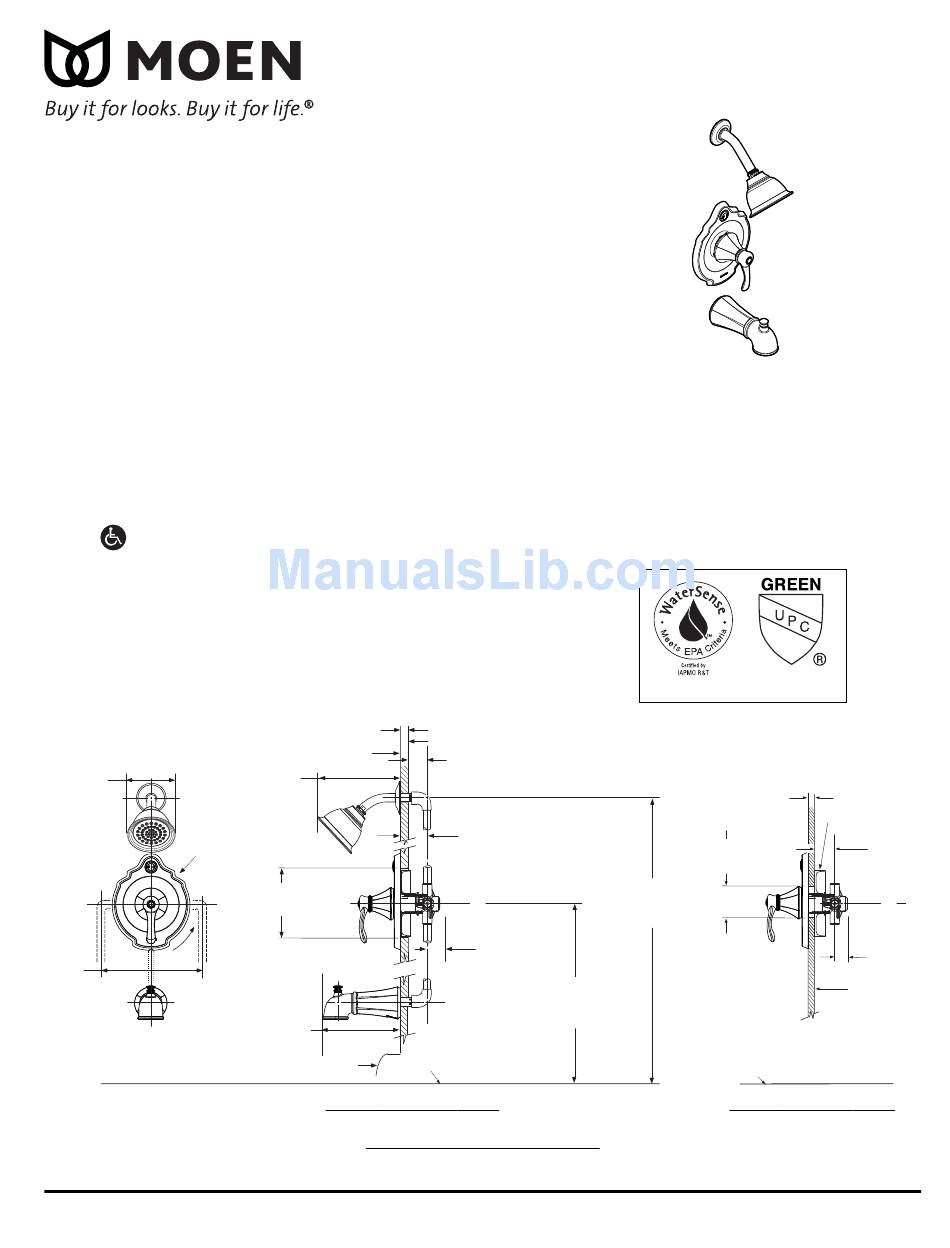

CRITICAL DIMENSIONS

S p e c i f i c a t i o n s
Single-Handle Tub/Shower Trim Kit
Models: T2501 series - valve trim only
Valves: 62300 series
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
2-1/2" MAX. (63mm)
L C
1-3/8" (35mm)
45" (1143mm)/
48" (1219mm)-SHOWER
32" (813mm)-TUB ONLY
or TUB/SHOWER
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
VESTIGE™ POSI-TEMP
T2502 series - shower trim only
T2503 series - tub/shower trim
2500 series
EP Suffix Models Only
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
6'-6"
(1981mm)
FLOOR LINE
THIN WALL APPLICATION
www.moen.com
®
3/16" (typ) (5mm)
PLASTER GROUND
1 1/2"
(38mm)
L C
1 3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
