Moen FELICITY TS544 Series Specifications

DESCRIPTION

• Metal construction with various finishes identified by suffix
• For use with S3600 3/4" volume control valve

OPERATION

• Lever style handle operation

STANDARDS

• Third party certified to meet CSA B125.1, ASME A112.18.1, and all
applicable requirements referenced therein

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser
• 5 year warranty if used in commercial installations

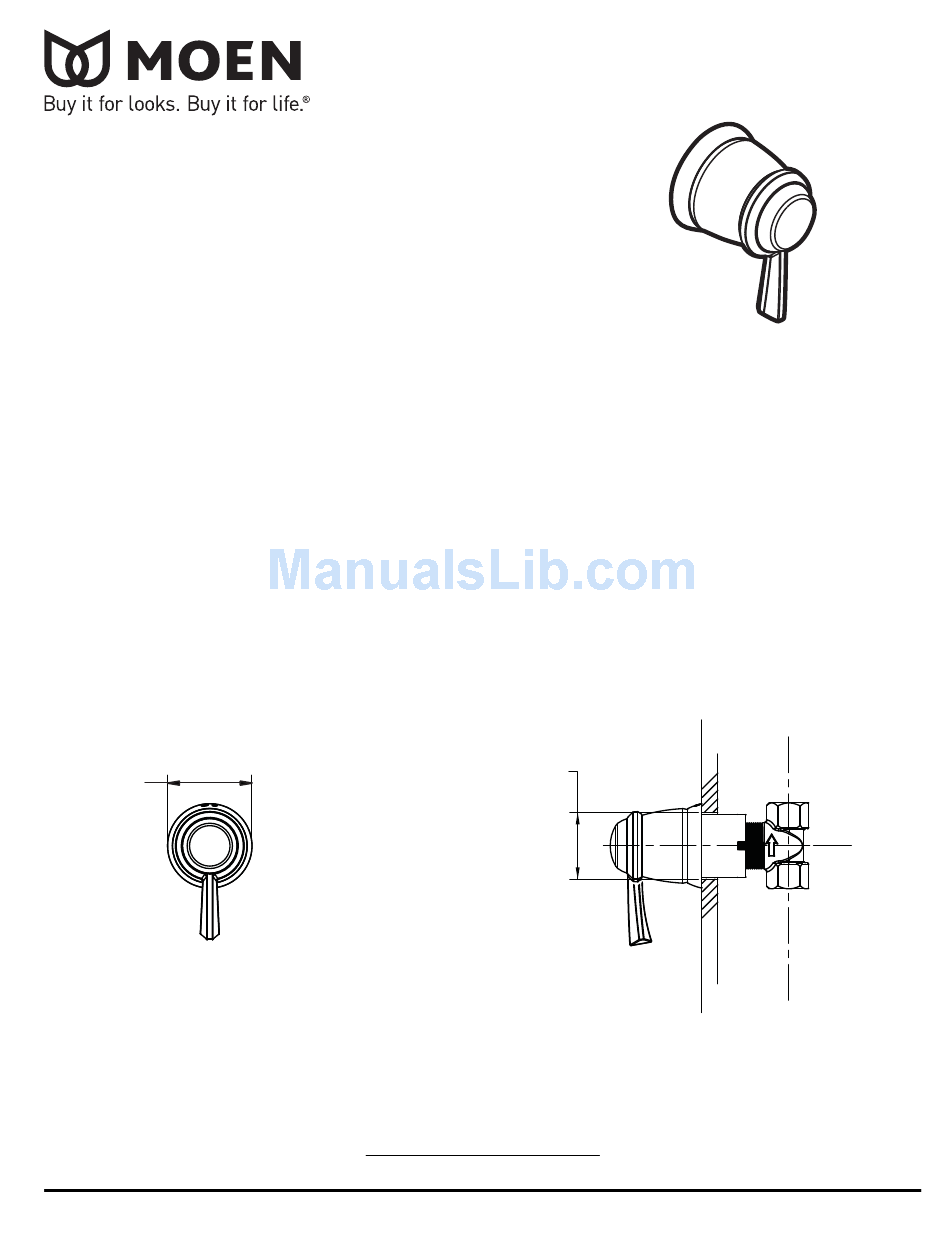

2-11/16"
(68mm)
TS546SP: Rev. 3/11
2-1/4"
(57mm)

WALL OPENING

CRITICAL DIMENSIONS

CRITICAL DIMENSIONS
(DO NOT SCALE) (DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
S p e c i f i c a t i o n s
FELICITY™
Single Function Flow Valve Trim
Models: TS544 series
Valve: S3600
www.moen.com
