Moen T6305 Series Specifications

DESCRIPTION
• Metal construction with various finishes identified by suffix
• 1/2" IPS connections
• Includes hot and cold indicators
• Includes metal pop-up waste assembly
OPERATION
• Lever style handles
• Maximum handle rotation angle is 90˚ to full on for either handle
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counterclockwise to close)
FLOW
• Flow is limited to 1.5 gpm max (5.7L/min) at 60 psi, for products made
before October 2008 flow is limited to 2.2 gpm max (8.3 L/min)
CARTRIDGE
• 1224 cartridge design
• Nonmetallic, nonferrous and stainless steel material
STANDARDS
• Third party certified to WaterSense,® CSA B125.1, ASME A112.18.1, and
all applicable requirements referenced therein including NSF61/9
• Contains no more than 0.25% weighted average lead content
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
• ADA for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
2-7/8"
(72mm)
3-1/2"
(88mm)
2" (50mm)
Escutcheon
QUICK CONNECT
HOSE ASSEMBLY
Rev. 3/11
8"
(203mm)
2" (50mm)
Escutcheon
Dia.
Dia.
Lift
Rod

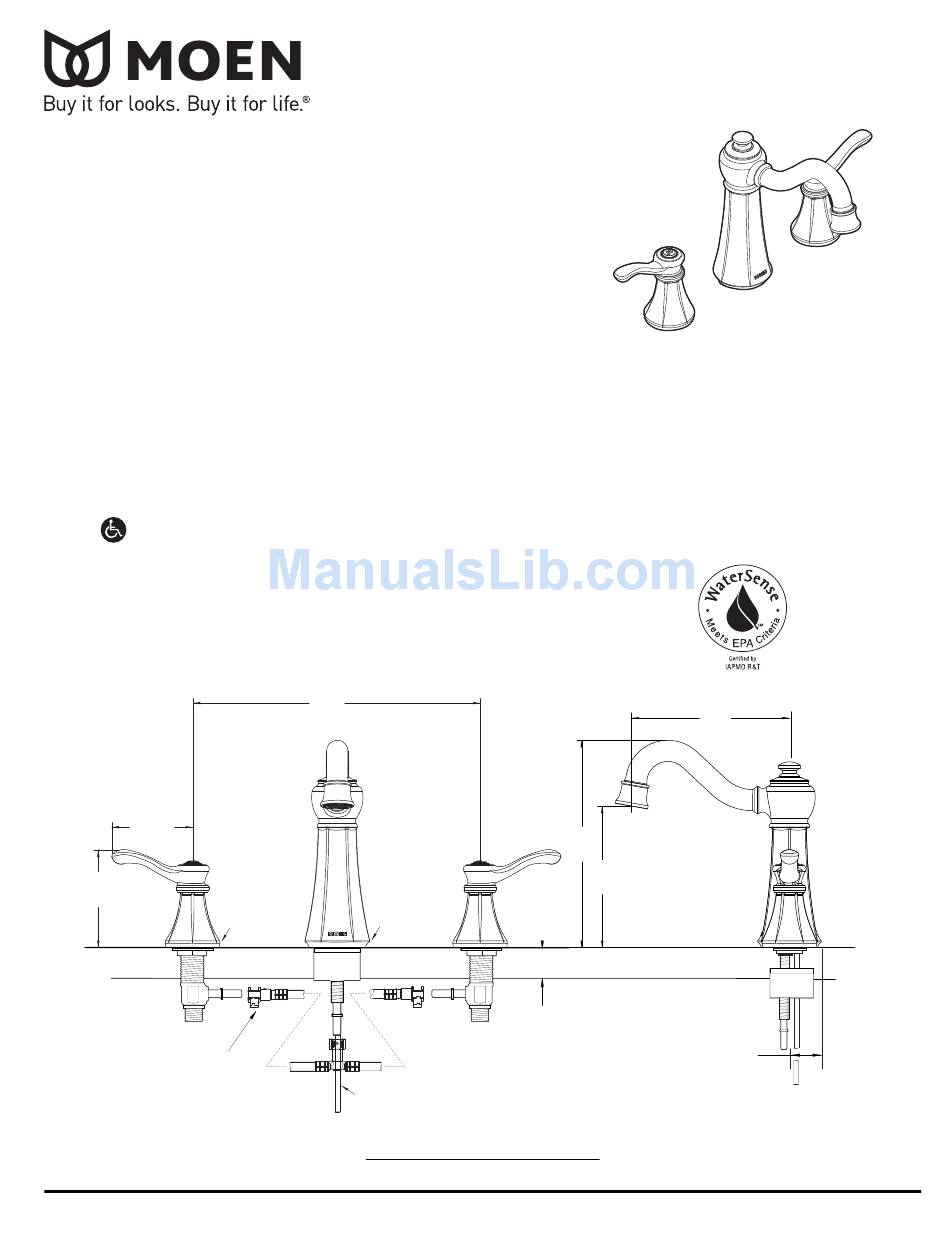

CRITICAL DIMENSIONS
S p e c i f i c a t i o n s
NOTE: THIS FAUCET IS DESIGNED TO BE INSTALLED
7-3/8"
(187mm)
5-1/4"
(134mm)
1-1/4" (32mm) MAX.
DECK THICKNESS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
VESTIGE™
Two Handle Widespread
Lavatory Faucet
Models: T6305 series
Valve: 9000, 69000
THRU 3 HOLES, 1" MIN. DIA.
5-5/8"
(142mm)
1-11/32"
(34mm)
www.moen.com
