Moen T4113 SERIES Specification Sheet

DESCRIPTION
• Metal construction with vatious finishes identified by suffix
OPERATION
• Pull-on/push-off operation of temperature and volume,
rotational control of transfer valve
• Temperature operates through an 180˚ arc of handle
travel (full cold to full hot)
• Adjustable temperature limit stop to control maximum
hot water temperature
• 180˚ rotation of transfer valve handle with stops
• Pressure balancing mechanism maintains selected
discharge temperature to ± 3.6˚F (± 2˚C )
STANDARDS
• Third party certified by CSA to meet CSA B-125,
ASME A112.18.1M
ADA
• for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and finish
defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
Rev. 11/07
FINISHED WALL LINE
1.875"
(47.6mm)
5.875"
(149mm)
8.375"
(212.7mm)
7" Max
(178mm)
Escutcheon

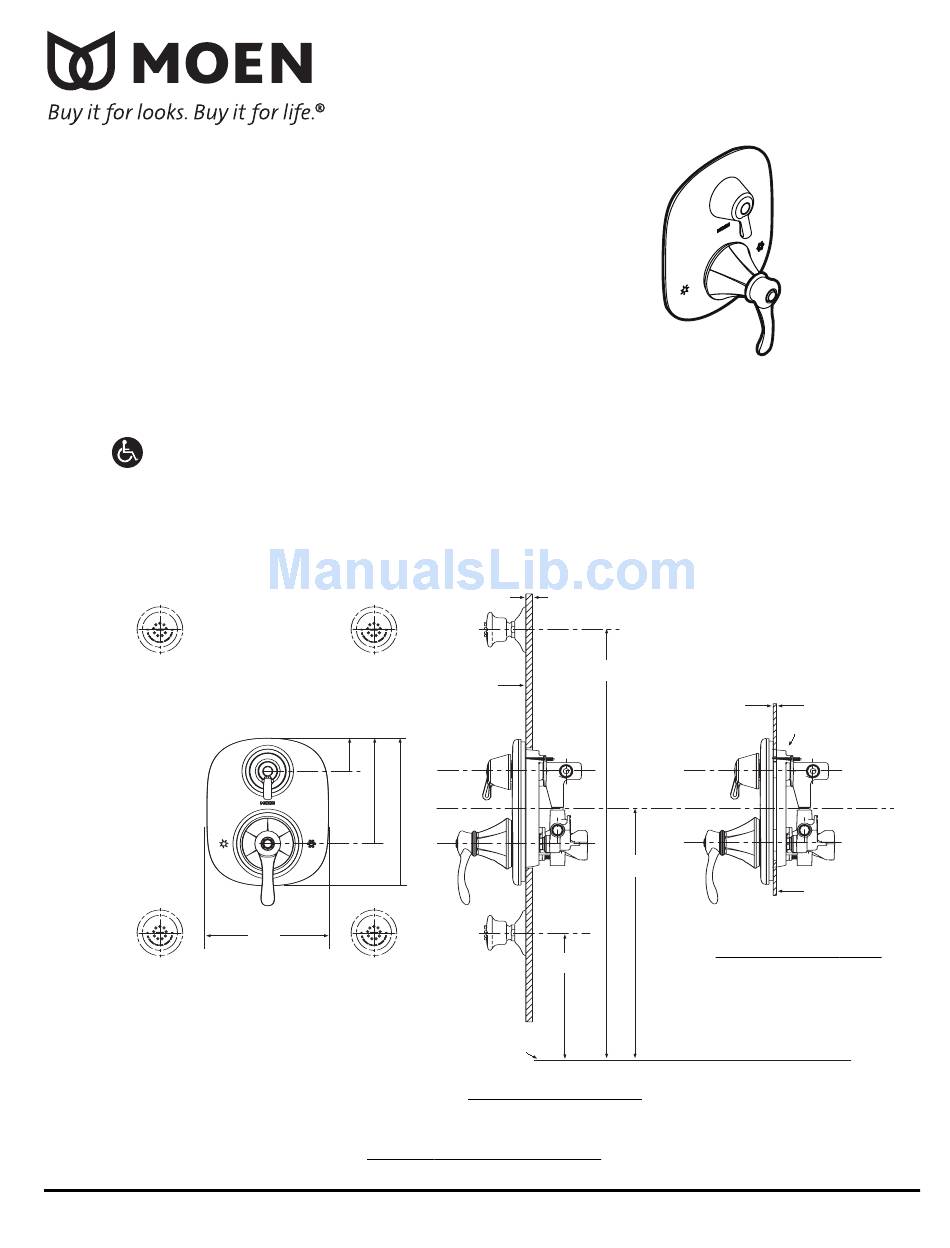

CRITICAL DIMENSIONS
S p e c i f i c a t i o n s
VESTIGE
with Built-In 3 Function Transfer Valve Trim
2" Max Wall
(51mm)
54"
(1372mm)
44"
(1142mm)
39"
(991mm)
Floor
THICK WALL APPLICATION
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
™
MOENTROL
Models: T4113 series
Valves: 3330 series,
3320 series
3/16"(typ)
(5mm)
Plaster
Ground
Plastic
Tub/Shower
Surround
THIN WALL APPLICATION
www.moen.com
®
