24 www.electrolux.com
Depth
Top oven capaci-
ty
Main oven ca-
pacity

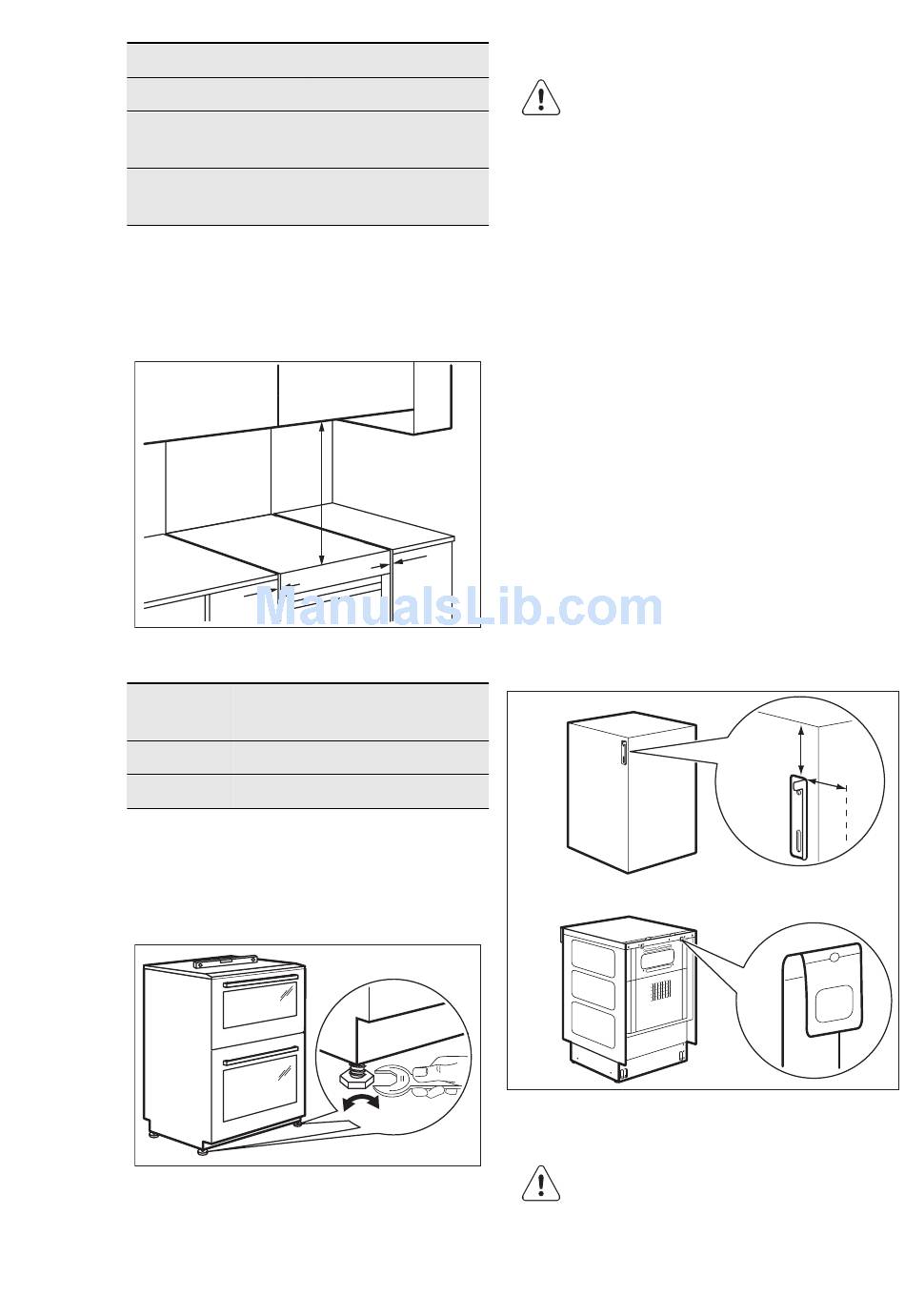

13.2 Location of the appliance
You can install your freestanding appli-
ance with cabinets on one or two sides
and in the corner.
Minimum distances
Dimen-
sion
A
B
13.3 Levelling
Use small feet on the bottom of appliance
to set same level of cooker top surface
with other surfaces
Dimensions
600 mm
40 l
79 l
B
A
A
mm
2
685
13.4 The anti-tilt protection
CAUTION!
You must install the anti-tilt pro-
tection (A+B). If you do not install
it the appliance can tilt.
Before you install anti-tilt protec-
tion, adjust the appliance to the
correct height.
The anti-tilt protection has two parts (A
+B). You can find the anti-tilt protection
(B) on right or left side of the rear wall of
the appliance (See fig. 1). You must install
the anti-tilt protection (A) on the wall. The
distance of the hole of the anti-tilt protec-
tion (A) from the floor is about 816 mm.
Make sure you install the anti-tilt protec-
tion (A) at the correct height. Screw it into
the solid material or use applicable rein-
forcement.
Check that the anti-tilt protection projects
minimum 20 mm into the hole in the back
of the appliance (B) when you push the
appliance (See fig. 2). If the space be-
tween the bench cupboards is greater
than the width of the appliance, you must
adjust the side measurement to centre
the appliance. Make sure that the surface
behind the appliance is smooth.
1
2
13.5 Electrical installation
WARNING!
Only a qualified and competent
person must do the electrical in-
stallation.
60 mm
50 mm
A
B
