Moen WATERHILL TS514 series Specifications
Moen single function flow valve trim specification sheet
Hide thumbs
Also See for WATERHILL TS514 series:
- Installation manual (9 pages) ,
- Installation instructions manual (7 pages) ,
- Instruction manual (6 pages)
Advertisement
Table of Contents
DESCRIPTION
• Metal construction with various finishes identified by suffix
• For use with S3600 3/4" volume control valve
OPERATION
• Lever style handle operation
STANDARDS
• Third party certified to meet CSA B125.1, ASME A112.18.1, and all
applicable requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects to the
original consumer purchaser
• 5 year warranty if used in commercial installations

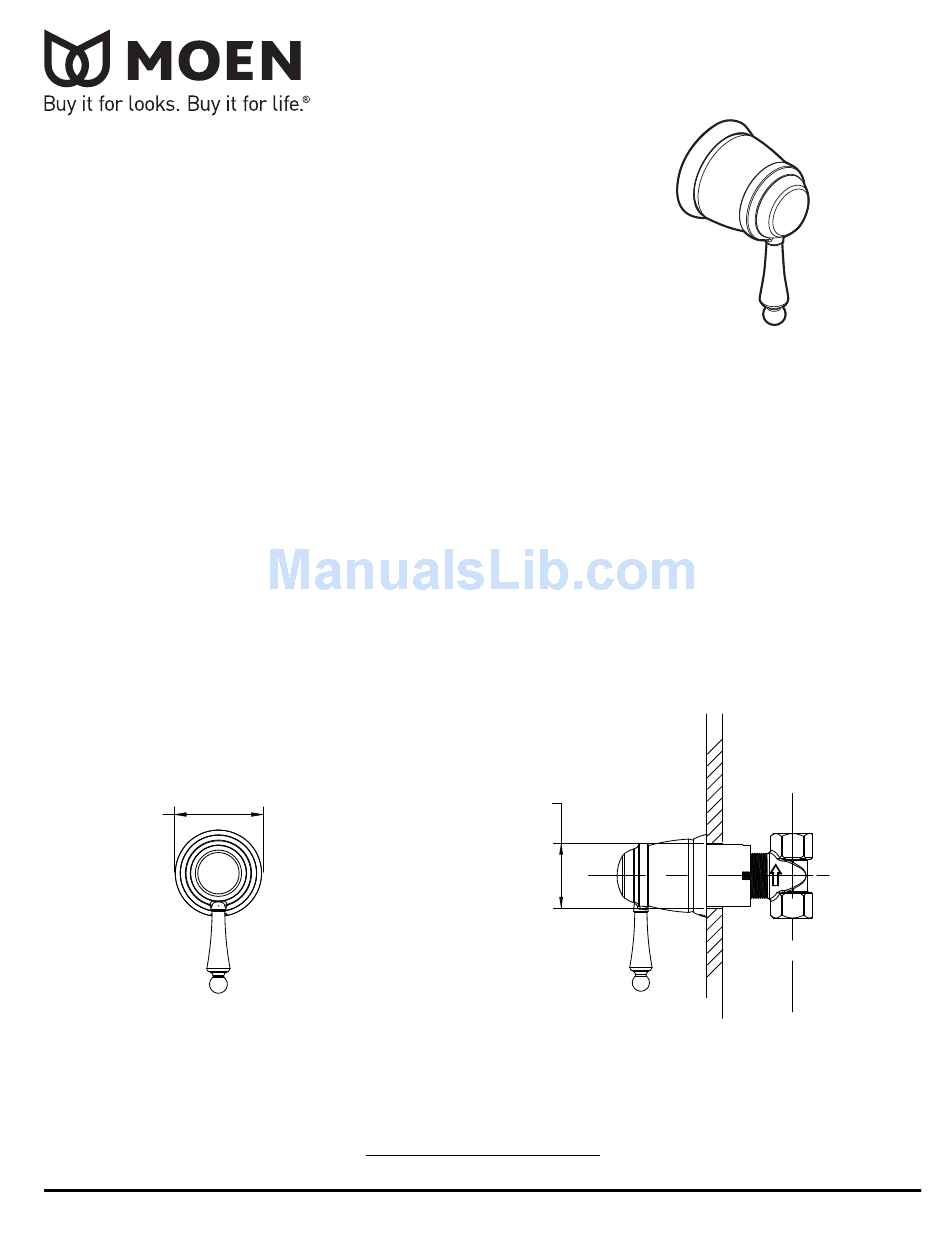

2-11/16"
(68mm)
Rev. 3/11
2-1/8"
(54mm)
WALL OPENING
CRITICAL DIMENSIONS
CRITICAL DIMENSIONS
(DO NOT SCALE)
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
S p e c i f i c a t i o n s
WATERHILL®
Single Function Flow Valve Trim
Models: TS514 series
Valve: S3600
