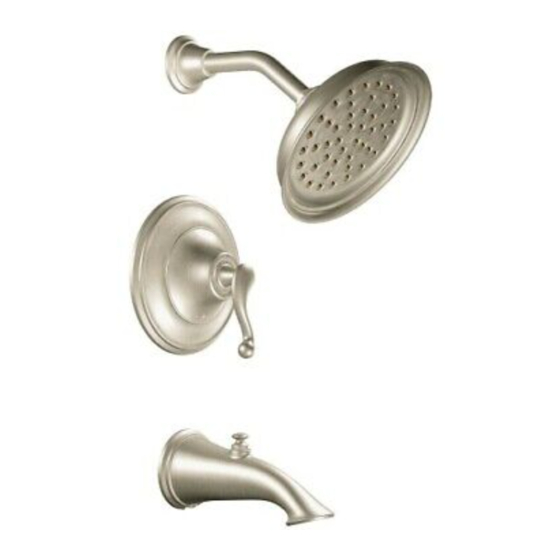

Posi-temp single-handle tub/shower (trim only)

Advertisement

Quick Links

DESCRIPTION

- Metal construction with various finishes identified by suffix
- Includes 7" rainfall showerhead, arm and flange
- For use with S932 1/2" CC valve

OPERATION

- Handle operates counterclockwise through a 270° arc with off at
6 o'clock and maximum hot at the 9 o'clock position. Shut off in
clockwise direction
- Adjustable temperature limit stop to control maximum hot
water temperature
- Pressure balancing mechanism maintains selected discharge
temperature to ± 3.6˚F (± 2˚C)

FLOW

- Showerhead is limited to 2.5 gpm max. (9.5 L/min)

CARTRIDGE

- 1222 cartridge design
- Nonmetallic/nonferrous and stainless steel materials
- Accommodates back to back installations

STANDARDS

- Third party certified to CSA B125, ASME A112.18.1M, ANSI A117.1,
ASSE 1016, and all applicable requirements referenced therein

ADA

-
for lever handle

WARRANTY

- Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser
- 5 year warranty if used in commercial installations
Valve Sold Separately
TS394sp: Rev. 10/07
7-1/2"
(190mm)
6-5/8"
(168mm)
3-3/8"
(86mm)
Floor Line

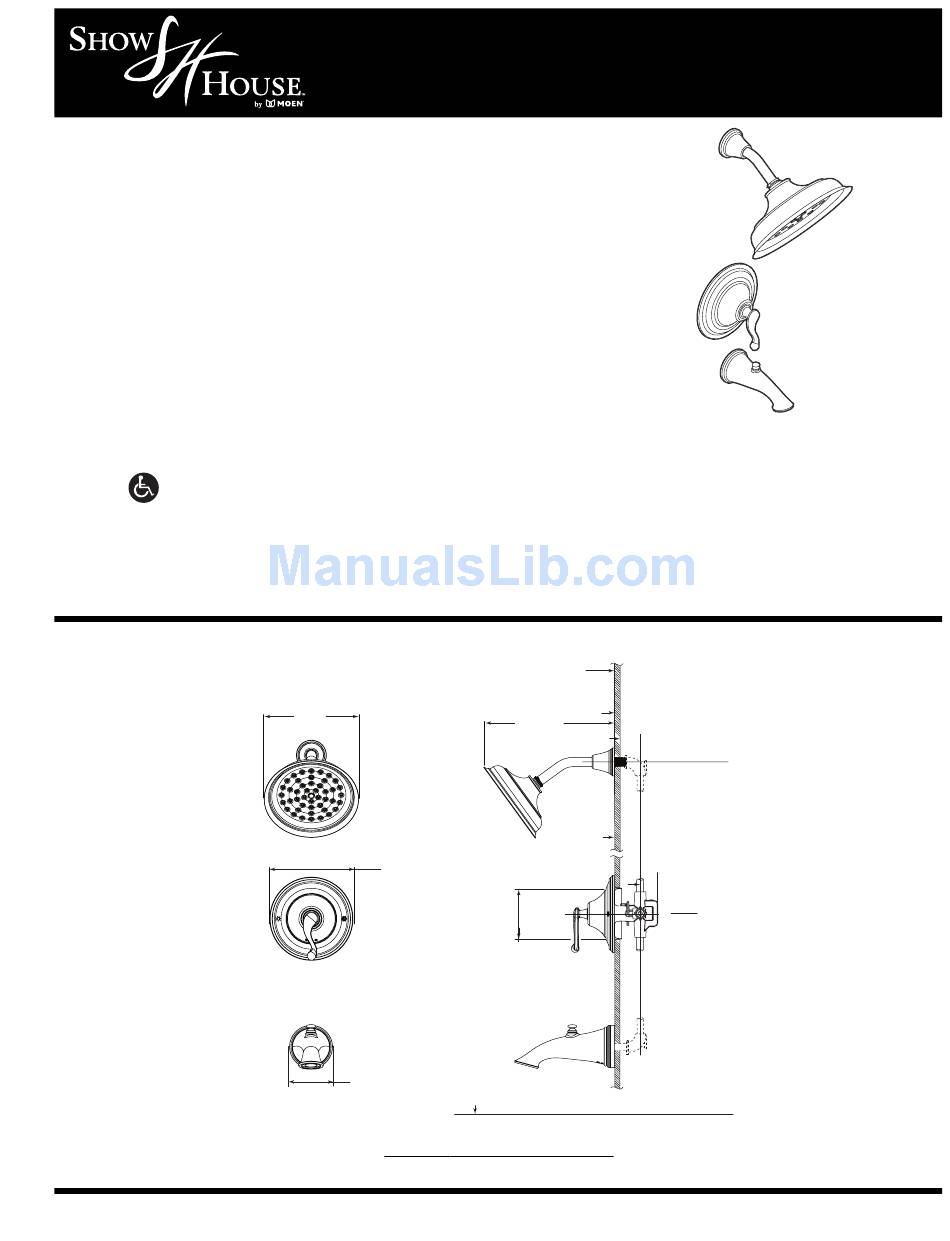

CRITICAL DIMENSIONS

(DO NOT SCALE)
Single-Handle Tub/Shower (Trim Only)
Models: TS390 series-valve trim only
Finished
Wall Line
11-1/4"
(286mm)
C L
4-1/2"
(114mm)
WALL OPENING
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

Specifications

SAVVY
POSI-TEMP
TS392 series-shower trim only
TS394 series-tub/shower trim
Valve: S932
www.moen.com
®
