DESCRIPTION
- Metal construction with various finishes identified by suffix
OPERATION
- Lever style handles
- Rotate hot side handle counterclockwise to open
and clockwise to close
- Rotate cold side handle clockwise to open and
counterclockwise to close
FLOW
- Hand shower meets 2.5 gpm max. (9.5 L/min)
STANDARDS
- Third party certified to CSA B125, ASME A112.18.1M,
and all applicable requriements referenced therin
- ADA
for lever handles
WARRANTY
- Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
- 5 year warranty if used in commerical installations
8-1/4" (210mm)
Rev. 6/08
3"
(76mm)
6-7/8"
(175mm)
HANDLE
ESCUTCHEON DIA.
2-1/4" (57mm)
CRITICAL DIMENSIONS

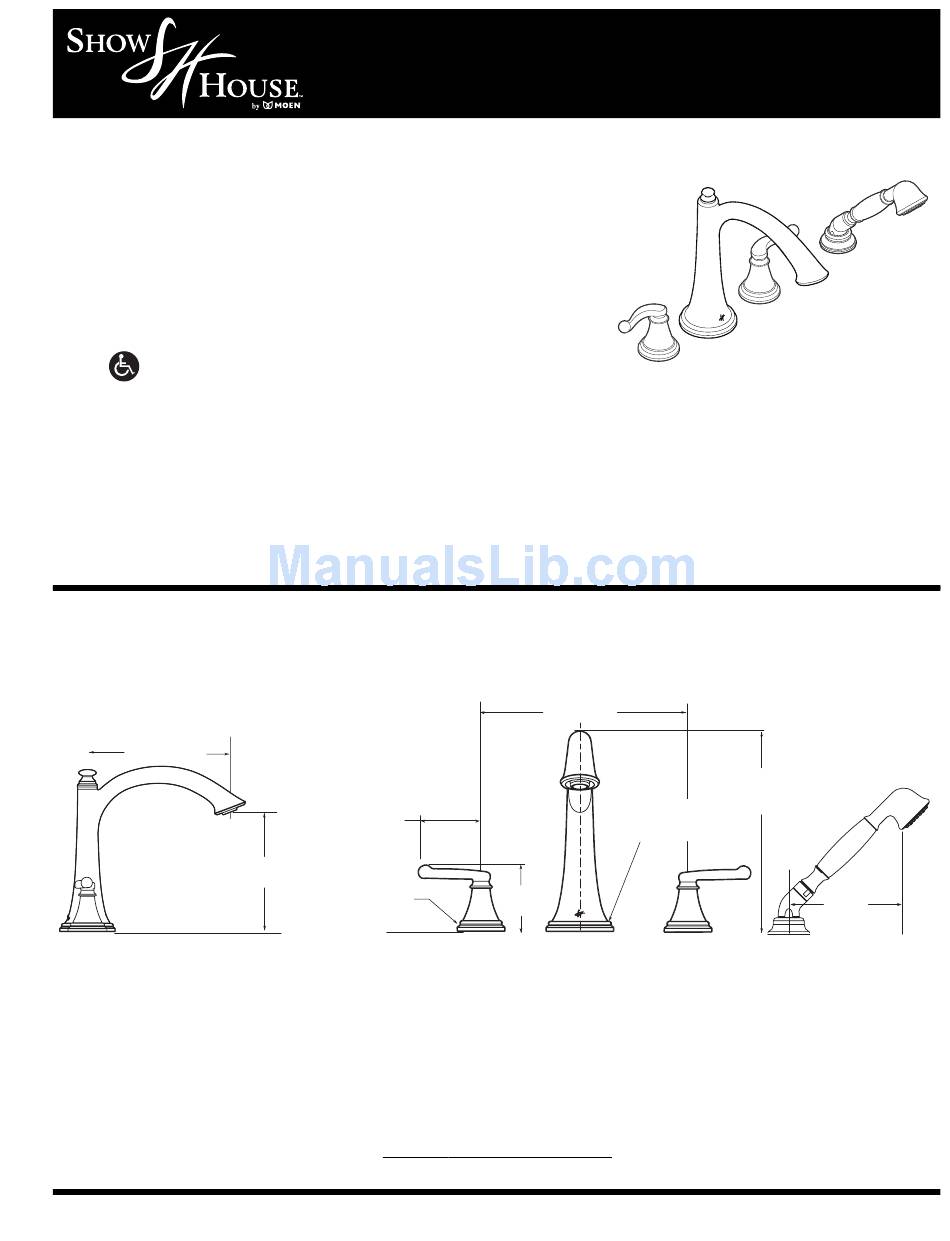

Two-Handle Roman Tub Faucet Trim
10" (254mm) MIN
CENTERS
SPOUT
ESCTUCHEON DIA.
3-3/16" (81mm)
3-1/8"
(79mm)
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
Specifications
SAVVY™
with Integral Diverter
Models: TS294 series
Valves: S924, S9204
9-9/16"
(243mm)
6"
(152mm)
www.moen.com
