DESCRIPTION
• Metal construction with various finishes identified by suffix
• Includes 7" Rainshower showerhead, arm and flange
OPERATION
• Flow lever operates counterclockwise through a 90 degree arc with off
at 6 o'clock and maximum flow at the 3 o'clock position. Shut off in clockwise
direction
• Temperature lever operates through a 340 degree arc with maximum cold at
full clockwise rotation and maximum hot at full counterclockwise rotation
• Safety stop preset temperature at 105 degrees F ( 41degrees C)
• Safety stop override allows maximum temperature at 120 degrees F
(49 degrees C)
• Factory established temperature range from 70 degrees F (21 degrees C)
to 120 degrees F (49 degrees C)
FLOW
• Showerhead is limited to 2.5 gpm max. (9.5 L/min)
CARTRIDGE
• 130156 thermostatic cartridge design with non metallic/nonferrous materials
• 130157 volume ceramic disc cartridge design
STANDARDS
• Third party certified to CSA B125.1, ASME A112.18.1, and all applicable
requirements referenced therein including ASSE1016
• ADA
for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
M•pact™ System
Rev. 3/11
7"
(177mm)
2-1/4"
(57mm)
wall opening
2-11/16"
(68mm)
5-1/4"
(133mm)
wall opening
6-5/8"
(168mm)

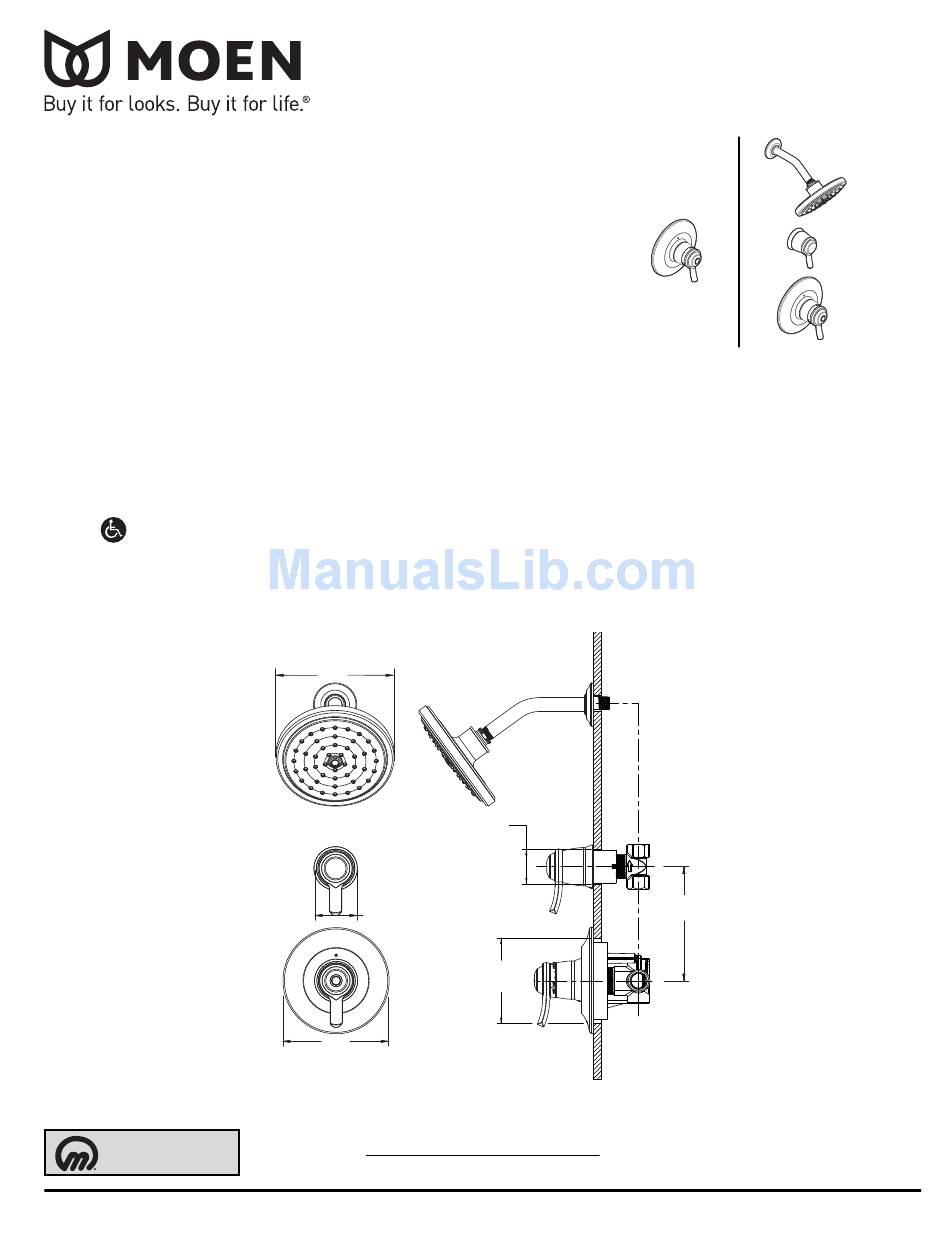

SHOWER ONLY APPLICATION
CRITICAL DIMENSIONS
(DO NOT SCALE)
S p e c i f i c a t i o n s
ExactTemp® 3/4" Thermostatic
Shower Trim
Models: TS31710 Series- Valve trim only
TS31712 Series- Shower trim only
Valves: S3371 - Thermostatic
S3600 - Volume
8" (203mm) Recommended
6" (152mm) MIN.
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
FINA™
www.moen.com
