Moen LEVEL T6110 Series Specifications

DESCRIPTION
• Hydrolock™ quick connect system
• Metal construction with various finishes identified by suffix
• 1/2" IPS connections
OPERATION
• Lever style handles
• Maximum handle rotation angle is 90˚ to full on for either handle
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counterclockwise to close)
• Includes hot and cold temperature indicators
FLOW
• Flow is limited to 1.5 gpm max (5.7L/min) at 60 psi, for products made
before October 2008 flow is limited to 2.2 gpm max (8.3 L/min)
CARTRIDGE
• 1224 cartridge design
• Nonmetallic, nonferrous and stainless steel material
STANDARDS
• Third party certified to WaterSense,® CSA B125.1, ASME A112.18.1, and
all applicable requirements referenced therein including NSF61/9
• Certified to ANSI/NSF 61/9
• Contains no more than 0.25% weighted average lead content
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
• ADA for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
6-15/16"
(177mm)
QUICK CONNECT
HOSE ASSEMBLY
Rev. 3/11
8"
(204mm)
1-1/2"
(40mm)
2-11/16"
(69mm)
2"
ÿ ÿ 51 51
(51mm)
Lift
Rod

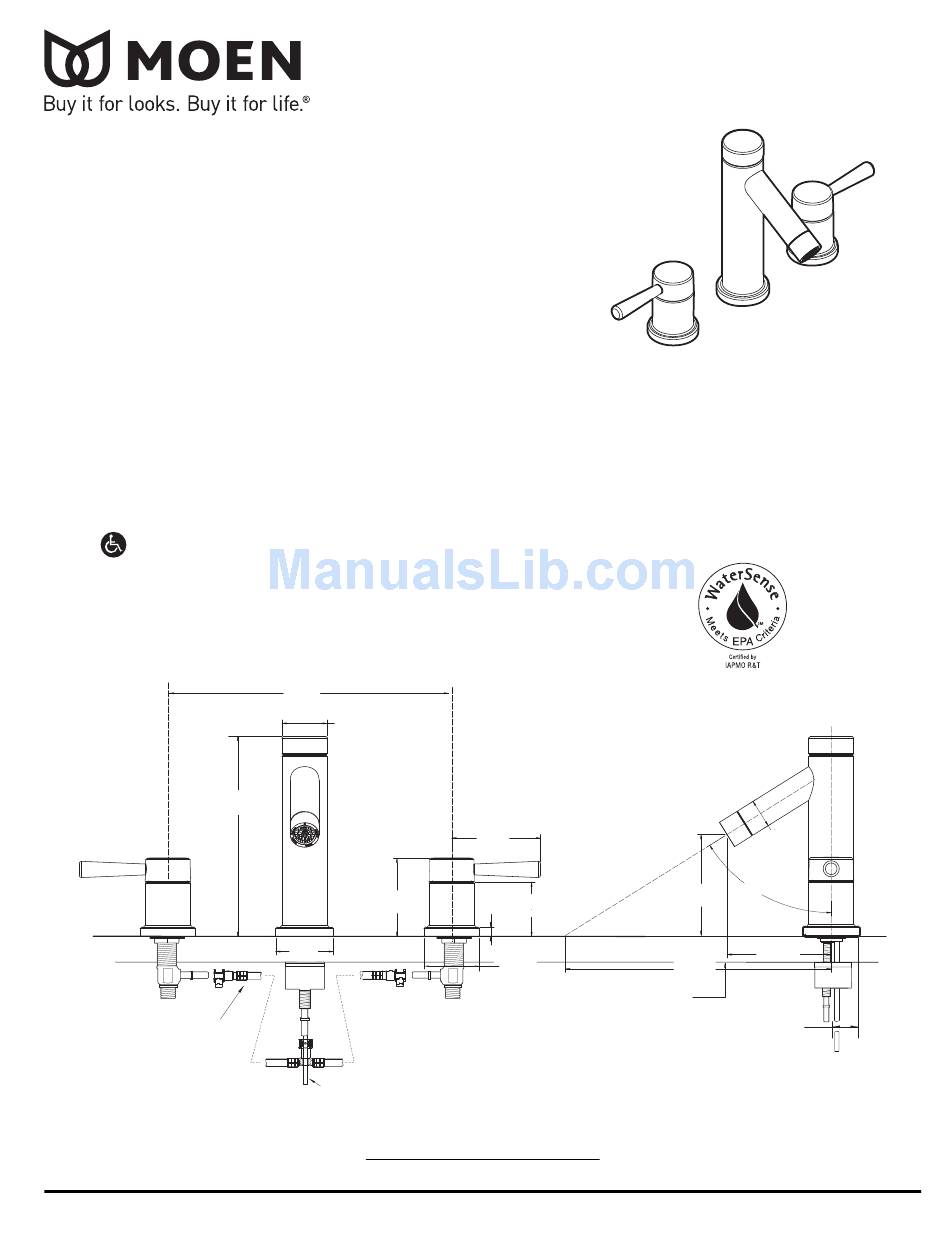

CRITICAL DIMENSIONS
(DO NOT SCALE)
S p e c i f i c a t i o n s
Two Handle Widespread
Lavatory Faucet Trim
Models: T6110 series
NOTE: THIS FAUCET IS DESIGNED TO BE INSTALLED
THRU 3 HOLES, 1-1/8" MIN. DIA.
3-1/16"
(78.3mm)
5/16" 1-7/8"
(8.5mm) (48mm)
1-15/16"
(49mm)
2-1/4" (57mm) MAX.
DECK THICKNESS
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
LEVEL™
Valve: 9000, 69000
1"
(25.4mm)
3-1/2"
58˚ 5 8 ? 5 8 ?
(90mm)
3-5/8"
9-3/16"
(92mm)
(236mm)
6 2 3 6 2 3
1-11/32"
(34mm)
www.moen.com
