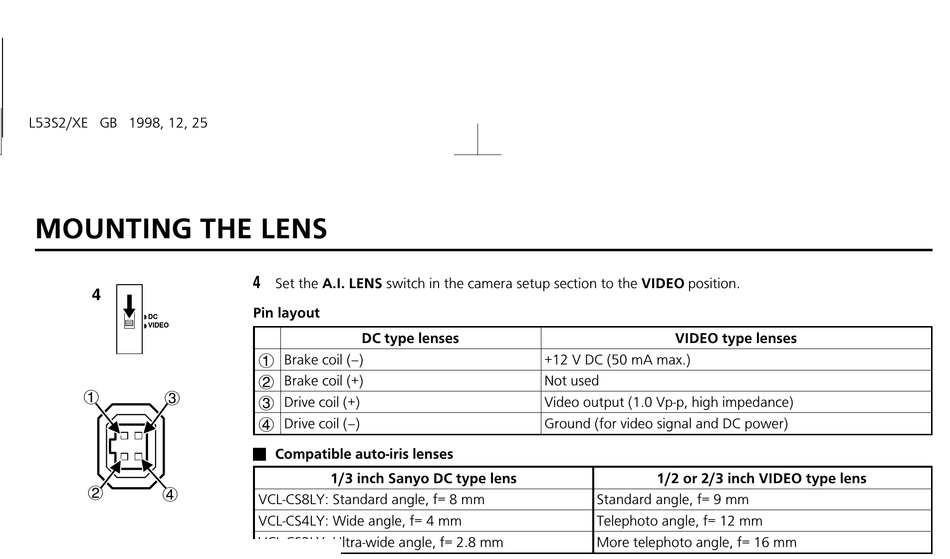

MOUNTING THE LENS
4
DC
VIDEO
1
3
2
4
4
Set the A.I. LENS switch in the camera setup section to the VIDEO position.
Pin layout
DC type lenses
1
Brake coil (–)
2
Brake coil (+)
3
Drive coil (+)
4 Drive coil (–)
Compatible auto-iris lenses
1/3 inch Sanyo DC type lens
VCL-CS8LY: Standard angle, f= 8 mm
VCL-CS4LY: Wide angle, f= 4 mm
VCL-CS2LY: Ultra-wide angle, f= 2.8 mm
If using a VIDEO type auto-iris lens
•
Set the ALC and LEVEL controls on the lens to adjust the iris. Normally the ALC volume should be turned
all the way to Av (Average).
• Depending on the type of lens used, the lens may not perform properly. In such a case, adjust the LEVEL
volume on the lens casing to correct.
VIDEO type lenses
+12 V DC (50 mA max.)
Not used
Video output (1.0 Vp-p, high impedance)
Ground (for video signal and DC power)
1/2 or 2/3 inch VIDEO type lens
Standard angle, f= 9 mm
Telephoto angle, f= 12 mm
More telephoto angle, f= 16 mm
