CONNECTIONS

(A)
1
(Video signal connections)
: VIDEO IN
: VIDEO OUT
9
English

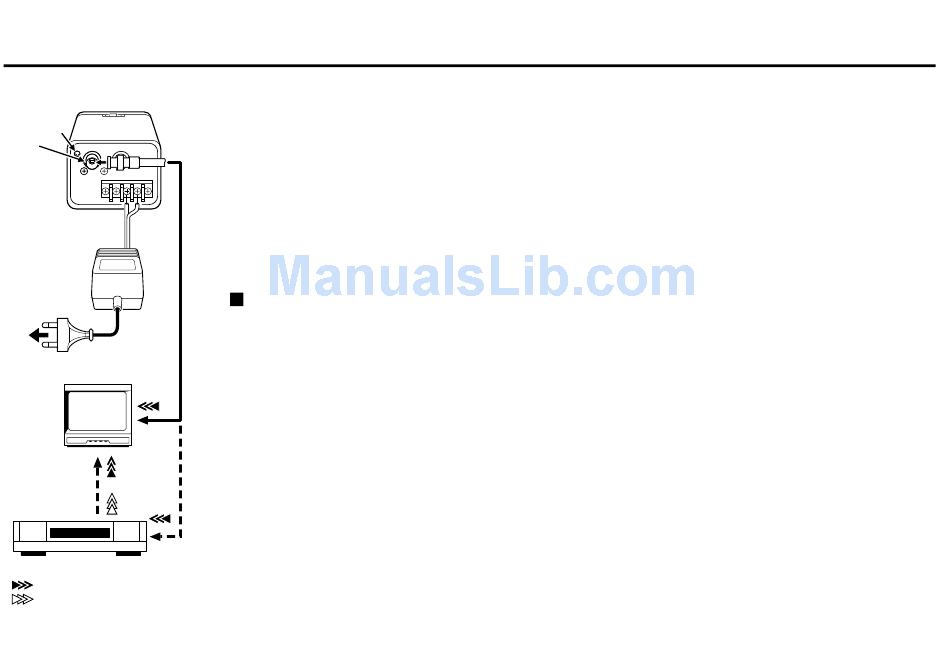

Basic connection for monitoring or recording
The peripheral devices (VCR, monitor, lens, etc.) and cables are sold separately.
1
Make the video signal connection between the camera and the monitor or time lapse VCR.
2
Insert the plug of this power cord into a wall outlet.
The POWER indicator (A) will light. Adjust the picture on the monitor using the Brightness and Contrast
controls.
Note:
When installing the camera, use metal brackets to fix the AC adaptor. Then attach it firmly using a metal strap.
Coaxial cable type and maximum length
Cable type RG-59U (3C-2V), 250 m maximum.
Cable type RG-6U (5C-2V), 500 m maximum.
Cable type RG-11U (7C-2V), 600 m maximum.
CAUTION:
The RG-59U type cable should not be run through electrical conduits or through the air.
Using CCTV/Video-grade coaxial cable.
