DESCRIPTION
• Metal construction with various finishes identified by suffix
• Includes metal pop-up type waste assembly
• Includes optional 3 hole deck plate (escutcheon)
• Flexible supplies with 3/8" compression fittings
OPERATION
• Pivot action lever style handle
• Temperature controlled by 100° arc of handle travel
FLOW
• Aerator is limited to 1.5 gpm (5.7 L/min) at 60 psi
CARTRIDGE
• 1255™ Duralast™ cartridge for Single-Handle Faucets
STANDARDS
• Third party certified to WaterSense,® CSA B125.1, ASME A112.18.1,
NSF61/9, ICC A117.1, and all applicable requirements referenced
therein
• Third party certified to comply with WaterSense® High Efficiency
Bathroom Sink Faucet Specification
• Contains no more than 0.25% weighted average lead content
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
• ADA
for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
OPTIONAL ESCUTCHEON
6" X 2-1/2"
(152mm) X (64mm)
2-1/2"
(64mm)
MAX.
20"
(508mm)
Rev. 3/11
6-5/8"
(168mm)
4-7/8"
(124mm)
5/8"
(16mm)
5-1/16"
(129mm)

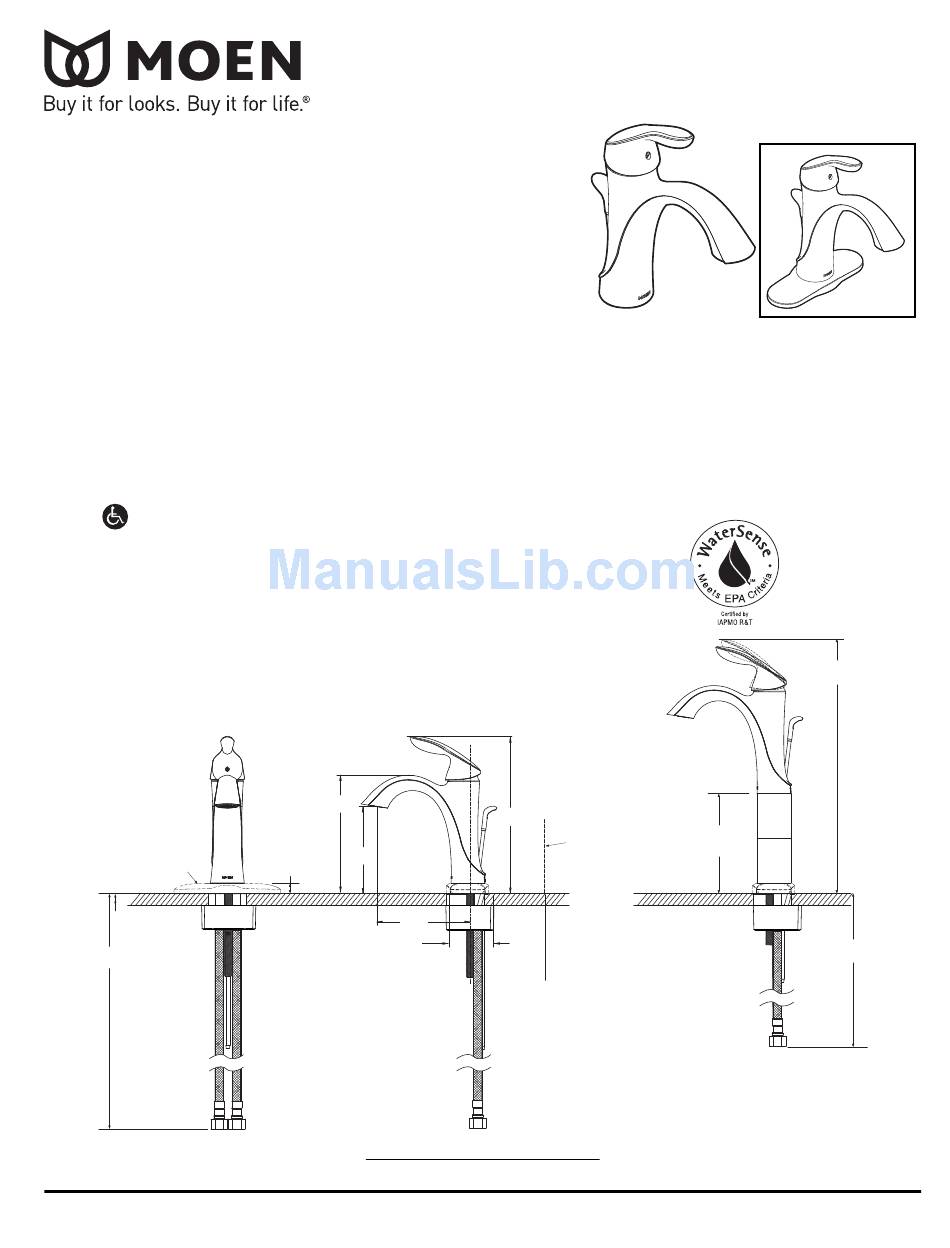

CRITICAL DIMENSIONS
(DO NOT SCALE)
S p e c i f i c a t i o n s
Single-Handle Lavatory Faucet
NOTE: THIS FAUCET IS DESIGNED TO BE
INSTALLED THRU 1 HOLE, 1-1/8" MIN. DIA.
* USE A1717 EXTENSION KIT FOR VESSEL
SINK APPLICATIONS
8-3/4"
(222mm)
**5-5/8" (143mm)
Back
Vessel Extension x2
Splash
2-1/2" min
for lift rod
operation
2-1/2"
(64mm)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
EVA
™
Model: 6400
14-13/16" (376mm)
OPEN POSITION
15"
(381mm)
www.moen.com
