Moen BRANTFORD POSI-TEMP T2152 Specifications

FAUCET DESCRIPTION

• Metal construction with chrome plated, LifeShine®
brushed nickel or oil rubbed bronze finish
• Includes showerhead, arm and flange

OPERATION

• Handle operates counterclockwise through a 270˚ arc
with off at 6 o'clock and maximum hot at the 9 o'clock
position. Shut off in clockwise direction
• Adjustable temperature limit stop to control maximum
hot water temperature
• Pressure balancing mechanism maintains selected
discharge temperature to ± 3°

FLOW

• Showerhead limited to 2.5 gpm max. (9.5 L/min)

CARTRIDGE

• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations

STANDARDS

• Third party certified to meet CSA B-125, ASME
A112.18.1M, ANSI A117.1 and all applicable requirements
referenced therein

WARRANTY

• Lifetime limited warranty against leaks, drips and finish
defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
3-1/2"
(89mm)
7" (178mm)
ESCUTCHEON
DIAMETER
7"
(178mm)
MIN
HOT COLD
INLET INLET
M Pact™ System
•
Rev. 2/07
2" CC (51mm)
1-7/8" IPS (48mm)
FACE OF STUD
MAX WALL
1/2" MIN. CC (13mm)
FINISHED WALL LINE
5/8" MIN. IPS (16mm)
7-13/16"
(199mm)
2-1/2" MAX. (63mm)
3-7/8" (99mm)
4-1/2" (114mm) WALL OPENING
FLOOR
TUB RIM

THICK WALL APPLICATION

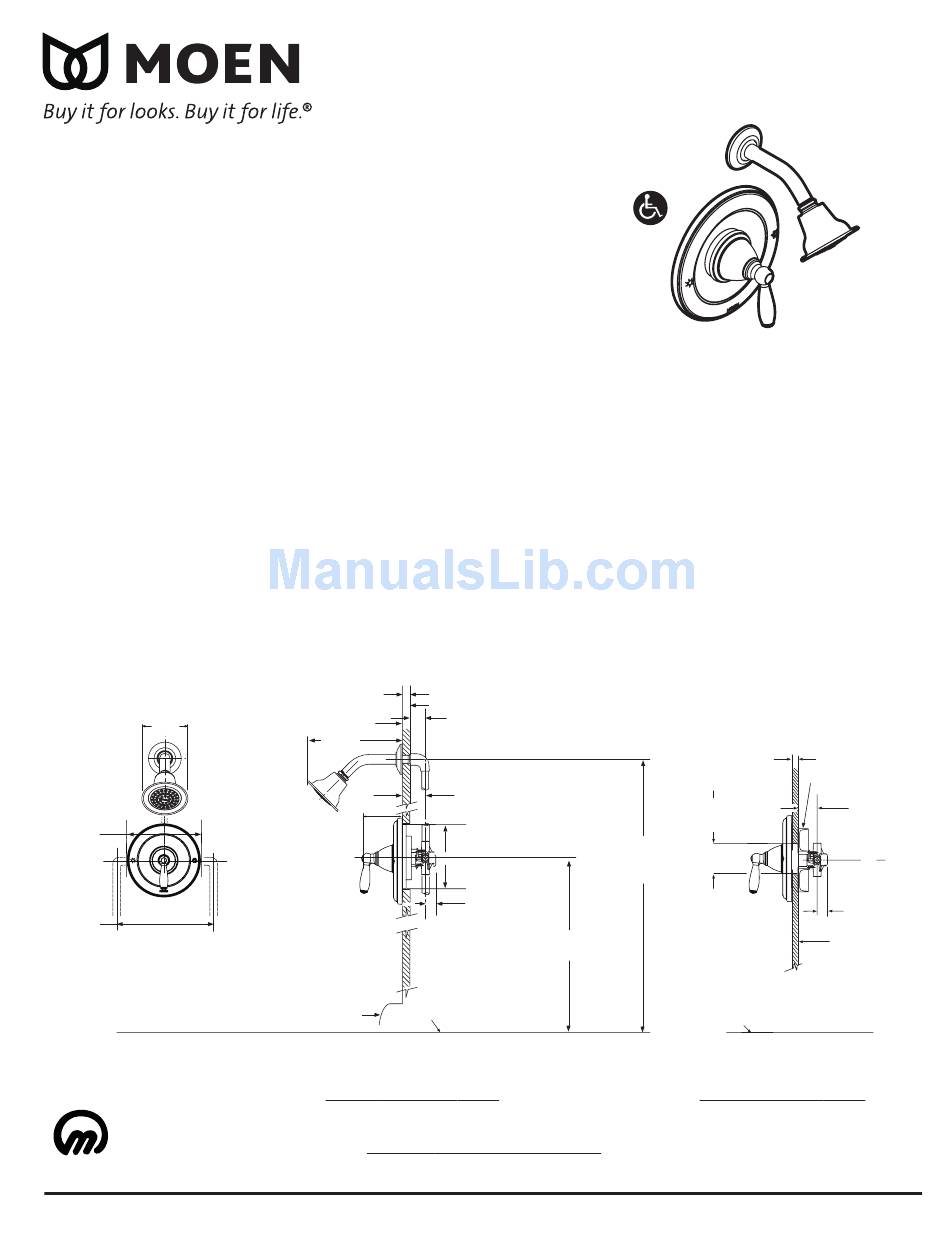

CRITICAL DIMENSIONS

(DO NOT SCALE)
S p e c i f i c a t i o n s
ADA
BRANTFORD™ POSI-TEMP
Single-Handle Shower (Trim Only)
Models: T2152, T2152BN, T2152ORB
T62152 (Bulk pack -12 per carton)
6'-6"
L C
(1981mm)
1-3/8" (35mm)
45" (1143mm)/
48" (1219mm)-SHOWER
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
3/16" (typ) (5mm)
3-1/2" (89mm) MAX.
PLASTER GROUND
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
1 3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
FLOOR LINE

THIN WALL APPLICATION

www.moen.com
®
1 1/2"
(38mm)
L C
