Moen BANBURY 84913 Illustrated Parts List

Moen BANBURY 84913 Illustrated Parts List

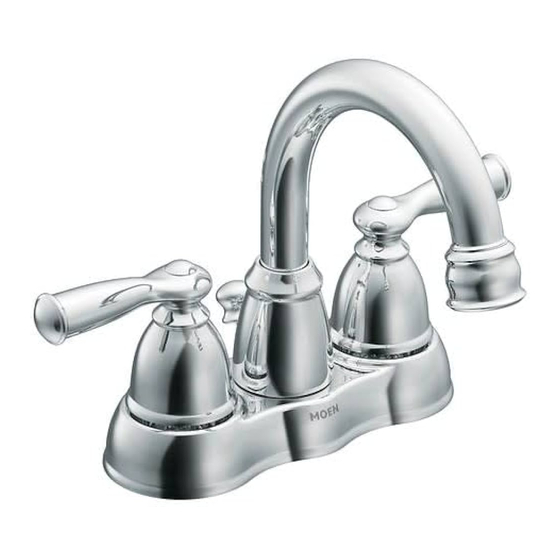

Two handle lavatory faucet

Advertisement

Quick Links

Order by Part Number
Handle Cap Kit
131099
Chrome
131099CBN Classic Brushed Nickel
Handle Kit (Cold)
142060
Chrome
142060CBN
Classic Brushed Nickel
(Hot)
142059
Chrome
142059CBN
Classic Brushed Nickel
Cartridge Nut
97535
Replacement Cartridge
1224
Escutcheon Nut
12539
Gasket
142061
Hardware Kit (x2)
145665
Rev. 4/11
I l l u s t r a t e d Pa r t s
Lift Rod
141316
Chrome
141316CBN Classic Brushed Nickel
Spout Kit
142052
142052CBN Classic Brushed Nickel
Spout Hub Kit
142072
Chrome
142072CBN Classic Brushed Nickel
Waste Plug
12314
BANBURY
Two Handle Lavatory Faucet
MODEL
TYPE
84913
Lever
84913CBN
Lever
Chrome
Aerator
Chrome
142056
142056CBN Classic Brushed Nickel
Chrome
Waste Assembly
139246
Chrome
139246CSL Classic Stainless
USE ON DECKS < 1/4" (6mm)
Thin Deck
Spacer Kit
146936
TO ORDER PARTS CALL: 1-800-BUY-MOEN
®
FINISH
Chrome
Classic Brushed Nickel
USE ON DECKS > 1-1/8" (29mm)
Deck
Extension
Kit
100818
www.moen.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the BANBURY 84913 and is the answer not in the manual?

Questions and answers

Bruce E Crocker
February 11, 2025

How do I remove fawcett handle on Banbury CA 84913 SRN so as to be able to change the leaking cartridge?

1 comments:
Mr. Anderson
February 12, 2025

To remove the faucet handle on the Moen Banbury 84913 and change the leaking cartridge, follow these steps:

1. Turn Off Water Supply – Shut off the water supply valves under the sink.
2. Remove Handle Cap – If present, use a flathead screwdriver to carefully pry off the handle cap.
3. Unscrew Handle – Use a Phillips screwdriver or hex wrench (depending on the handle type) to loosen the screw securing the handle.
4. Lift Off Handle – Gently pull the handle off the faucet.
5. Remove Cartridge Nut – Use pliers or a wrench to unscrew the cartridge nut (part #97535).
6. Extract Cartridge – Pull the old cartridge out and replace it with a new one (part #1224).
7. Reassemble Faucet – Reverse the steps to reattach the handle and turn the water supply back on.

Ensure the cartridge is properly aligned before securing it.
