DESCRIPTION
•
Metal construction with various finishes identified by suffix
•
Pressure balancing cycle valve design with an adjustable
temperature limit stop
•
1/2" IPS connections
•
Includes valve, tub spout, showerhead, arm and flange
OPERATION
•
Lever style handle
•
Handle operates counterclockwise through a 270˚ arc with off
at 6 o'clock and maximum hot at the 9 o'clock position. Shut off
in clockwise direction
•
Adjustable temperature limit stop to control maximum hot
water temperature
•
Pressure balancing mechanism maintains selected discharge
temperature to ± 2°
FLOW
•
Showerhead is limited to 2.5 gpm (9.5 L/min)
CARTRIDGE
•
1222 cartridge design
•
Nonmetallic/nonferrous and stainless steel materials
•
Accommodates back to back installations
STANDARDS
•
Third party certified to: CSA B-125.1, ASME A112.18.1 ,ICC A117.1
and all applicable requirements referenced therein
•
ADA
for lever handle
WARRANTY
•
Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser
•
5 year warranty if used in commercial installations
7.165" (182mm)
ESC. DIAM.
2"CC (51mm)
1-7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
4-1/2"
(114mm)
DIRECTION
OF HANDLE
ROTATION
2-3/4" C.C.
(70mm)
FLOOR LINE
CRITICAL DIMENSIONS
S p e c i f i c a t i o n s

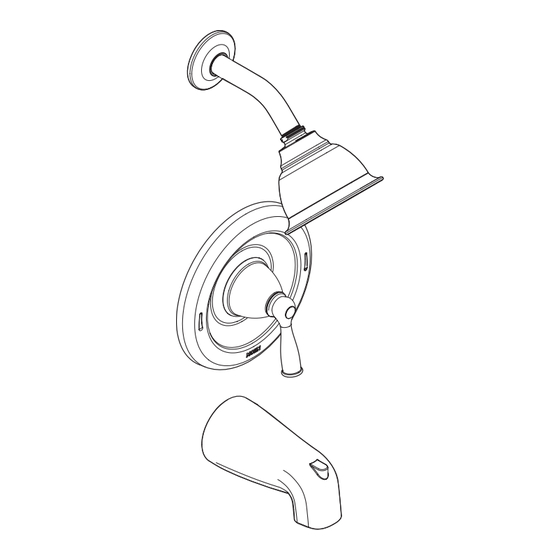

Single-Handle Tub/Shower Valve
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
2-1/2" MAX. (63mm)
6'-6"
(1981mm)
L C
NOMINAL
1-3/8" (35mm)
3-1/2" (89mm) MAX.
SHOWER
2-1/4" (57mm) MIN.
45" (1143mm)/
48" (1219mm)
32" (813mm)
TUB/SHOWER
AND TUB ONLY
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
®
BANBURY
Models: 82910 series
3/16"(typ) (5mm)
PLASTER GROUND
DIAMETER
WALL
OPENING
PLASTIC
TUB/SHOWER
SURROUND
FLOOR LINE
www.moen.com
1-1/2" MAX.
(38mm)
L C
1-3/8"
(35mm)
