DESCRIPTION
- Metal construction with LifeShine® brushed nickel finish
- For installations from 6" (152mm) to 16" (406mm) centers
- 1/2" IPS connections will accept standard ball nose connection
for 3/8" tubing
- Diverter valve includes an integral vacuum breaker
- Includes valve
OPERATION
- Lever style handles, 180° rotation
- Rotate hot side handle counterclockwise to open and clockwise to close
- Rotate cold side handle clockwise to open and counterclockwise to close
- Water flow is diverted by turning the knob counterclockwise for fill and
clockwise for rosetta spray
CARTRIDGE
- 94831 diverter cartridge
- 1224 cartridge design with nonmetallic/nonferrous
and stainless steel material
STANDARDS
- Third party certified to CSA B125, ASME A112.18.1M, and all
applicable requirements referenced therein
WARRANTY
- Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
- 5 year warranty if used in commercial installations
2-7/8"
(72mm)
3-1/4"
(83mm)
N N O O T T E E : : MINIMUM DIA. HOLES FOR INSTALLATION
Diverter Valve = 1" (25mm)
Handle Valves = 1-1/8" (29mm)
Spray Nozzle = 5/8" (16mm)
Lift Rod Escutcheon = 1/2" (13mm)
6" (152mm) MIN.
16" (406mm) MAX.
3" (76mm) MIN.
DIVERTING
MECHANISM
2-1/2"
2"
(64mm)
(51mm)
CRITICAL
LEVEL
HOT
INLET
CRITICAL DIMENSIONS
(DO NOT SCALE)
NOTE:
Cannot be used with Non Rim Flush Bidet Fixtures
5-1/8"
(130mm)
1-1/4" (32mm) MAX.
DECK THICKNESS
7/8"
(22mm)
MAX.
COLD
INLET
FLEXIBLE
CONNECTORS
LIFT ROD
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

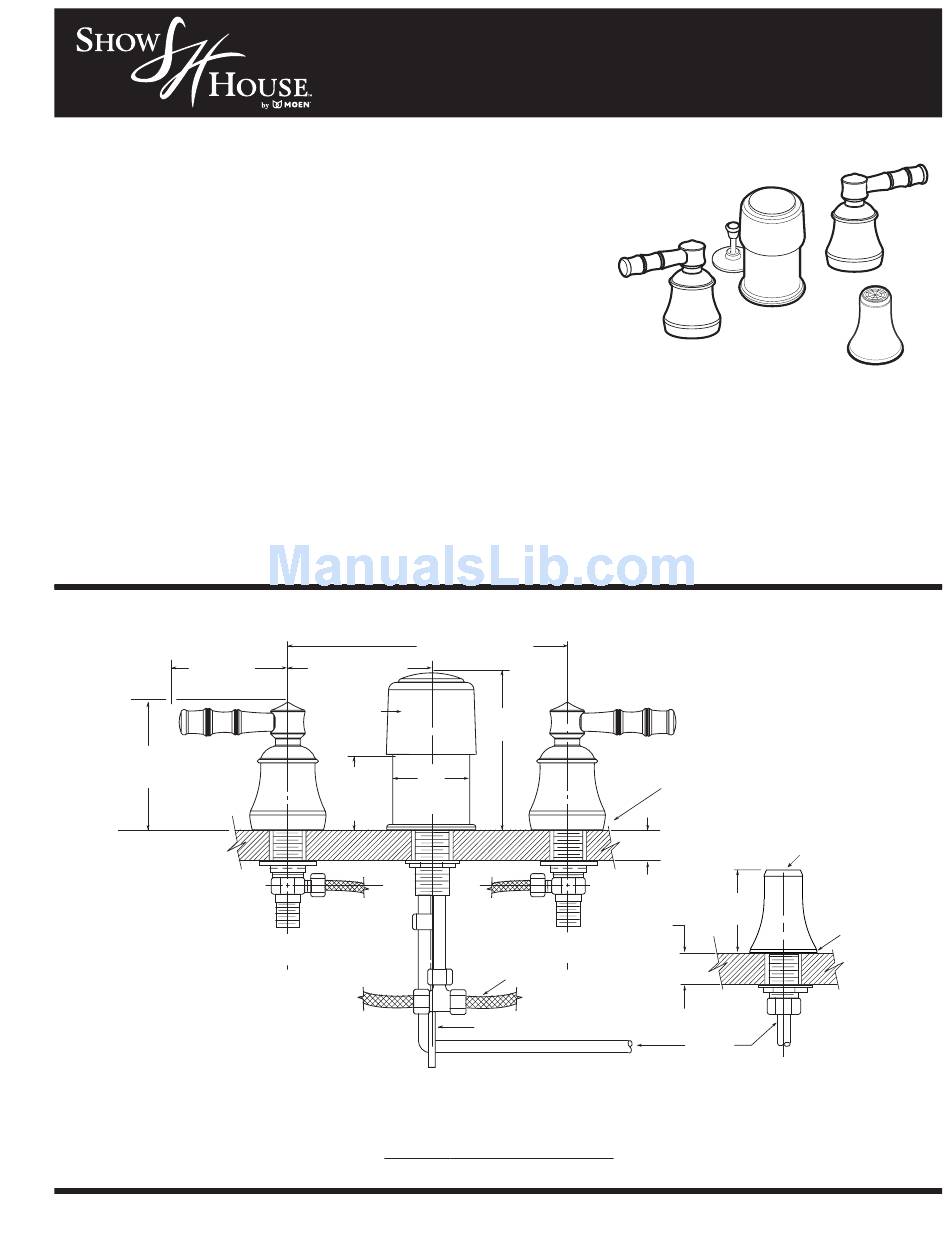

Specifications
Bamboo™
Two-Handle Bidet Faucet
Model: S8815BN
HANDLE
ESCUTCHEON DIA.
1-7/8" (47mm)
SPRAY
NOZZLE
2-1/8"
(53mm)
3/8" DIA.
SUPPLY
TUBE
www.moen.com
Nozzle
Diameter
1-5/8"
(42mm)
