FAUCET DESCRIPTION
•
Metal construction with various finishes identified by suffix
•
1/2" IPS connections
•
Includes pop-up type waste assembly
OPERATION
•
Pivot action lever style handle
•
Temperature controlled through 180˚ degree arc of handle travel
FLOW
•
Aerator is limited to 1.5 gpm (5.7 L/min)
CARTRIDGE
•
1225 cartridge design
•
Nonmetallic/nonferrous and stainless steel materials
•
Can accommodate reverse piping and back to back installations
STANDARDS
•
Third party certified to meet CSA B-125.1, ASME A112.18.1,
ICC A117.1 and all applicable requirements referenced therein
•
Certified to ANSI/NSF 61/9
•
Complies with California Proposition 65 and with the Federal Safe
Water Drinking Act
ADA
•
for lever handle
WARRANTY
•
Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser
•
5 year warranty if used in commercial installations
1-3/4"
(45mm)
MAX.
6-1/8" (154mm)
(ESCUTCHEON WIDTH)
TOP OF
MOUNTING
SURFACE
SPACER
PROVIDED –
DISCARD IF
MOUNTING
SURFACE IS
LIFT
MORE THAN
ROD
3/4" THICK
4-1/2"
(114mm)

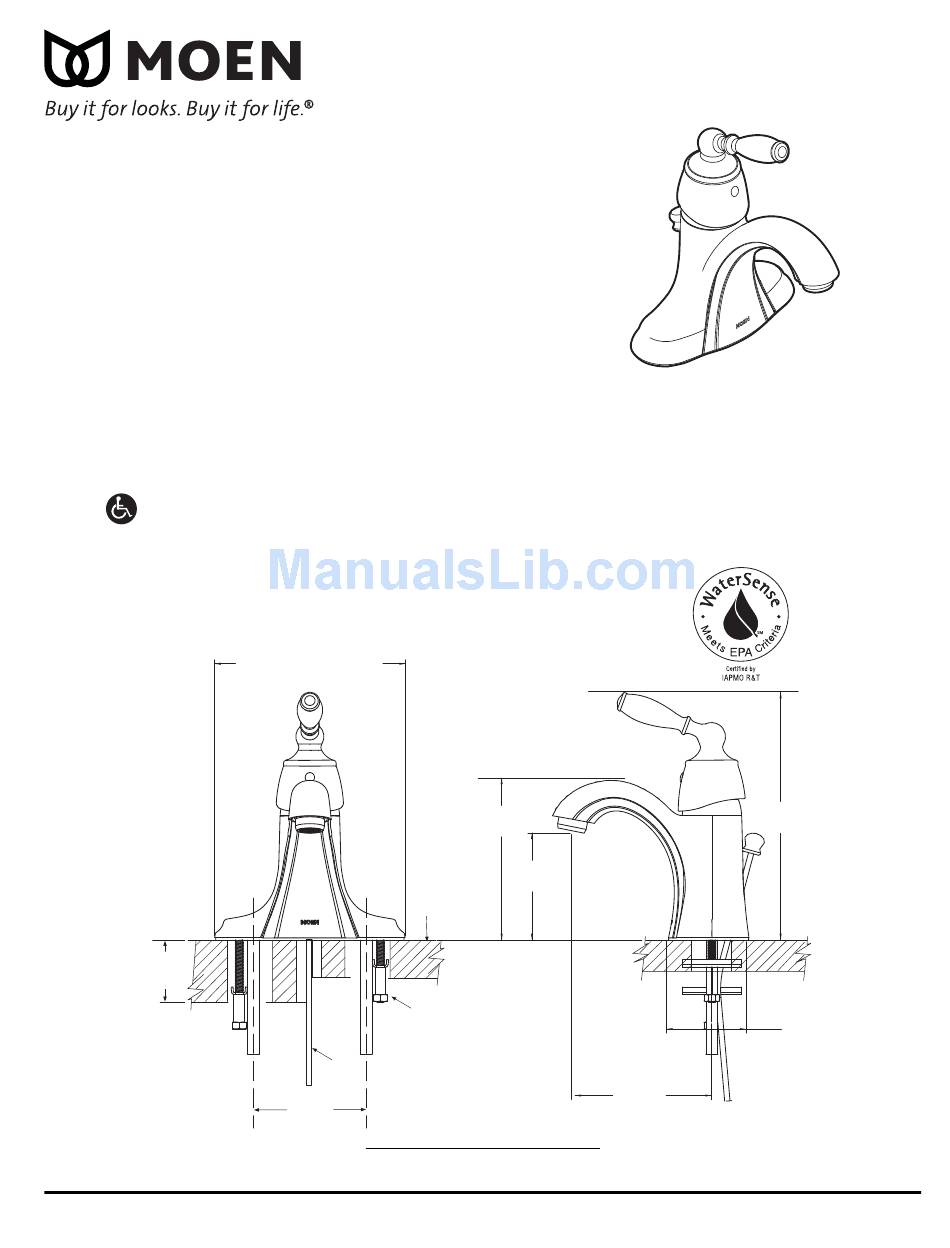

CRITICAL DIMENSIONS
S p e c i f i c a t i o n s
Single-Handle Lavatory Faucet
with Plastic Waste Assembly
NOTE: THIS FAUCET IS DESIGNED TO BE INSTALLED
THRU 3 – 1" DIA, HOLES, 4" ON CENTER
5-1/8"
(129mm)
3-1/2"
(89mm)
(114mm)
(DO NOT SCALE)
TO ORDER PARTS CALL: 1-800-BUY-MOEN
™
LINDLEY
Model: 84916 series
7-7/8"
(201mm)
2-5/8"
(68mm)
4-1/2"
www.moen.com
