Moen Caldwell 84666 Series Specifications

Two-handle lavatory faucet

Advertisement

DESCRIPTION

• Metal construction with various finishes identified by suffix
• 1/2" IPS connections will accept standard ball
nose connection for 3/8" tubing
• Includes pop-up type waste assembly

OPERATION

• Lever style handles
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counter-clockwise to close)

FLOW

• Aerator is limited to 1.5 gpm max (5.7 L/min)

CARTRIDGE

• 1224 cartridge design
• Nonmetallic and stainless steel material

STANDARDS

• Third party certified to: CSA B-125.1, ASME A112.18.1,
ICC A117.1 and all applicable requirements referenced therein
• Certified to ANSI/NSF 61/9
• Complies with California Proposition 65 and with
the Federal Safe Water Drinking Act
for lever handles
ADA

WARRANTY

• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
2-5/8"
(67mm)
9-1/4"
(235mm)
Lift
Rod
4"
(102mm)
6-1/4"

CRITICAL DIMENSIONS

(159mm)
S p e c i f i c a t i o n s
Two-Handle Lavatory Faucet
NOTE: THIS FAUCET IS DESIGNED TO BE
INSTALLED THRU 3 HOLES, 1" MIN. DIA.
5-5/8"
(143mm)
3-3/4"
(95mm)
2-1/4"
(57mm)
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
CALDWELL

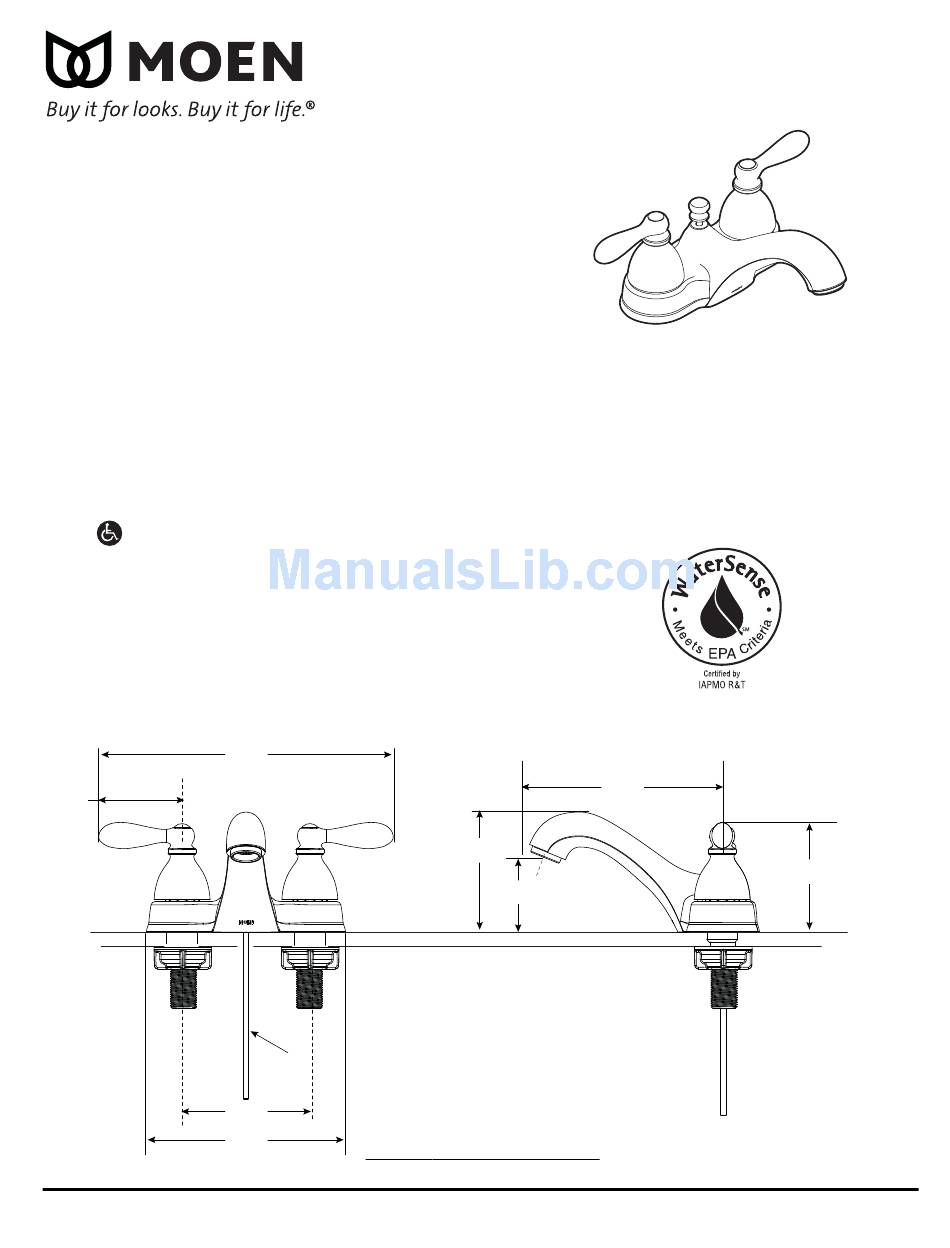

Model: 84666 series
3-3/8"
(86mm)
www.moen.com
