Moen CHATEAU POSI-TEMP 2353 Specifications

There is more than 1 version of this model.
Page down to identify the version you have.
FAUCET DESCRIPTION
• Chrome plated metal construction
• Pressure balancing cycle valve design with an adjustable temperature
limit stop
• 1/2" CC connections
• Includes showerhead, arm, flange and diverter spout
OPERATION
• Clear acrylic knob style handle
• Handle operates counterclockwise through a 270˚ arc with off
at 6 o'clock and maximum hot at the 9 o'clock position. Shut off in
clockwise direction
• Adjustable temperature limit stop to control maximum hot water
temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 3°
FLOW
• Showerhead limited to 2.5 gpm (9.5 L/min) Max
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to meet CSA B125.1, ASSE 1016, ASME A112.18.1
and all applicable requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects to the
original consumer purchaser
• 5 year warranty if used in commercial installations
Rev. 2/11
2" CC (51mm)
1 7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
6.5" (165mm)
ESC. DIAM.
4-1/2" (114mm)
PLASTER
GROUND
OPENING
2-3/4" C.C.
(70mm)
FLOOR LINE
THICK WALL APPLICATION

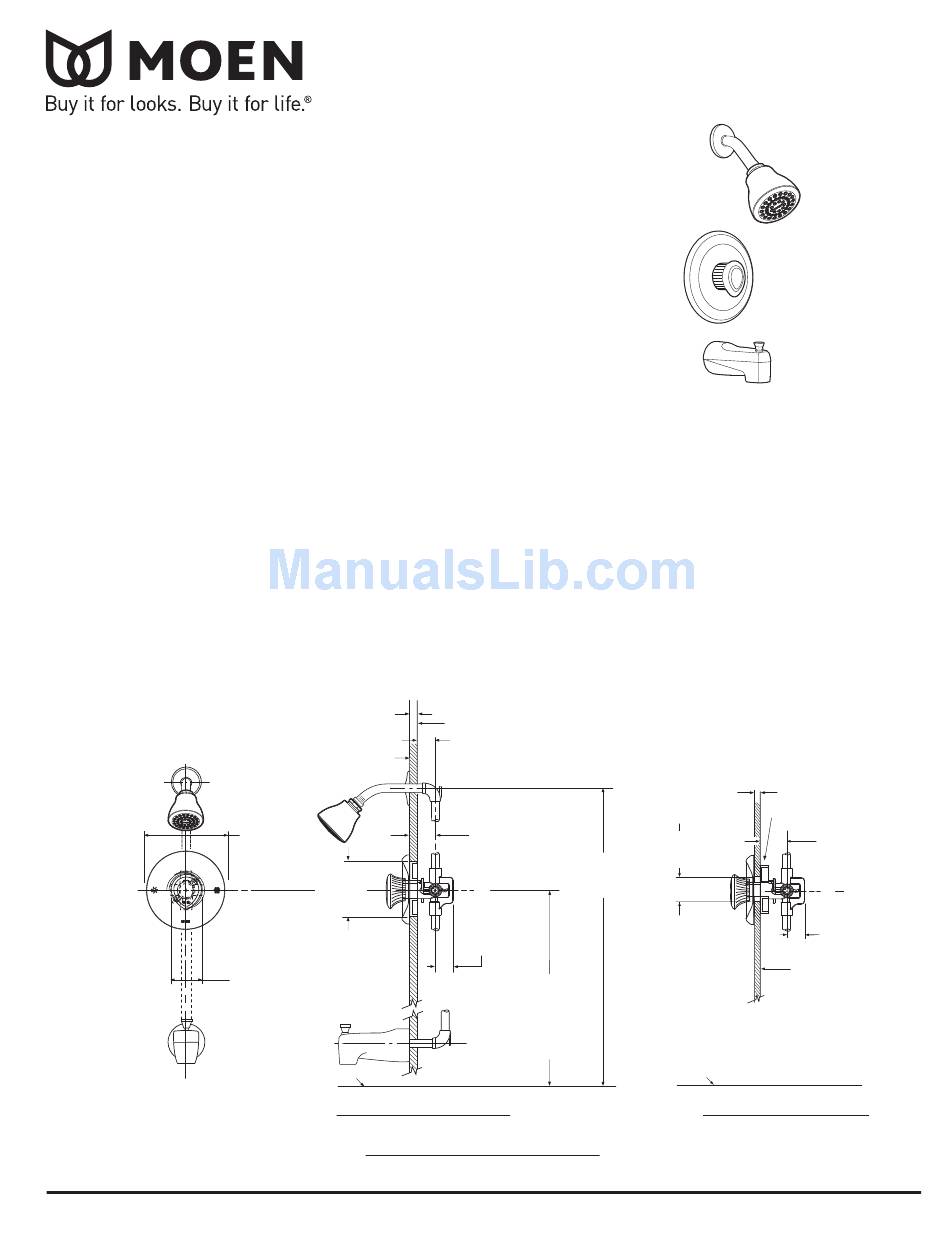

CRITICAL DIMENSIONS
S p e c i f i c a t i o n s
Single-Handle Tub/Shower Valve
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN IPS (16mm)
2 1/2" MAX. (63mm)
6'-6"
(1981mm)
NOMINAL
L C
1 3/8" (35mm)
SHOWER
45" (1143mm)/
48" (1219mm)
32" (813mm)
TUB/SHOWER
AND TUB ONLY
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
CHATEAU® POSI-TEMP®
Model: 2353
3/16"(typ) (5mm)
3-1/2" (89mm) MAX.
PLASTER GROUND
2-1/4 (57mm) MIN.
DIAMETER
WALL
OPENING
PLASTIC
TUB/SHOWER
SURROUND
FLOOR LINE
THIN WALL APPLICATION
www.moen.com
1-1/2"
(38mm)
L C
1 3/8"
(35mm)
