DESCRIPTION
• Metal construction with a chrome plated, LifeShine
polished brass or glacier finish
• Pressure balancing cycle valve design with an
adjustable temperature limit stop
• 1/2" IPS connections

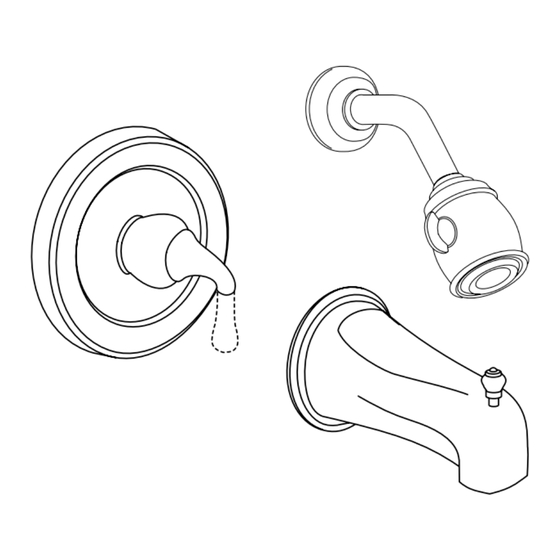

• Includes adjustable showerhead, arm,
flange and diverter tub spout
OPERATION
• Handle operates counterclockwise through a 270
arc with off at 6 o'clock and maximum hot at the 9
o'clock position. Shut off in clockwise direction
• Adjustable temperature limit stop to control
maximum hot water temperature
• Pressure balancing mechanism maintains selected
discharge temperature to ± 2°
FLOW
• Showerhead is limited to 2.5 gpm (9.5 L/min)
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified by CSA to meet CSA B-125,
ASME A112.18.1M and all applicable requirements
referenced therein and complies with the applicable
requirements of ANSI A117.1
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
7" (178mm)
ESCUTCHEON
DIAMETER
7-1/2"
(191mm)
MIN.
HOT
COLD
INLET
INLET
MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
®
2" CC (51mm)
1 7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
4-1/2" (114mm)
WALL OPENING
1-11/16"
(43mm)
FLOOR
TUB RIM
THICK WALL APPLICATION
CRITICAL DIMENSIONS
®
ADA
MONTICELLO
Single-Handle Tub/Shower Valve
Models: 2348, 2348CP,
NOTE: See reverse side for illustrated
parts and optional handle inserts
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
2 1/2" MAX. (63mm)
6'-6"
L C
(1981mm)
1 3/8"
(35mm)
45" (1143mm)/
48" (1219mm)-SHOWER
32" (813mm)-TUB OR
TUB SHOWER
(DO NOT SCALE)
Specifications
®
POSI-TEMP
®
2348P, 2348W
3/16" (typ) (5mm)
3-1/2" (89mm) MAX.
PLASTER GROUND
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
PLASTIC
TUB/SHOWER
SURROUND
FLOOR LINE
THIN WALL APPLICATION
ADA symbol applies to shower
valve control only.
Rev. 11/98
1 1/2"
(38mm)
L C
1 3/8"
(35mm)
T/S-43
