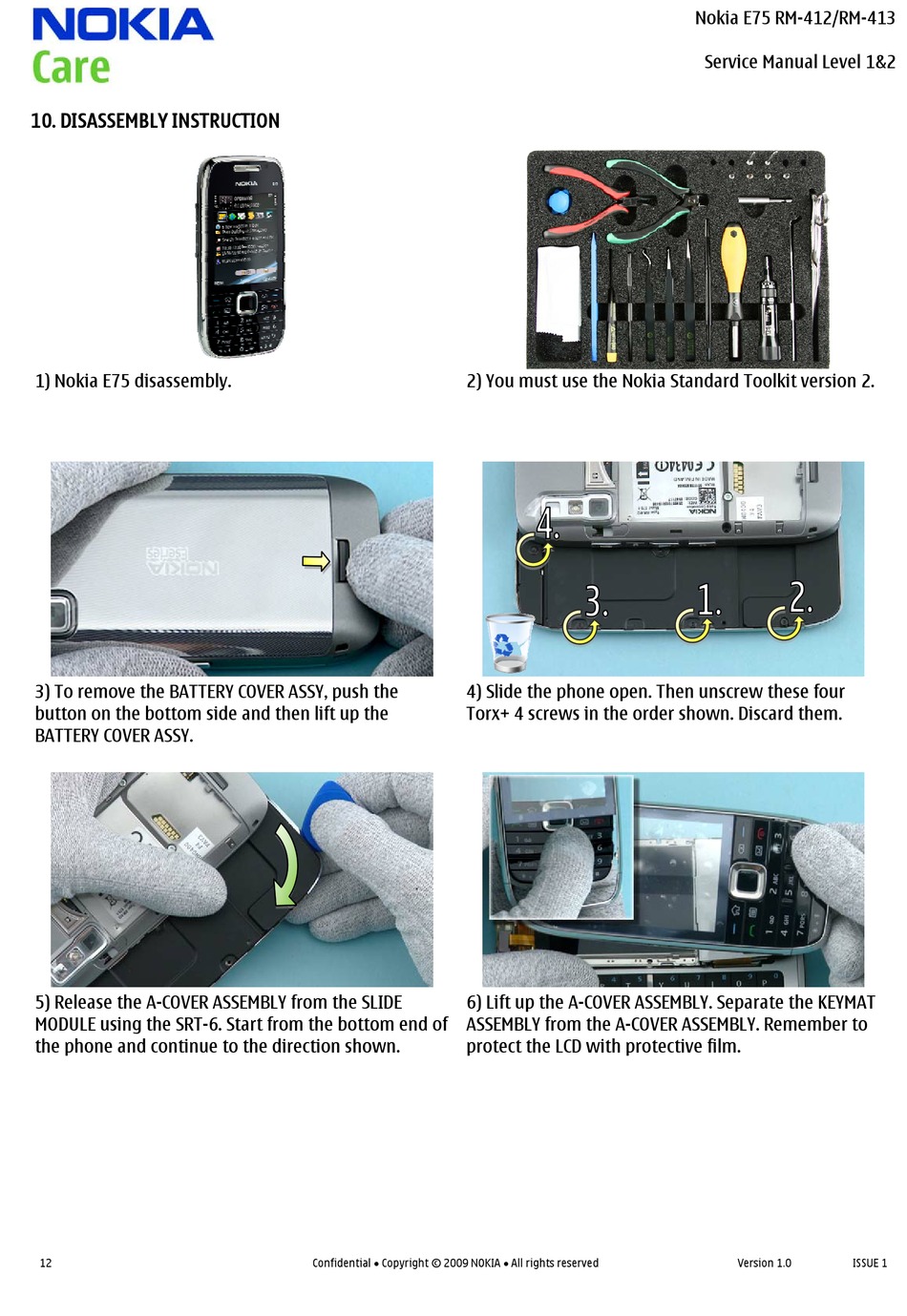

10. DISASSEMBLY INSTRUCTION

1) Nokia E75 disassembly.
3) To remove the BATTERY COVER ASSY, push the
button on the bottom side and then lift up the
BATTERY COVER ASSY.
5) Release the A-COVER ASSEMBLY from the SLIDE
MODULE using the SRT-6. Start from the bottom end of
the phone and continue to the direction shown.
12
2) You must use the Nokia Standard Toolkit version 2.
4) Slide the phone open. Then unscrew these four
Torx+ 4 screws in the order shown. Discard them.
6) Lift up the A-COVER ASSEMBLY. Separate the KEYMAT
ASSEMBLY from the A-COVER ASSEMBLY. Remember to
protect the LCD with protective film.
Confidential  Copyright © 2009 NOKIA  All rights reserved
Nokia E75 RM-412/RM-413
Service Manual Level 1&2
Version 1.0
ISSUE 1
