Moen WATERHILL TS516 Specifications

DESCRIPTION
- Metal construction with chrome plated, LifeShine® brushed nickel, nickel, wrought iron or
oil rubbed bronze finish
- 3/4" IPS connection
- Includes four single-function body sprays
- Includes 10" rainshower showerhead, arm and flange
- Includes single function hand shower with 69" hose assembly, drop ell and wall bracket
- For use with S936 3/4" thermostatic and S956 volume control valves
- With integral checkstops
OPERATION
- Flow lever operates counterclockwise through a 90 degree arc with off at 6 o'clock and
maximum flow at the 3 o'clock position. Shut off in clockwise direction
- Temperature lever operates through a 340 degree arc with maximum cold at full clockwise
rotation and maximum hot at full counterclockwise rotation
- Safety stop preset temperature at 105 degrees F ( 41degrees C)
- Safety stop override allows maximum temperature at 120 degrees F (49 degrees C)
- Factory established temperature range from 70 degrees F (21 degrees C) to 120 degrees F
(49 degrees C)
FLOW
- Showerhead and handshower are limited to 2.5 gpm (9.5 L/min)
- Bodysprays are limited to 1.75 gpm each (6.6 L/min)
CARTRIDGE
- 130156 thermostatic cartridge design with non metallic/nonferrous materials
- 130157 volume ceramic disc cartridge design
STANDARDS
- Third party certified to meet CSA B-125, ASME A112.18.1M and all applicable requirements
referenced therein including ASSE1016
WARRANTY
- Lifetime limited warranty against leaks, drips and finish defects to the original consumer
purchaser
- 5 year warranty if used in commercial installations
2-11/16"
(68mm)
Rev. 12/08
10"
(254mm)
2-11/16" 2-11/16"
(68mm) (68mm)
8-7/16"
(214mm)
ESCUTCHEON
WIDTH

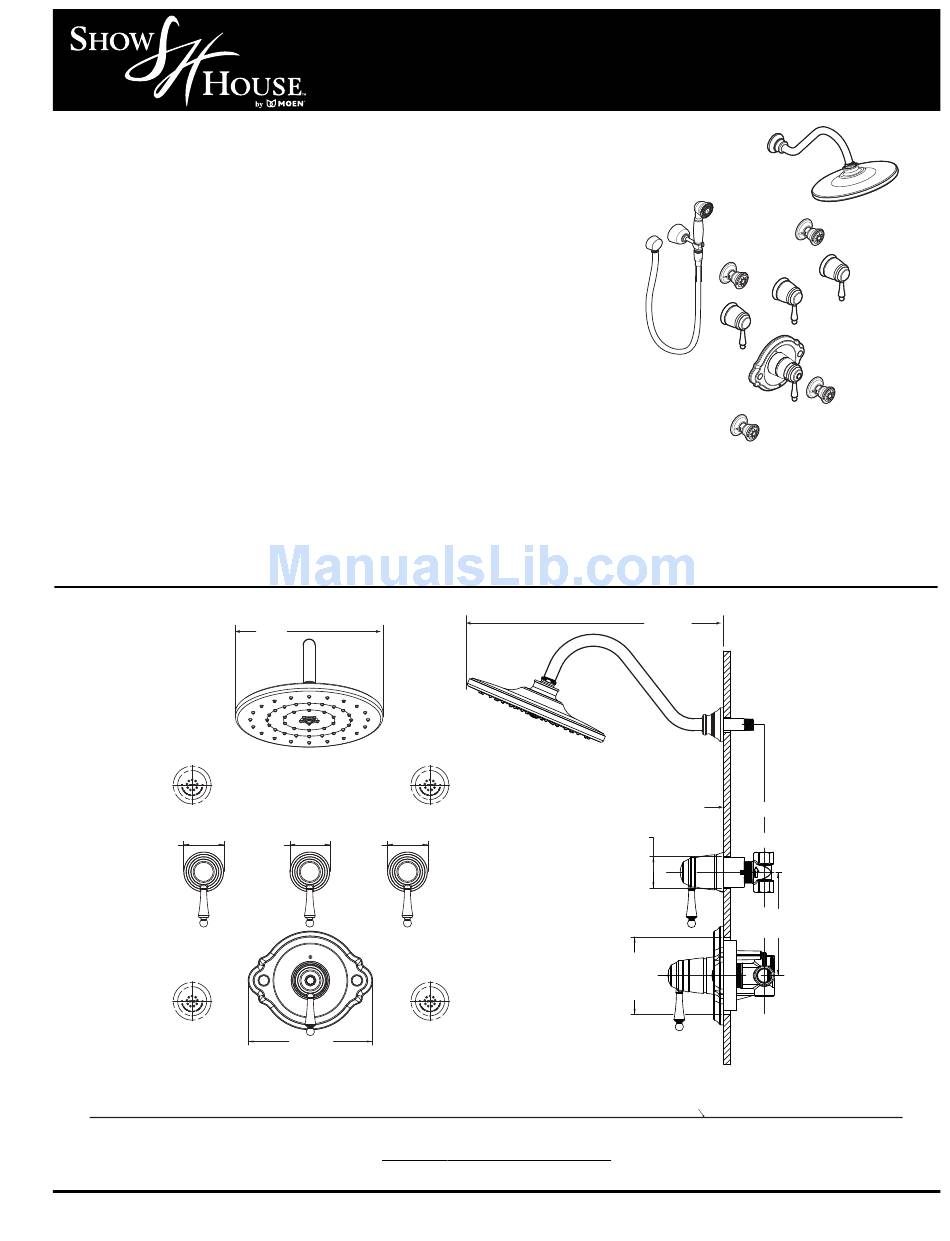

CRITICAL DIMENSIONS
Thermostatic Vertical Spa Trim
Models: TS516, TS516BN, TS516NL,
FINISHED WALL LINE
2-1/8"
(54mm)
WALL OPENING
5-1/4"
(133mm)
WALL OPENING
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

Specifications

WATERHILL®
TS516ORB, TS516WR
18"
(457mm)
8" (203mm)
6" (152mm) MIN
FLOOR
www.moen.com
