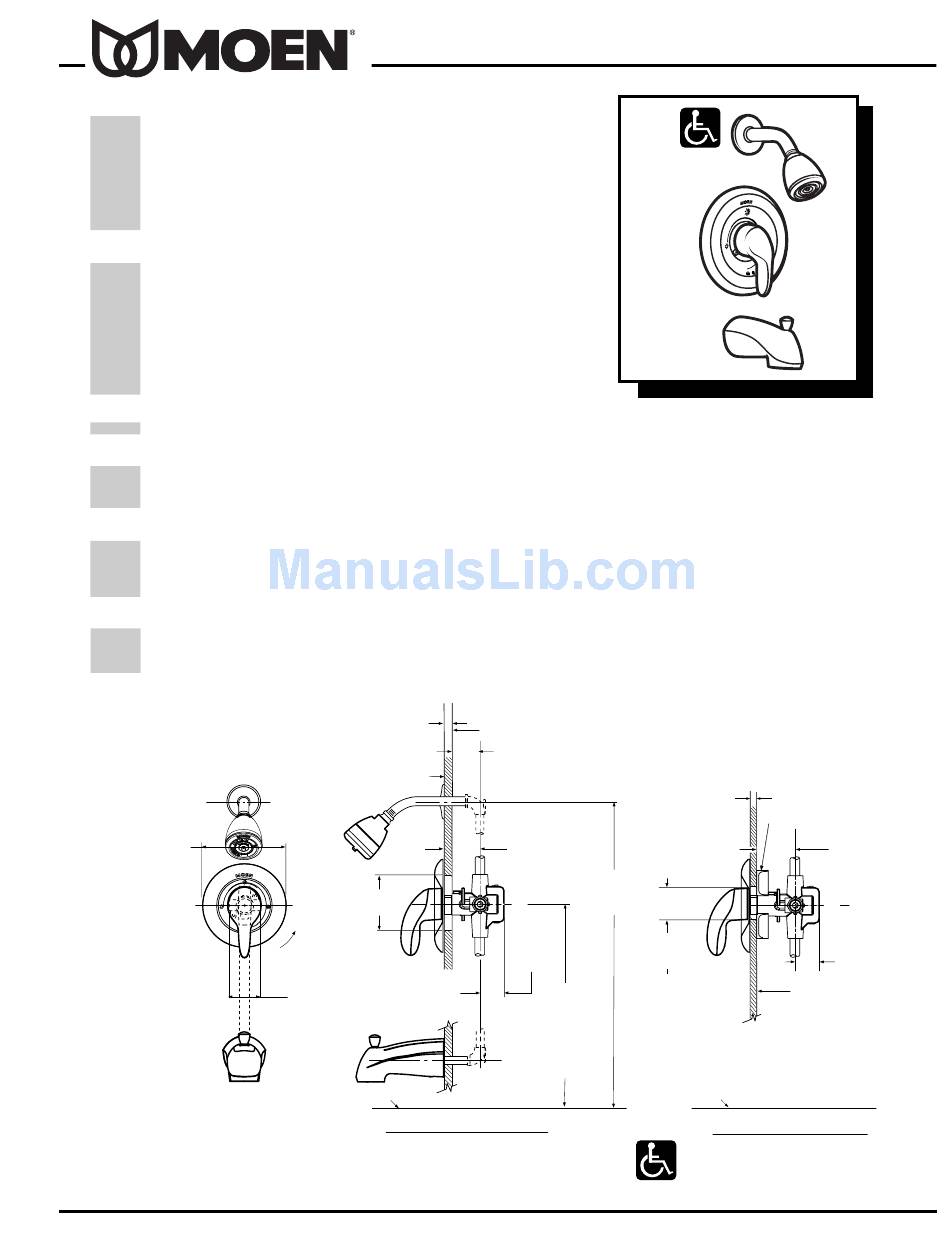

Moen Villeta Posi-Temp L2383 Specifications

Single-handle tub/shower

Advertisement

DESCRIPTION

• Metal construction with chrome plating, chrome with
LifeShine
®
polished brass accents, LifeShine
LifeShine
®
Satine, platinum or glacier finish
• Pressure balancing cycle valve design with an
adjustable temperature limit stop
• 1/2" IPS connections
• Includes showerhead, arm, flange, and diverter tub spout

OPERATION

• Lever style handle
• Handle operates counterclockwise through a 270˚ arc
with off at 6 o'clock and maximum hot at the 9 o'clock
position. Shut off in clockwise direction
• Adjustable temperature limit stop to control maximum
hot water temperature
• Pressure balancing mechanism maintains selected
discharge temperature to ± 2˚

FLOW

• Showerhead is limited to 2.5 gpm (9.5 L/min)

CARTRIDGE

• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations

STANDARDS

• Third party certified by CSA to meet CSA B-125,
ASME A112.18.1M and all applicable requirements
referenced therein and complies with the applicable
requirements of ANSI A117.1

WARRANTY

• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
7" (178mm)
ESC. DIAM.
MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
®
polished brass,
2" CC (51mm)
1 7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
4-1/2"
(114mm)
DIRECTION
OF HANDLE
ROTATION
2-13/16" C.C.
(72mm)
FLOOR LINE
THICK WALL APPLICATION

CRITICAL DIMENSIONS

ADA
Villeta
Single-Handle Tub/Shower
Model: L2383, L82383, L2383CP,
L82383P, L82383PM, L82383W, L82383ST
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN IPS (16mm)
2-1/2" MAX.
(63mm)
6'-6"
(1981mm)
C L
NOMINAL
DIAMETER
1-3/8"
OPENING
(35mm)
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
SHOWER
45" (1143mm)/
48" (1219mm)
32" (813mm)
TUB/SHOWER
AND TUB ONLY
(DO NOT SCALE)

Specifications

Posi-Temp
®
NOTE: See reverse side
for illustrated parts
3/16"(typ) (5mm)
PLASTER GROUND
1-1/2"
(38mm)
L C
WALL
PLASTIC
TUB/SHOWER
SURROUND
FLOOR LINE
THIN WALL APPLICATION
ADA symbol applies to shower
valve control only.
1-3/8"
(35mm)
Rev. 2/01
