Moderno M6R SST Instruction Manual

Single stereo technology speaker

Advertisement

Quick Links

INTRODUCTION
Thank you for purchasing Moderno speakers. When properly installed
your new speakers will give you years of entertainment pleasure.
This manual will teach you about your new speakers and will show
you how to install and get the very best performance from them.
Please read it thoroughly.

TOOLS NEEDED

You will need the following tools to install your Moderno speakers:
• Pencil
• Keyhole or drywall saw
• Philips screwdriver
• Small level
• Fish tape or coat hanger
• Wire strippers
• Gloves
• Safety goggles
• Drill with ¼" – ½" bit (for test hole) and 1"
Flat bit (if drilling through studs)

BOX CONTENTS

Your Moderno speaker box should contain the following items:
(1) Moderno M6R SST speaker
(1) Paintable grille
(1) Mounting cutout template (in packaging)

SPEAKER PLACEMENT

Moderno M6R SST Single Stereo Technology
use in hallways, bathrooms, closets, or in any location where listeners
will be moving around or where a pair of stereo speakers would be
impractical. Because a single M6R SST speaker reproduces both
stereo channels from a single location, it will deliver outstanding
audio performance from an extremely wide variety of mounting
locations and can be mounted in either a wall or a ceiling.
Moderno M6R SST speakers have very smooth and predictable off-
axis response, so they provide excellent coverage in distributed audio
systems from a wide variety of installation locations. The chart below
show how far apart the speakers can be placed at different ceiling
heights while still providing good coverage for all listeners.
The distances are based on ear heights of 62" for standing listeners
and 40" for seated listeners.
S
PEAKER
D
FOR A
ISTRIBUTED
8-F
C
OOT
EILING
10-F
C
OOT
EILING
12-F
C
13.7' Apart
OOT
EILING
14-F
C
17.7' Apart
OOT
EILING
®
speakers are ideal for
S
(
)
PACING
IN FEET
A
S
UDIO
YSTEM
S
S
TANDING
EATED
L
L
ISTENER
ISTENER
5.7' Apart
9.5' Apart
9.7' Apart
13.5' Apart
17.5' Apart
21.5' Apart
M6R SST S
T
ECHNOLOGY
I
NSTRUCTION

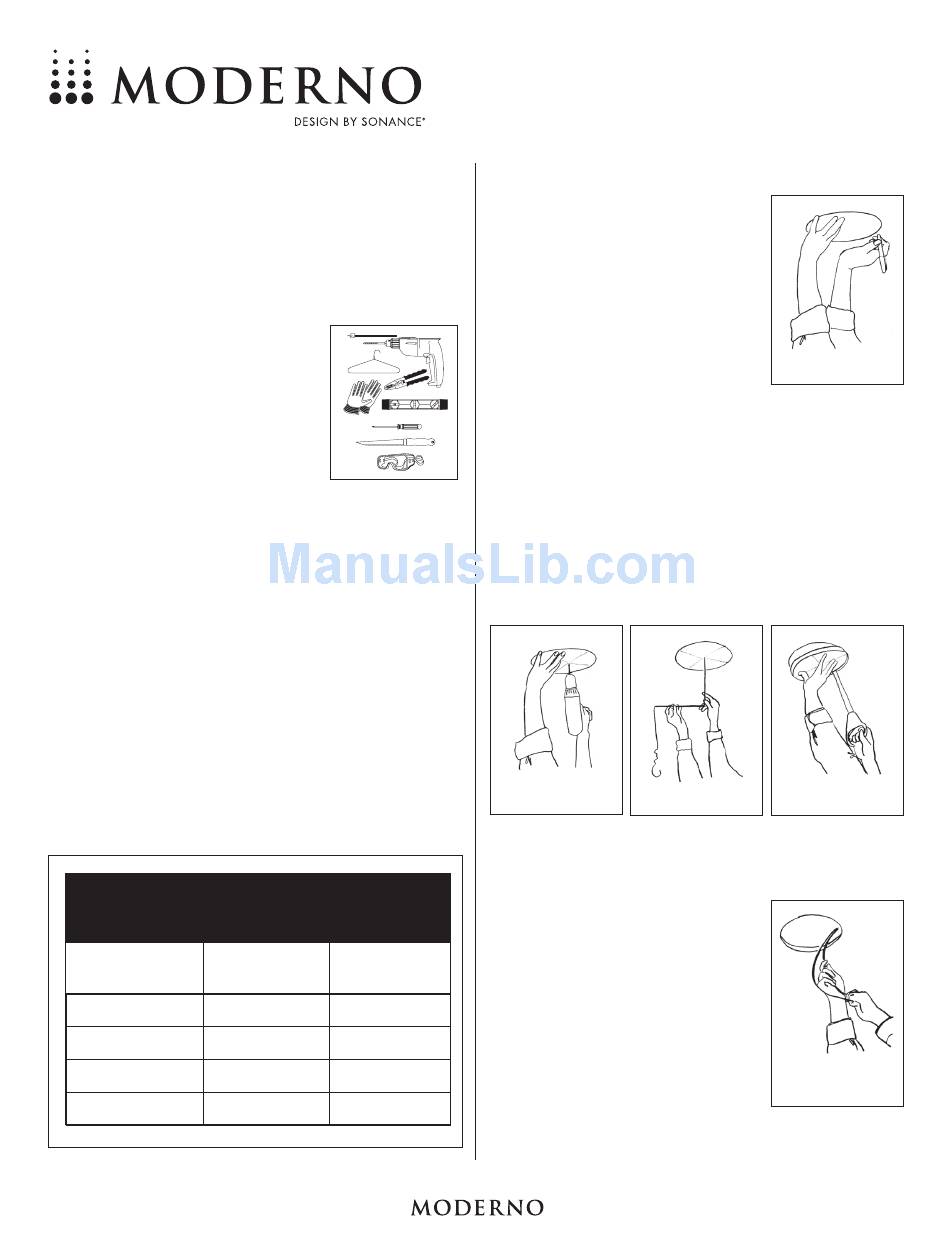

INSTALLING THE SPEAKERS

Step 1. Determine the location for the
speaker (see Speaker Placement on
page
1).
Center
the
between the wall studs or ceiling
joists. Tap the wall or ceiling and lis-
ten for a "hollow" sound, or use a
stud finder to locate studs.
Step 2. Position the included cutout template
where the speaker is to be located
and trace the outline on the wall or
ceiling with a pencil.
• Make sure the speakers are even
with each other and level.
IMPORTANT: The edges of the cutout outline
must be at least ¾" away from any studs, to
allow room for the RotoLock
N
: R
S
6
OTE
EAD
TEP
ABO UT RU N N I N G SPEAKER WI RE BEFO RE D ECI D I N G
O N TH E FI NAL SPEAKER LO CATI O NS
Step 3. Drill a small hole in the center of the outline you just traced.
Step 4. Insert a coat hanger wire into the hole to feel-around for pos-
sible obstructions. If there are obstructions, patch the hole and
select another location for the speaker. Make sure that any
studs will be at least ¾" away from the edges of the cutout.
Step 5. Carefully cut the outline of the mounting hole using a keyhole
or drywall saw. Remove the drywall from the cutout.
Step 3
M PORTANT:
Make
sure
I
is turned off before performing Step 6.
Step 6. Run the speaker cable from the speaker outputs of your
amplifier to the speaker locations.
Use high-quality cable such as
HomeTech HTC100 16/4 cable. Pull
the cables through the mounting
holes you cut in the wall.
• Allow a few extra feet of cable, and
leave enough cable slack so you
can strip the insulation from the
conductors when you're ready to
connect to the speakers.
N
: I
OTE
F SPEAKER CABLE IS TO BE RU N
TH RO U G H WALLS O R CEI LI N GS
MUST
UL-
CL-
BE
AN D
R ATED FO R YO U R
SAFETY AN D BU I LD I N G CO D E CO M PLIAN CE
2
C O N T I N U E D O N PAG E
-S
INGLE
TEREO
®
S
PEAKER
M
ANUAL
speaker
Steps 1 and 2
®
clamps to operate.
.
Step 5
Step 4
your
amplifier's
,
TH E CABLE
Step 6
.
power
1 1
