DO NOT REMOVE THE SPECIAL ACOUSTIC FOAM ATTACHED
TO THE FRONT BAFFLE AND/OR GRILLE OF YOUR SPEAKERS.
This foam is a critical part of your loudspeaker system and plays an important role
in its high level of performance. It focuses the radiation of the tweeters, minimizes
cabinet diffraction, and provides the flattest possible frequency response.
operation
manual

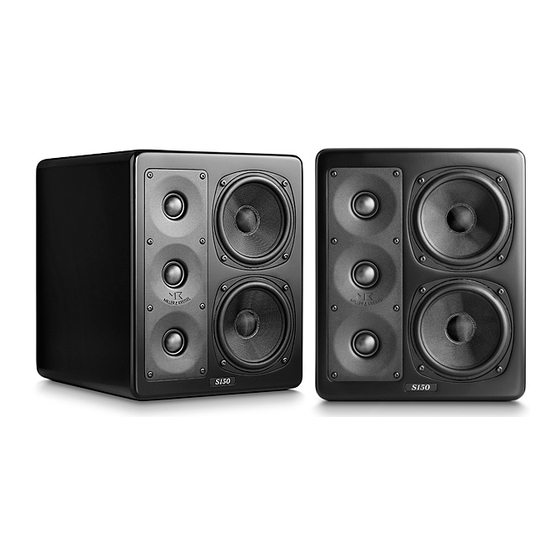

S-5000
THX
S-150
THX
Miller & Kreisel Sound Corporation
9351 Deering Avenue
Chatsworth, CA 91311 USA
(818) 701-7010 Fax (818) 701-0369 www.mksound.com
©2001 MILLER & KREISEL SOUND CORP.
Manufactured under license from Lucasfilm Ltd. U.S.
Patent Numbers 5,043,970; 5,189,703; and 5,222,059.
Foreign patents pending. Lucasfilm and THX are registered
trademarks of Lucasfilm Ltd.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MK Sound S-5000THX
Summary of Contents for MK Sound S-5000THX
-
Page 1: Operation Manual
DO NOT REMOVE THE SPECIAL ACOUSTIC FOAM ATTACHED TO THE FRONT BAFFLE AND/OR GRILLE OF YOUR SPEAKERS. This foam is a critical part of your loudspeaker system and plays an important role in its high level of performance. It focuses the radiation of the tweeters, minimizes cabinet diffraction, and provides the flattest possible frequency response. -
Page 2: Table Of Contents
S-5000 & S-150 satellite speakers INTRODUCTION...3 THE HOME THX AUDIO SPEAKER SYSTEM...3 PLACEMENT OF YOUR M&K THX SPEAKERS...3 SPEAKER HOOK-UP...4 OPTIMIZING SPEAKER PLACEMENT...5 SPEAKER PLACEMENT IN A HOME THX AUDIO SYSTEM...7 USE OF THE "NORMAL" / "SPECIAL INPUT SELECTION SWITCH (S-5000)...8 USING THE S-5000 WITHOUT GRILLES...9... -
Page 3: Introduction
2. THE HOME THX AUDIO SPEAKER SYSTEM Your choice of an M&K Home THX Audio speaker system assures you of achieving the state of the art in home theatre music and video reproduction. The precise and exacting standards developed by Lucasfilm's Home THX division, as applied by M&K's engineering team, assure that you will hear every element of film sound - from... -
Page 4: Speaker Hook-Up
S-5000 & S-150 satellite speakers There is a four hole mounting pattern on the rear baffle to accommodate either an Omnimount mounting bracket. The S-5000 uses an Omnimount #100 pattern, and the S-150 uses an Omnimount #75 pattern. This four hole pattern is also used with the M&K speaker stands and wall brackets. You can place your speakers virtually anywhere in the room, but certain locations are better than others. -
Page 5: Figure 1 Wiring
S-5000 & S-150 satellite speakers MILLER & KREISEL SOUND CORPORATION 10391 Jefferson Blvd., Culver City, CA 90232 310/204-2854 5. OPTIMIZING SPEAKER PLACEMENT The sound quality produced by your speakers can be significantly enhanced by careful attention to their placement. You will get the maximum return in sound quality for your investment in the by following these guidelines as closely as possible. - Page 6 S-5000 & S-150 satellite speakers Your M&K speakers will always deliver sound superior to conventional speakers, regardless of where you locate them or where you are when you are listening. However, because of their design, they achieve their very best sound quality and their flattest frequency response when properly oriented relative to your ear. Ideally, your speakers' tweeters should be at the same height from the floor as your ears when you are sitting in your main listening position.
-
Page 7: Speaker Placement In A Home Thx Audio System
S-5000 & S-150 satellite speakers SEPARATION BETWEEN LEFT & RIGHT SPEAKERS LEFT SPEAKER The performance of your speakers is dependent on their orientation. THX speakers are designed for controlled vertical dispersion and wide horizontal dispersion. By controlling the vertical dispersion, we limit the amount of sound that would otherwise be reflected with a time delay from the floor and ceiling (for the reasons discussed in B. -
Page 8: Use Of The "Normal" / "Special Input Selection Switch (S-5000)
S-5000 & S-150 satellite speakers tweeters at the same height as the listeners' ears. Your speakers have great flexibility in combination with stands, mounting brackets, or speaker hangers to make this easy to accomplish. Remember that they are designed to be installed vertically, with the tweeters aimed at the listeners' ears. They can, however, be placed at virtually any height. -
Page 9: Using The S-5000 Without Grilles
S-5000 & S-150 satellite speakers A. "NORMAL" SWITCH POSITION When you are using the S-5000 away from walls, the floor, or ceiling, the switch should be set to the "NORMAL" position. This includes placement on stands, risers, in furniture, suspended from ceilings, etc. Unless the speaker is in direct contact with a wall, floor, or ceiling, use the "NORMAL"... -
Page 10: Satellite/Subwoofer Phasing Test
S-5000 & S-150 satellite speakers The foam that is located inside the speaker grille is very important. Therefore, any time the S-5000 is used without its speaker grille, it is very important that that foam be replaced. If your S-5000s are being installed behind other cloth grilles in order to conceal them (or behind a THX front projection screen), the regular speaker grilles should be removed. -
Page 11: Bi - Amplifying Your Satellites With M&K High Pass Filters
S-5000 & S-150 satellite speakers This flat top contains multiples of the original amplified frequencies, sometimes at higher levels than the original signal itself. For tweeters, this can be very damaging, as this distortion is well above the audible range, where you will be unable to hear it, and where the tweeter is more vulnerable to damage. -
Page 12: Specifications
The S-150's painted black finish does not require any special maintenance; regular dusting with a lint-free cloth and periodic cleaning is all that is required. Matching black paint can be used if necessary to repair any surface damage. 13. SPECIFICATIONS S-5000THX S-150THX 4 ohms 4 ohms...
