Mitsubishi Electric XD435U-G User Manual

Mitsubishi electric data projector user manual.
Hide thumbs

Advertisement

EN
DATA PROJECTOR
MODEL
XD435U
XD435U-G

User Manual

This User Manual is important to you.
Please read it before using your projector.

Advertisement

   Related Manuals for Mitsubishi Electric XD435U-G

   Summary of Contents for Mitsubishi Electric XD435U-G

  • Page 1: User Manual

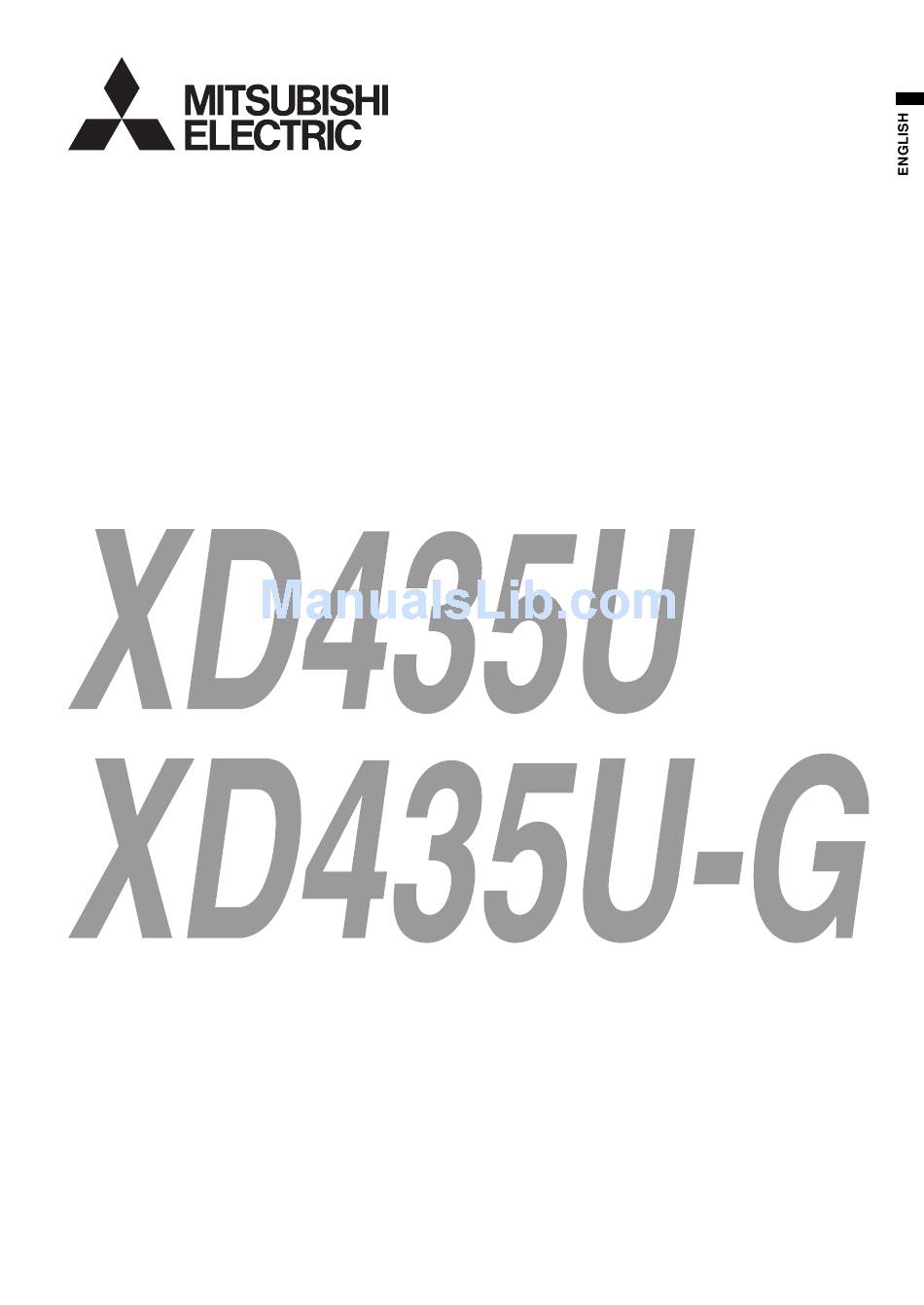

    DATA PROJECTOR MODEL XD435U XD435U-G User Manual This User Manual is important to you. Please read it before using your projector.
  • Page 2 TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUT- LET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NOTE: SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE. WARNING Use the attached specified power supply cord.
  • Page 3: Table Of Contents

    Lamp replacement ...23 Troubleshooting ...24 Indicators ...27 Specifications ... 28 Declaration of Conformity Model Number : XD435U/XD435U-G Trade Name : MITSUBISHI ELECTRIC Responsible party : Mitsubishi Digital Electronics America, Inc. 9351 Jeronimo Road, Irvine, CA 92618 U.S.A Telephone number : +1-(949) 465-6000 This device complies with Part 15 of the FCC Rules.
  • Page 4: Important Safeguards

    Water and moisture Do not use this projector near water or in contact with water. Accessories Do not place this projector on an unstable cart, stand, tripod, bracket or table.
  • Page 5 Never put any heat-producing device under the projector to pre- vent the projector from being overheated. • Do not install the projector at a place that is unstable or subject to vibration. • Do not install the projector near any equipment that produces a strong magnetic field.
  • Page 6: Overview

    Overview Control panel Terminal board EN-6 6 15 8 9 14 FOCUS ring ZOOM ring Control panel Air outlet grille Remote control sensor (Front) Air inlet grille Air inlet grille Terminal board Air inlet grille 10 Speaker 11 Adjustment feet (front) 12 Adjustment feet (rear) 13 Lock bar 14 Foot Adjustment button (Front)
  • Page 7: Bottom Side

    Bottom side Remote control Lamp cover Adjustment feet (rear) Adjustment feet (front) Caution: Do not replace the lamp immediately after using the pro- jector because the lamp would be extremely hot and it may cause burns. ON button STILL button AUTO POSITION button ENTER button MENU button...
  • Page 8: Remote Control

    The maximum operation distance of the remote control is about 10 m (or about 32 feet) when the remote control is pointed at the remote control sensor of the projector. When the remote control is pointed to the screen, the distance from the remote control to the projector via the screen should be 5 m or less.
  • Page 9: Installation

    Put a hard board under the pro- jector to facilitate ventilation. • Place the projector at least 50 cm (or 20 inch) away from the wall to prevent the air inlet grille and the air outlet grilles that emit hot air from being blocked.
  • Page 10: Basic Connections

    Make sure that the connected device is turned off before starting connection. • Plug in the power cords of the projector and the connected devices firmly. When unplugging, hold and pull the plug. Do not pull the cord. • When the projector and the connected devices are located too close to each other, the projected image may be affected by their interference.
  • Page 11 • This projector uses stereo pin jack for its audio input. Check the type of the audio output terminal of the connected computer and prepare a proper cable for connection. Some computers don’t have the audio output terminal.
  • Page 12: Preparation

    Remove the lens cap. Warning: • Do not look into the lens directly when the projector is on. • The lens cap is for protecting the lens. If you leave the lens cap on the lens with the projector turned on, it may be deformed because of heat build-up.
  • Page 13: Basic Operation

    • If the power cord is unplugged from the wall outlet before the projector is cooled down completely after use, the fans may start rotating when the power cord is plugged in next time and the POWER button may not function. In this case, wait for the fans to stop and press the POWER button to light the indicator.
  • Page 14 The lamp can’t be lit again for one minute after turned off for safety purpose. It will take another one minute for the STATUS indicator to go out. If you want to turn on the projector again, wait until the indicator goes out, and then press the POWER button.
  • Page 15: Using The Usb Memory Viewer

    Using the USB Memory Viewer XD435U/XD435U-G enables you to read JPEG and MPEG files from a USB memory stick and show the images on a screen. This can be used to give a presentation and/or present a slide show without using a computer.
  • Page 16 Displaying thumbnails Connect a USB memory stick to the [USB VIEWER] termi- nal on this device. Select a USB viewer. • Press the [VIEWER] button on the remote controller or the [COMPUTER] button on the main unit. The selection will change between “COMPUTER1”...
  • Page 17: Menu Operation

    Menu operation CONTRAST IMAGE BRIGHTNESS WHITE ENHANCE COLOR TEMP. COLOR TINT SHARPNESS GAMMA MODE AUTO POWER ON INSTALLATION AUTO POWER OFF SPLASH SCREEN BACK COLOR LAMP MODE IMAGE REVERSE MENU POSITION FEATURE SLIDE SHOW SETTING CINEMA MODE VIDEO SIGNAL ANAMORPHIC PASSWORD FUNCTION LANGUAGE RESET ALL...
  • Page 18 BLACK, which will be displayed when there is no signal input from the source. the projector operating noise is reduced, resulting in a longer lamp replacement interval. • When the lamp mode is switched, the projected image may flicker. This is not a product malfunc- tion.
  • Page 19 3 FEATURE MENU POSITION ... Use to select the position of the menu on the screen, 1. SLIDE SHOW SETTING ... Select OK when playing USB Memory Viewer. CINEMA MODE ... When AUTO is selected, the film mode will be automati- VIDEO SIGNAL...
  • Page 20 HORIZ. POSITION...Use to adjust the horizontal position of the image. VERT. POSITION...Use to adjust the vertical position of the image. FINE SYNC..Use to synchronize the projector with the PC input signal TRACKING...Use to eliminate image noise such as wide stripes.
  • Page 21: Image Adjustment

    CONTRAST R (red). Adjustment of the image from the computer This projector adjusts the format of the video signal supplied from the computer. However, sometimes images are not projected correctly owing to the type of the computer used. When the image from the computer isn’t projected correctly, press the AUTO POSITION button.
  • Page 22: Advanced Feature

    Wait for the lamp to light up before connecting the USB cable. Password function This projector is equipped with the password function that is designed for prevention of wrong operation by children and restriction on opera- tion by other than specified users.
  • Page 23: Lamp Replacement

    • Be sure not to drop the lamp lid screw into the projector. Also be sure not to put metal or any flammable objects inside because it may cause fire or electric shock. If any objects should fall inside, unplug and contact your dealer.
  • Page 24: Troubleshooting

    • If the projector was turned off before the lamp cooled down completely, the fans may start rotating and the POWER button may not function when you plug the power cord into the wall outlet next time. Wait for the fans to stop and press the POWER button to turn on the lamp again.
  • Page 25: Images Aren't Projected Correctly

    Adjust the projector and the screen so that they are perpendicular to each other. (See page 12.) • This symptom is normal for a DLP projector and is not a malfunction. (A very small number of pixels may stay lit or out, but such symptom is not a malfunction. Pixels of 99.99% or more are effective.) •...
  • Page 26 Cleaning of the projector and the ventilation slots Use a soft cloth to clean the projector and the ventilation grilles. When the grilles become dirty, wipe them with a soft cloth dampened with diluted mild detergent, and then wipe them with a dry cloth.
  • Page 27: Indicators

    Indicators This projector has two indicators, each of which shows the operation condition of the projector. The following offer solutions to possible problems. If these problem persist, turn the projector off and consult your dealer. STATUS indicator Normal condition POWER...
  • Page 28: Specifications

    114 inch (1.8 m) Temperature, humidity +41°F (+5°C) - +95°F (+35°C), 30 - 90% (performance guaranteed) • The specifications and outside appearance of the projector are subject to change without prior notice. EN-28 : Y:1.0 Vp-p (negative sync.) :0.7 Vp-p...
  • Page 29 AC power cord for US 02552-0063-01 for EU 02552-0066-01 for UK 02552-0065-01 AC power cord for US 246C483-10 (only for XD435U-G) 1 RGB cable for PC 1 VIDEO cable Replacement part (Option / Not included in the box) Spare lamp for XD435U...
  • Page 30 Specification of RGB signals in each computer mode of the projector resolution Signal mode (H x V) TV60, 480i(525i) TV50, 576i(625i) 1080i 60 (1125i 60) 1080i 50 (1125i 50) 480p (525p) 576p (625p) 720p 60 (750p 60) 720p 50 (750p 50)
  • Page 31 MITSUBISHI Projector Contact Information North America MESCA (Mitsubishi Electric Sales Canada Inc.) http://www.mitsubishielectric.ca Information Technologies Group, 4299 14th Avenue, Markham, Ontario L3R 0J2, Canada Sales & Technical Inquires Phone :+1-(800) 450-6487 :+1-(905) 475-7958 E-mail :projectors@mitsubishielectric.ca Customer Care E-mail :support@mitsubishielectric.ca MDEA (Mitsubishi Digital Electronics America, Inc.) (Warranty Registration) http://www.mitsubishi-presentations.com/...
