ArtFox SHINE BAR 12Q User Manual

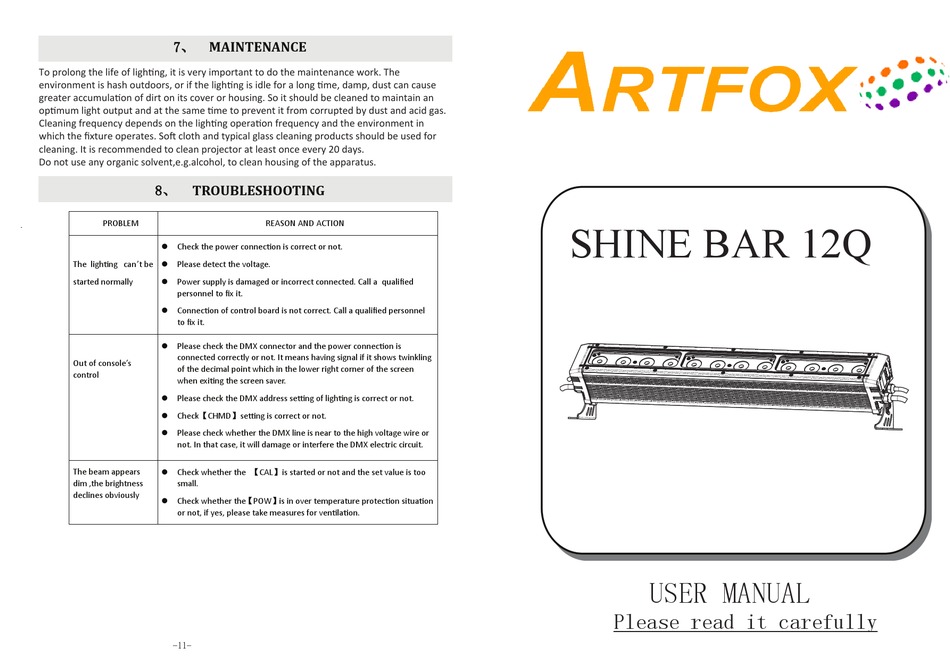

7、 MAINTENANCE
To prolong the life of lighting, it is very important to do the maintenance work. The
environment is hash outdoors, or if the lighting is idle for a long time, damp, dust can cause
greater accumulation of dirt on its cover or housing. So it should be cleaned to maintain an
optimum light output and at the same time to prevent it from corrupted by dust and acid gas.
Cleaning frequency depends on the lighting operation frequency and the environment in
which the fixture operates. Soft cloth and typical glass cleaning products should be used for
cleaning. It is recommended to clean projector at least once every 20 days.
Do not use any organic solvent,e.g.alcohol, to clean housing of the apparatus.

TROUBLESHOOTING

8、
PROBLEM
 Check the power connection is correct or not.
The lighting can't be  Please detect the voltage.
started normally  Power supply is damaged or incorrect connected. Call a qualified
personnel to fix it.
 Connection of control board is not correct. Call a qualified personnel
to fix it.
 Please check the DMX connector and the power connection is
connected correctly or not. It means having signal if it shows twinkling
Out of console's
of the decimal point which in the lower right corner of the screen
control
when exiting the screen saver.
 Please check the DMX address setting of lighting is correct or not.
 Check【CHMD】setting is correct or not.
 Please check whether the DMX line is near to the high voltage wire or
not. In that case, it will damage or interfere the DMX electric circuit.
The beam appears  Check whether the 【CAL】is started or not and the set value is too
dim ,the brightness small.
declines obviously
 Check whether the【POW】is in over temperature protection situation
or not, if yes, please take measures for ventilation.
－１１－
REASON AND ACTION
SHINE BAR 12Q
USER MANUAL
Please read it carefully
