Summary of Contents for Logitek PMX 602

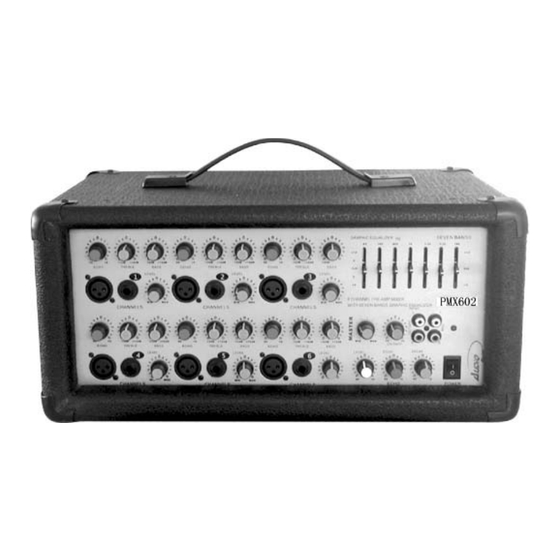

- Page 1 6 Channel Mixer Amplifier INSTRUCTION PMX 602...
- Page 2 TO PREVENT ELECTRONIC SHOCK DO NOT REMOVE TOP OR BOTTOM COVERS . NO USER SERVICEABLE PARTS INSIDE SERVICING TO QUALIFIED SERVICE PERSONNEL .DISCONNECT POWER CORD BEFORE REMOVING BACK PANEL COVER TO ACCESS GAIN SWITCH . Magnetic Field Watch for these symbols: The exclamation point Trangie is used to important operating or maintenance instructions .
- Page 3 OWNERS MANUAL...
- Page 4 OWNERS MANUAL...
- Page 5 1.Microphone I Input 2.Line I Input 3.Input Signal Gain Control 4.Channel Echo Control 5.Channel Treble Control 6.Channel Bass Control 7.Echo Level Control 8.Echo Control 9.Echo Delay Control 10.Master Output Control 11.CD/Tape Input Control 12.CD/Tape Input Socket 13.Seven Band Graphic Equalizer 14.Power Switch 15.Power LED (Blue ) 16.Effect Loop Send...
- Page 6 SPECIFICATIONES 1.Output power 2x 100W /8 2.THD :<0.1%(at 1KHZ 10W ) 3.Tone controls: BASS: 100HZ Treble:10KHZ 12dB 4.Frequency Response: 20HZ 5.Echo and Echo delay control 6.power : 7.Dimensions (W x D x H ): 8.Weight :7kg OWNERS MANUAL 12dB 20KHZ 115V /60HZ or 230V/50HZ (410x 275x 210)
- Page 7 Logitek Electronics Co.,Ltd. Tel:+86-574-88098888(50 Lines ) 88070226 Fax :+86-574-88098788 ADD :Science &technology Zone Jangshan Town ,Yinzhou District, Ningbo, China P. C:315191...
