Magic 2R
BEAM SCANNER LASER
hybrid effects projector
(Instruction version: 1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magic 2R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARTFOX Lighting Magic 2R

Summary of Contents for ARTFOX Lighting Magic 2R

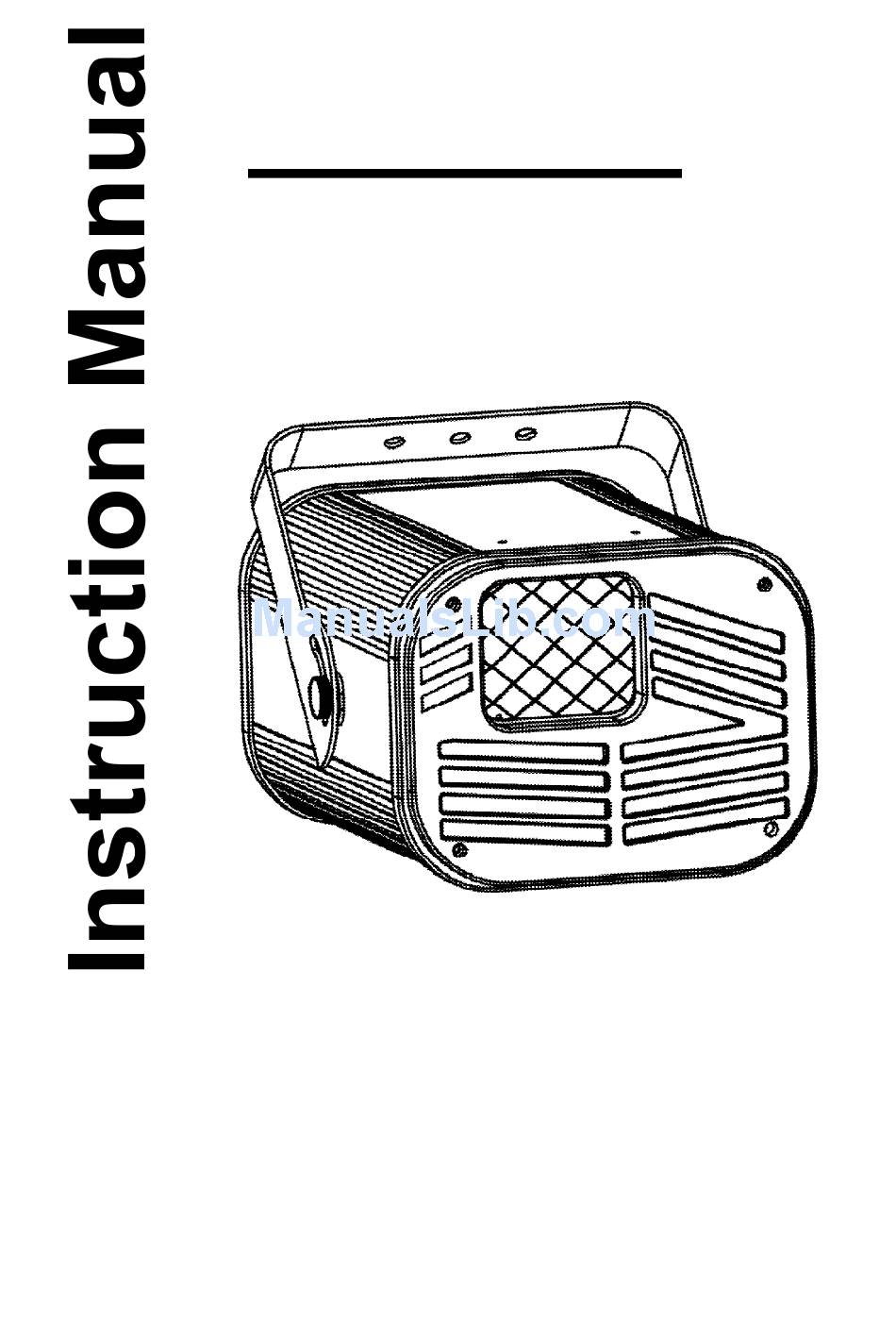

  • Page 1 Magic 2R BEAM SCANNER LASER hybrid effects projector (Instruction version: 1.0)
  • Page 2 Notes:...

  • Page 3: Table Of Contents

    Table of contents Description of Device....................4   Safety Instructions ....................5 Preparation and Connections ................6  • Safety information ..................... 6 • Connections ...................... 7 • Power Supply ..................7 • DMX ...................... 7  The Menu Field ......................7 Operation Instruction ....................

  • Page 4: Description Of Device

    1. Description of Device 1. Arm 2. Body 3. Lens 1. DMX-Output (3 pin) 2. Power Out 3. Power In 4. LCD display 5. DMX-Input (3 pin)

  • Page 5: Safety Instructions

    2. Safety Instructions The l i g h t is a High-Tech Product. To guarantee a smooth operation, it is necessary to respect the following rules. The manufacturer of this device will not take responsibility for damages through any disregard of the information provided in this manual.

  • Page 6: Preparation And Connections

    3. Preparation and Connections 3.1. Safety information The light fixtures is fitted with a number of plano-convex lenses in a highly efficient collimator cluster. This type of lens can act as a strong magnifying glass. If the rays from a strong light source (such as the sun or another lighting fixture) are directed towards the front of any of these fixtures, then internal damage may occur.

  • Page 7: Connections

    3.2. Connections • Power Supply ~100-240 Volt AC, 50-60 Hz, earth contact type plug - Powercon Connected load 350 VA (W) T6.3A (micro-fuse 5x20mm) Please see printing on the case for the right electronic supply! Disconnect from the mains supply for changing the fuse and use only the above described micro-fuse type.

  • Page 8: Operation Instruction

    5. Operation Instruction A001 DMX Address A512 17Ch Channel Mode 21Ch Sound Show Mode Auto Master Slave Mode Slave Black Out ---------- Sound State Sound Sense 0--100 Pan Inverse Tilt Inverse Back Light...
  • Page 9 Lamp On/Off Auto Test ---°C Temp. -20--200°C Fixture Time 0--999 ---------- Firmware Version V1.01 Factory Defaults System Reset...

  • Page 10: Dmx Channel Selection (Dmx Protocol)

    6. DMX Channel Selection (DMX Protocol) Standard-Mode 17 DMX channels Channel 17CH: 0---127 Pan Movement 128---255 Pan Shaking Movement Slow To Fast 0---127 Tilt Movement TILT 128---255 Tilt Shaking Movement Slow To Fast 0---2 Open 3---4 Open + Color1 5---6 Color1 7---9 Color1 + Color2...
  • Page 11 Fast 0---7 Open 8---14 Gobo1 15---22 Gobo2 23---29 Gobo3 30---37 Gobo4 38---44 Gobo5 45---52 Gobo6 53---59 Gobo7 60---67 Gobo8 68---74 Gobo9 GOBO 75---82 Gobo10 83---89 Gobo11 90---97 Gobo12 98---104 Gobo13 105---112 Gobo14 113---119 Gobo15 120---126 Gobo16 127---133 Gobo17 134---194 Clockwise Gobo Rotation From Fast To Slow CounterClockwise Gobo Rotation From Slow To 195---255 Fast...
  • Page 12 179---186 Pattern Macro 21 187---195 Pattern Macro 22 196---203 Pattern Macro 23 204---212 Pattern Macro 24 213---220 Pattern Macro 25 221---229 Pattern Macro 26 230---237 Pattern Macro 27 238---246 Pattern Macro 28 247---255 Pattern Macro 29 0---9 Stop 10---120 Clockwise Pattern Rotation From Fast To Slow PATTERN 121---134 Stop...
  • Page 13 40---59 Lamp On After 5S] 60---79 Lamp Off 80---89 All Motors Reset 90---99 Pan/Tilt Motors Reset 100---109 Color Motor Reset 110---119 Gobo Motor Reset 120---129 Shutter & Dimmer Motors Reset 130---139 Other Motors Reset 140---149 Enable Blackout While Pan/Tilt Movement 150---159 Disable Blackout While Pan/Tilt Movement 160---169...
  • Page 14 30---31 Color6 + Color7 32---33 Color7 34---36 Color7 + Color8 37---38 Color8 39---40 Color8 + Color9 41---43 Color9 44---45 Color9 + Color10 46---47 Color10 48---49 Color10 + Color11 50---52 Color11 53---54 Color11 + Color12 55---56 Color12 57---58 Color12 + Color13 59---61 Color13 62---63...
  • Page 15 0---8 9---16 Pattern Macro 1 17---25 Pattern Macro 2 26---33 Pattern Macro 3 34---42 Pattern Macro 4 43---50 Pattern Macro 5 51---59 Pattern Macro 6 60---67 Pattern Macro 7 68---76 Pattern Macro 8 77---84 Pattern Macro 9 85---93 Pattern Macro 10 94---101 Pattern Macro 11 102---110...
  • Page 16 0---9 Stop HORIZONTAL 10---120 Horizontal Pattern Movement Left PATTERN 121---144 Stop MOVEMENT 145---255 Horizontal Pattern Movement right 0---9 Stop 10---120 Vertical Pattern Movement Up VERTICAL PATTERN MOVEMENT 121---144 Stop 145---255 Vertical Pattern Movement Dowm 0---127 0---360° 128---191 Clockwise Rotation From Fast To Slow ECCENTRI 192---255 CounterClockwise Rotation From Slow To Fast...

  • Page 17: Maintaining And Cleaning

    7. Maintaining and Cleaning the Light The light is a fixture of very low maintenance. It is only necessary to clean the air inlets and outlets as well as the optical lenses from time to time. For safe operation it is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on, or within the fixture.

  • Page 18: Technical Specifications

    8. Technical Specifications FEATURES Multi Effect Luminaire, Beam, Scanner, Laser Simulator 3° Precision Beam 3 Facet Rotating Prism X / Y and Z High-Speed Mirror System SOURCE YODN 132W 2R Lamp 6,000 Hour Average Life PHOTOMETRIC DATA Measured with 3° Beam Full On 45,010 LUX 4,181 FC @16.4’...

  • Page 19: Dimensions

    APPROVALS / RATINGS RoHs IP20 INSTALLATION Rigging: Clamps (Not Included) Working Position: Any (360°) INCLUDED ITEMS (1) Adjustable Mounting Yoke (1) PowerCON Cable (1) DMX 3pin signal cable 9. Dimensions Length: 14.2 (361mm) Width: 12.0 (305mm) Vertical Height: 11.6 (295mm) Weight: 21.0 lbs.
