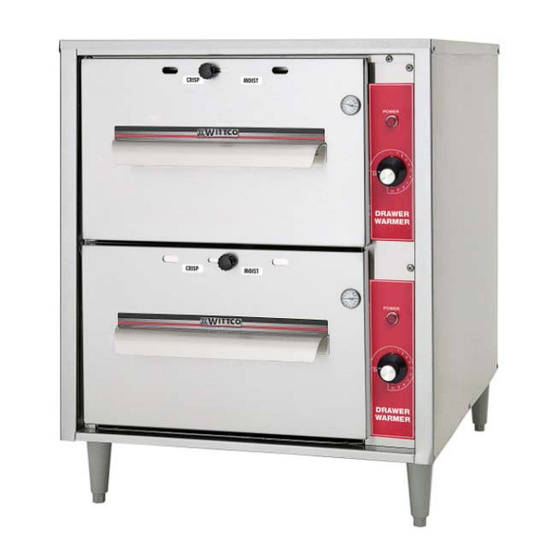

DRAWER WARMERS
CHIP WARMERS
MODELS:
CHIP WARMERS:
200-1-CW
200-2-CW
DRAWER WARMERS:
CAFÉ':
200-1R-C
200-2R-C
200-3R-C
200-4R-C
CAFE' BUILT-IN:
200-1R-BI-C
200-2R-BI-C
200-3R-BI-C
200-3R-BI-C
SLIMLINE LOW PROFILE:
200-1-SL-LP
200-2-SL-LP
R-SERIES:
200-1R
200-2R
200-3R
200-4R
For additional information on WITTCO or to locate an authorized parts
and service provider in your area, visit our website at
WITTCO FOOD SERVICE EQUIPMENT
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
www.wittco.com
INSTALLATION &
OPERATION MANUAL
SLIMLINE BUILT-IN:
200-1-SL-BI
200-2-SL-BI
R-SERIES BUILT-IN:
200-1R-BI
200-2R-BI
200-3R-BI
200-4R-BI
© 2010 Wittco Foodservice Equipment
www.wittco.com
7737 NORTH 81 STREET
MILWAUKEE, WI 53223
F-41015 (07-10)
Advertisement
Table of Contents
Related Manuals for Wittco 200-1-CW
Summary of Contents for Wittco 200-1-CW
- Page 1 200-2R-BI 200-3R 200-3R-BI 200-4R 200-4R-BI For additional information on WITTCO or to locate an authorized parts and service provider in your area, visit our website at www.wittco.com WITTCO FOOD SERVICE EQUIPMENT 7737 NORTH 81 STREET DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC MILWAUKEE, WI 53223 www.wittco.com...
-
Page 2: Important For Your Safety
DRAWER & CHIP WARMERS F-41015 (07-10) IMPORTANT FOR YOUR SAFETY THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL ELECTRICAL EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START- UP AND ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL. FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITYOF THIS OR ANY OTHER APPLIANCE. -
Page 3: Table Of Contents
DRAWER & CHIP WARMERS F-41015 (07-10) TABLE OF CONTENTS IMPORTANT FOR YOUR SAFETY ........1 GENERAL . -
Page 4: General
INTRODUCTION damaged, save packaging material and contact the carrier WITTCO Drawer Warmers and Chip within 15 days of delivery. Warmers are produced with quality workmanship and material. Proper Carefully unpack warmer and place in a installation, usage, and maintenance of work accessible area. -
Page 5: Trim Kit Installation
DRAWER & CHIP WARMERS F-41015 (07-10) Trim Kit has 4 mounting holes. TRIM KIT INSTALLATION There are two holes on the bottom and two holes on the top. Models: 200-1R-BI-C, 200-2R-BI-C, 200-3R-BI-C, 200-4R-BI-C, 200-1R-BI, 200-2R-BI, 200-3R-BI, 200-4R-BI. Built-in Drawer Warmers come with a “trim kit.”... -
Page 6: Electrical Requirements
DRAWER & CHIP WARMERS F-41015 (07-10) ELECTRICAL REQUIREMENTS warmers equipped with a three-prong plug. It is imperative that this plug must be ELECTRICAL CODES & STANDARDS: connected into a properly grounded The warmer must be installed in three-prong receptacle. accordance with: receptacle proper grounding... -
Page 7: Specifications
WIDTH IN MODEL IN (mm) IN (mm) (mm) Lb. (kg) VOLTS WATTS AMPS 21.5" 21.75" 34 " 127 # 200-1-CW 546 mm 552 mm 864 mm 58 kg 3.96 34" 21.75" 34 " 199 # 200-2-CW 864 mm 552 mm... -
Page 8: Operation
DRAWER & CHIP WARMERS F-41015 (07-10) OPERATION POWER LIGHT CONTROLS The Warmer and its parts are hot. Be very careful when operating, cleaning, or servicing the warmer. The warmer Control Panel contains an operating indicator light and a full range thermostat. - Page 9 DRAWER & CHIP WARMERS F-41015 (07-10) to cycle. During this period, the red The operator should always monitor operating indicator light will turn on and the food product to insure that it off as the heating elements cycle. remains at proper temperatures. The thermometer, which is located on the drawer of the warmer (Fig.
-
Page 10: Cleaning
DRAWER & CHIP WARMERS F-41015 (07-10) CLEANING STAINLESS STEEL CARE The Warmer and its parts are hot. Be very careful when operating, cleaning, or servicing the CLEANING: warmer. Stainless Steel contains 70 – 80% iron, which will rust if not properly maintained. Unplug electrical Stainless Steel also contains 12 –... -
Page 11: Maintenance
DRAWER & CHIP WARMERS F-41015 (07-10) PRESERVING & RESTORING: HEAT TINT: Special stainless steel polishing Darkened areas, called “heat tint,” may cleaners can preserve and restore the appear on stainless steel exposed to protective film. excessive heat. Excessive heat causes the protective film to thicken. -
Page 12: Troubleshooting
Provider. SERVICE & PARTS INFORMATION To obtain Service and Parts information concerning this model, contact WITTCO Service Department at the address listed on the front cover of this manual or refer to our website: www.wittco.com for a complete listing of Authorized Service and Parts depots. -
Page 13: Wiring Diagrams
DRAWER & CHIP WARMERS F-41015 (07-10) WIRING DIAGRAMS 200-1-CW, 200-1R-C, 200-1R-BI-C, 200-1R, 200-1R-BI... - Page 14 DRAWER & CHIP WARMERS F-41015 (07-10) 200-1-SL, 200-1-SL-BI...
- Page 15 DRAWER & CHIP WARMERS F-41015 (07-10) 200-2-CW, 200-2R-C,200-2R-BI-C, 200-2R, 200-2R-BI...
- Page 16 DRAWER & CHIP WARMERS F-41015 (07-10) 200-2-SL, 200-2-SL-BI...
- Page 17 DRAWER & CHIP WARMERS F-41015 (07-10) 200-3R-C, 200-3R-BI-C, 200-3R, 200-3R-BI...
- Page 18 DRAWER & CHIP WARMERS F-41015 (07-10) 200-4R-C, 200-4R-BI-C, 200-4R, 200-4R-BI...
