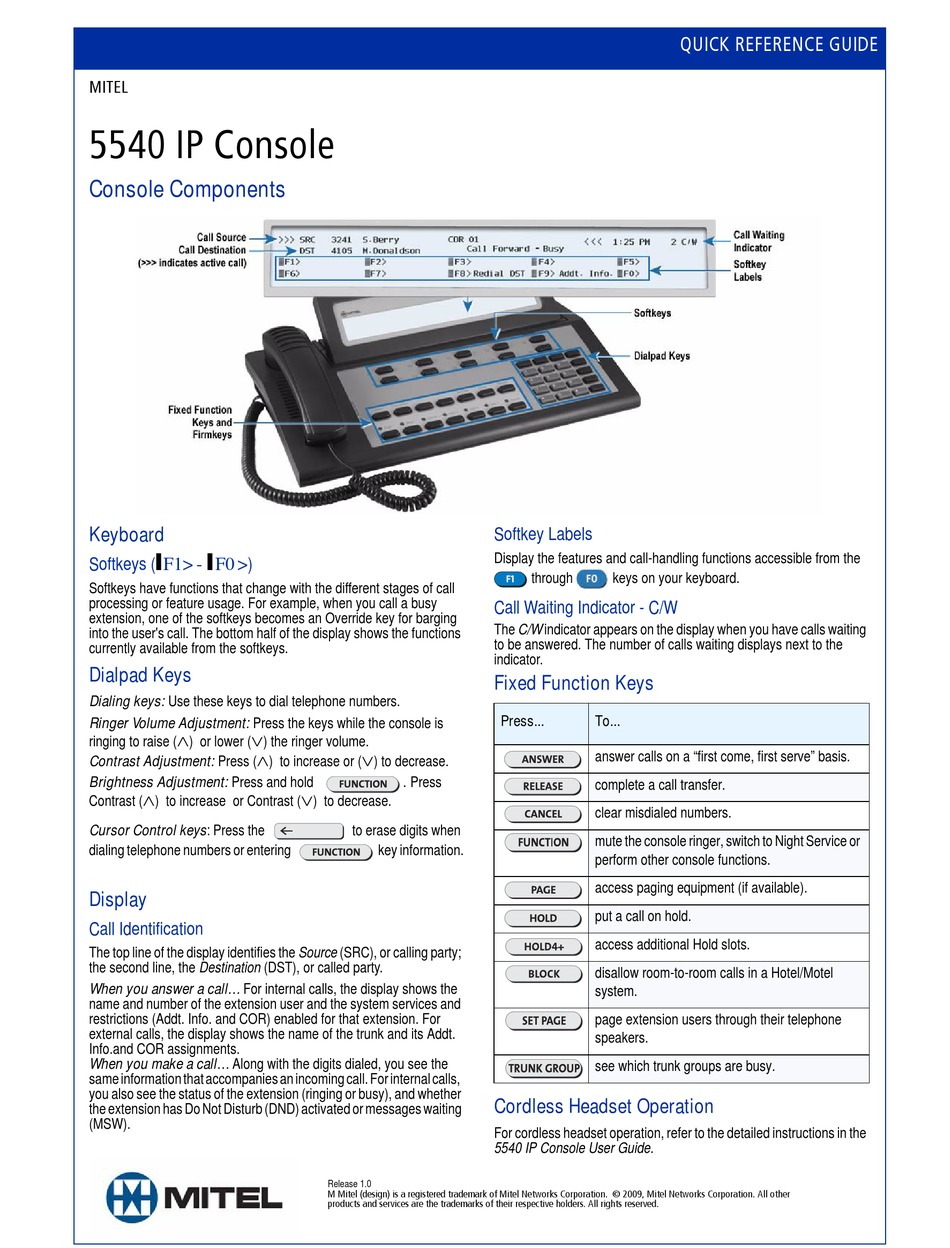

Mitel 5540 Quick Reference Manual

jfqbi
RRQM=fm=`çåëçäÉ

Console Components

Keyboard
Softkeys ( F1> - F0 >)
Softkeys have functions that change with the different stages of call
processing or feature usage. For example, when you call a busy
extension, one of the softkeys becomes an Override key for barging
into the user's call. The bottom half of the display shows the functions
currently available from the softkeys.

Dialpad Keys

Dialing keys: Use these keys to dial telephone numbers.
Ringer Volume Adjustment: Press the keys while the console is
∧ ∨
ringing to raise ( ) or lower ( ) the ringer volume.
∧
Contrast Adjustment: Press ( ) to increase or (
Brightness Adjustment: Press and hold
∧
Contrast ( ) to increase or Contrast (
Cursor Control keys: Press the
dialing telephone numbers or entering
Display
Call Identification
The top line of the display identifies the Source (SRC), or calling party;
the second line, the Destination (DST), or called party.
When you answer a call... For internal calls, the display shows the
name and number of the extension user and the system services and
restrictions (Addt. Info. and COR) enabled for that extension. For
external calls, the display shows the name of the trunk and its Addt.
Info.and COR assignments.
When you make a call... Along with the digits dialed, you see the
same information that accompanies an incoming call. For internal calls,
you also see the status of the extension (ringing or busy), and whether
the extension has Do Not Disturb (DND) activated or messages waiting
(MSW).
∨
) to decrease.
. Press
∨
) to decrease.
to erase digits when
key information.
Release 1.0
j=jáíÉä=EÇÉëáÖåF=áë=~=êÉÖáëíÉêÉÇ=íê~ÇÉã~êâ=çÑ=jáíÉä=kÉíïçêâë=`çêéçê~íáçåK==«=OMMVI=jáíÉä=kÉíïçêâë=`çêéçê~íáçåK=^ää=çíÜÉê=
éêçÇìÅíë=~åÇ=ëÉêîáÅÉë=~êÉ=íÜÉ=íê~ÇÉã~êâë=çÑ=íÜÉáê=êÉëéÉÅíáîÉ=ÜçäÇÉêëK=^ää=êáÖÜíë=êÉëÉêîÉÇK

Softkey Labels

Display the features and call-handling functions accessible from the
through keys on your keyboard.
Call Waiting Indicator - C/W
The C/W indicator appears on the display when you have calls waiting
to be answered. The number of calls waiting displays next to the
indicator.

Fixed Function Keys

Press... To...
answer calls on a "first come, first serve" basis.
complete a call transfer.
clear misdialed numbers.
mute the console ringer, switch to Night Service or
perform other console functions.
access paging equipment (if available).
put a call on hold.
access additional Hold slots.
disallow room-to-room calls in a Hotel/Motel
system.
page extension users through their telephone
speakers.
see which trunk groups are busy.
Cordless Headset Operation
For cordless headset operation, refer to the detailed instructions in the
5540 IP Console User Guide.
nrf`h=obcbobk`b=drfab=
