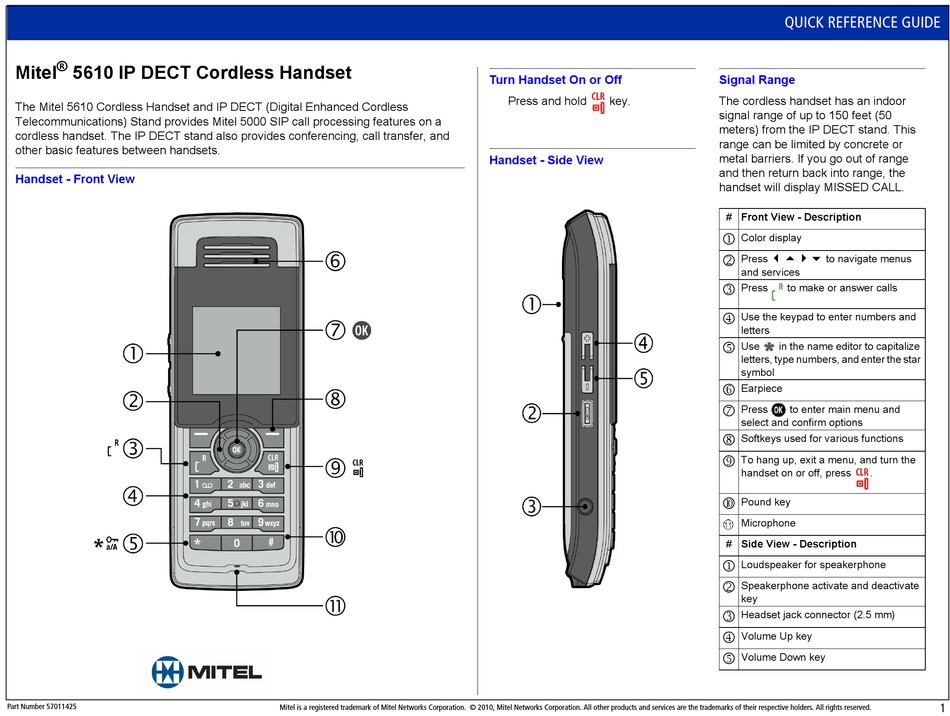

Mitel 5610 Quick Reference Manual

®

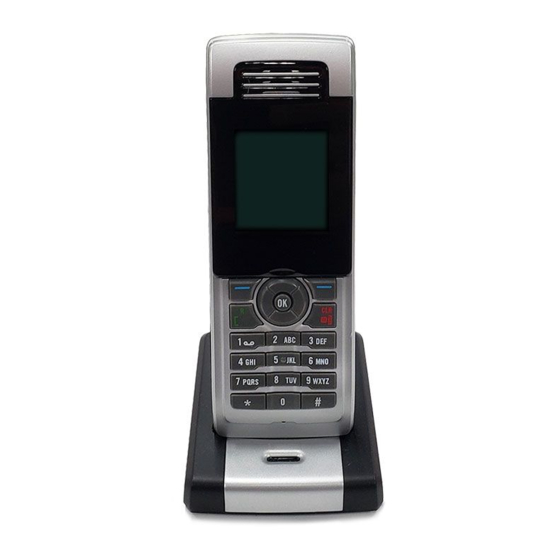

Mitel 5610 IP DECT Cordless Handset
The Mitel 5610 Cordless Handset and IP DECT (Digital Enhanced Cordless
Telecommunications) Stand provides Mitel 5000 SIP call processing features on a
cordless handset. The IP DECT stand also provides conferencing, call transfer, and
other basic features between handsets.
Handset - Front View
Part Number 57011425
Mitel is a registered trademark of Mitel Networks Corporation. © 2010, Mitel Networks Corporation. All other products and services are the trademarks of their respective holders. All rights reserved.
Turn Handset On or Off
Press and hold key.
Handset - Side View
QUICK REFERENCE GUIDE
Signal Range
The cordless handset has an indoor
signal range of up to 150 feet (50
meters) from the IP DECT stand. This
range can be limited by concrete or
metal barriers. If you go out of range
and then return back into range, the
handset will display MISSED CALL.
# Front View - Description
1 Color display
2
Press to navigate menus
and services
3
Press to make or answer calls
4 Use the keypad to enter numbers and
letters
5 Use in the name editor to capitalize
letters, type numbers, and enter the star
symbol
6 Earpiece
7
Press to enter main menu and
select and confirm options
8 Softkeys used for various functions
9
To hang up, exit a menu, and turn the
handset on or off, press .
Pound key
Microphone
# Side View - Description
1 Loudspeaker for speakerphone
2 Speakerphone activate and deactivate
key
3 Headset jack connector (2.5 mm)
4 Volume Up key
5 Volume Down key
1
