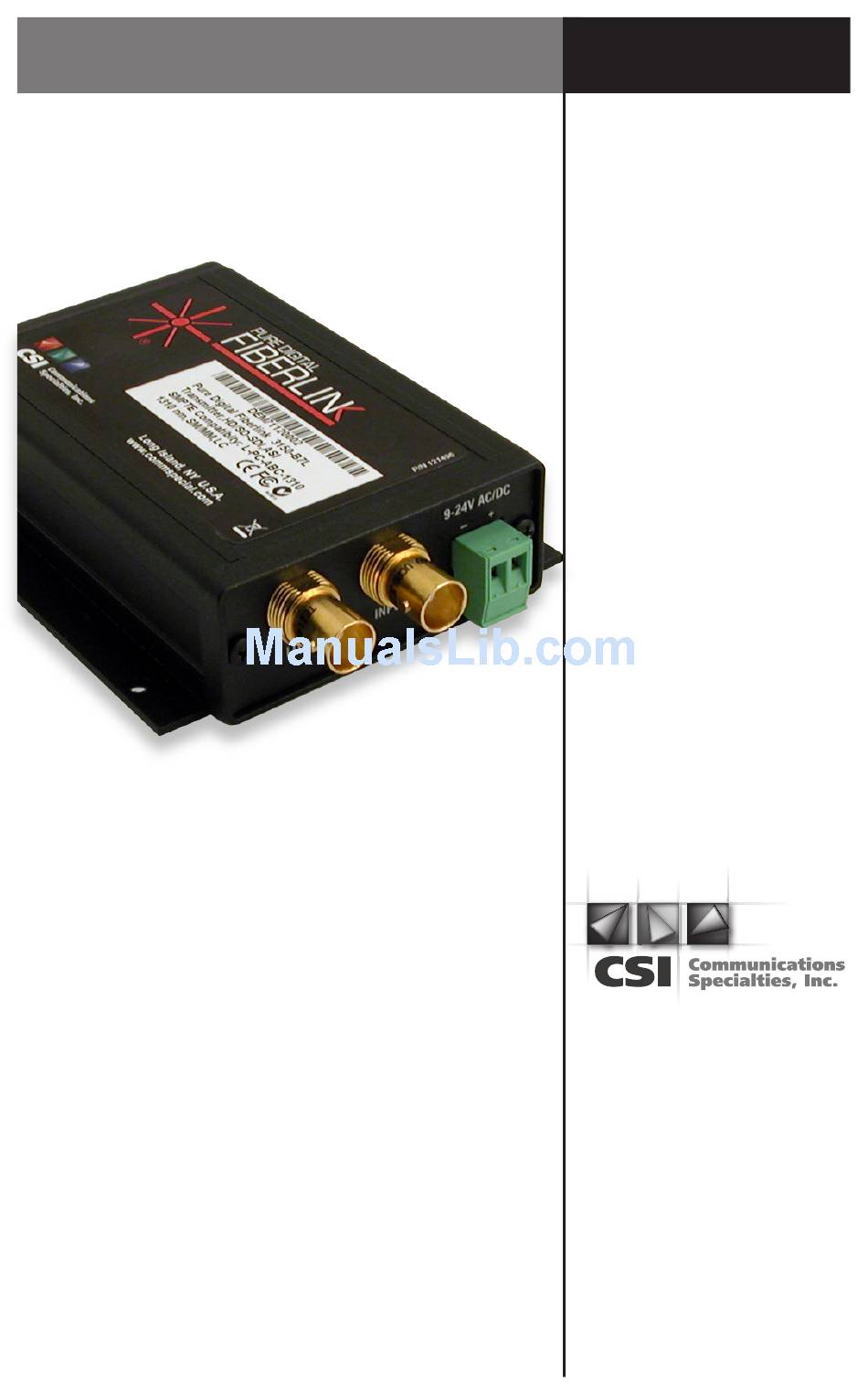

Communications Specialties' Pure Digital Fiberlink® 3150
Pure Digital Fiberlink®
3150 Series
HD/SD-SDI Transmission over one
single mode or multimode fiber.
User's Manual
Broadcast quality HD/SD-SDI
transmission over one single
mode or multimode fiber.
The 3150 Series offers two
re-clocked and equalized
outputs, SMPTE 297
compliance for interfacing
with other devices, and
the signal fidelity you have
come to expect from
Pure Digital Fiberlink®!
World Headquarters
55 Cabot Court
Hauppauge, New York 11788 USA
Tel:
(631) 273-0404
Fax: (631) 273-1638
info@commspecial.com
Asia
Communications Specialties Pte Ltd
100 Beach Road
#22-09 Shaw Tower
Singapore 189702
Tel:
+65 6391 8790
Fax: +65 6396 0138
csiasia@commspecial.com
commspecial.com
Advertisement
Table of Contents
Related Manuals for CSI Pure Digital Fiberlink 3150 Series
Summary of Contents for CSI Pure Digital Fiberlink 3150 Series
- Page 1 User’s Manual Communications Specialties’ Pure Digital Fiberlink® 3150 Broadcast quality HD/SD-SDI transmission over one single mode or multimode fiber. The 3150 Series offers two re-clocked and equalized outputs, SMPTE 297 compliance for interfacing with other devices, and the signal fidelity you have come to expect from Pure Digital Fiberlink®! Pure Digital Fiberlink®...
-
Page 2: Table Of Contents
Contents Pure Digital Fiberlink® 3150 Series Contents Welcome ..............3 Features . -
Page 3: Welcome
• Wide operating temperature range: -10º C to +50º C • Available in Box and Card versions • Card version compatible with the Fiberlink® 6000A Rack Card Cage • Designed and Manufactured in the USA by CSI Package Contents • One Pure Digital Fiberlink® 3150 or 3151 •... -
Page 4: Technical Specifications
Technical Specifications Pure Digital Fiberlink® 3150 Series Technical Specifications Model Part Number Specification Unit Type Part Number Transmitter Box 3150-B7L Transmitter Rack Card 3150-C7L Receiver Box 3151-B7L Receiver Rack Card 3151-C7L General Specifications Indicators Power, HD data rate lock, SD/DVB-ASI data rate lock, Alarm (Card version) Box Version Dimensions 5.21x3.50x1.15 (in) -
Page 5: Receiver Specifications
Technical Specifications Pure Digital Fiberlink® 3150 Series Technical Specifications 3150 Transmitter Specifications (cont.) Serial Video BNC Loop Through Output Number of outputs 1 BNC, 75 Ohms Signal Level 800mv ±10% DC Offset 0V ±0.5V Rise/Fall Time <270ps at 1.485 Gbps per SMPTE 292; 0.4 to 1.5ns at 270 Mbps per SMPTE 259M Overshoot... -
Page 6: Operating Loss Budgets
*Distance specifications are approximate, based upon connecting a 3150 Transmitter to a 3150 Receiver, and are not guaranteed. CSI cannot estimate or guarantee operating loss budgets when the 3150 Series is used with other, non-Fiberlink devices. Operating loss budget must not be exceeded. -
Page 7: Installation Instructions
Installation Instructions Pure Digital Fiberlink® 3150 Series Installation Instructions The Pure Digital Fiberlink® 3150 Series of fiber optic transmission systems are ready for immediate use and do not require any special tools or equipment. However, an Optical Power Meter, such as the Fiberlink® 6615, can be useful in determining optical loss budgets during your systems design and maintenance. -
Page 8: Alarm Switch Settings & Options
Alarm Switch Settings & Options Pure Digital Fiberlink® 3150 Series Alarm Switch Settings & Options The Rack Card version of this product has an additional red indicator LED that illuminates when an alarm condition exists. The rack card unit also provides an output to drive a model 6020A Alarm Sensing Module which provides an audible tone and activates a set of contacts for external signaling purposes. -
Page 9: Indicator Leds
Technical Specifications Pure Digital Fiberlink® 3150 Series Indicator LEDs The Pure Digital Fiberlink® 3150 Series has three integral indicator LEDs that are used to monitor the state of the unit. Card versions have an additional Alarm LED. Transmitter LEDs Status Definition Power Indicates that correct power has been applied. -
Page 10: Operating Pointers
Operating Pointers | Troubleshooting Pure Digital Fiberlink® 3150 Series Operating Pointers The 3150 Series is available in versions that operate with 62.5u and 50u multimode (MM) and single mode (SM) optical fibers. Be certain that the correct size fiber is being used for this particular transmitter/receiver combination. -
Page 11: Maintenance And Repairs
Maintenance and Repairs | Certifications Pure Digital Fiberlink® 3150 Series Maintenance and Repairs The Pure Digital Fiberlink® 3150 Series has been manufactured using the latest semicon- ductor devices and techniques that electronic technology has to offer. They have been designed for long, reliable and trouble-free service and are not normally field repairable. Should difficulty be encountered, Communications Specialties maintains a complete service facility to render accurate, timely and reliable service of all products. -
Page 12: Warranty
CSI at the expense and risk of the Buyer. CSI’s obligation under this warranty will be limited, at its option, to either the repair or replacement of defective units, including free materials and labor. In no event shall CSI be responsible for any incidental or consequential damages or loss of profits or goodwill. -
Page 13: Accessories And Related Products
Accessories and Related Products Pure Digital Fiberlink® 3150 Series Fiberlink® 6610 Visible Light Source The Fiberlink® Visible Light Source provides a visible 650 nm laser output that can be used for identifying fiber breaks and individual fibers within fiber bundles, allowing for convenient, on-site testing of fiber networks during construction and maintenance procedures. - Page 14 Accessories and Related Products Pure Digital Fiberlink® 3150 Series Blue Broadcast the best results. White Black DVI Computer Video to HD/SD-SDI Scan Converter with Genlock Input and Fiber Optic Output The all-digital Scan Do® HD converts DVI input, at resolutions up to 1920 x 1200, to high definition (HD) or standard definition (SD) SDI output, providing broadcast- quality video images.
- Page 15 Pure Digital Fiberlink® 3150 Series Pure Digital Fiberlink® 3150 Series User’s Manual Page 15...
- Page 16 All Rights Reserved. Scan Do, Pure Digital Fiberlink and the starburst logo are registered trademarks of Communications Specialties, Inc. CSI and the triangle designs are trademarks of Communications Specialties, Inc. P/N 127259 Rev. A If y ©2005 Spectra Vision Productions, Inc.
