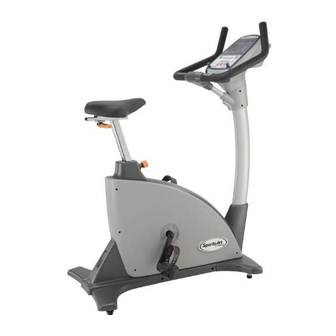

SportsArt Fitness Upright Bike C520U Owner's Manual
  1. Manuals
  2. Brands
  3. SportsArt Fitness Manuals
  4. Exercise Bike
  5. Upright Bike C520U
  6. Owner's manual

SportsArt Fitness Upright Bike C520U Owner's Manual

Sportsart c520u upright bike owner's manual
Hide thumbs Also See for Upright Bike C520U:
Table of Contents

Advertisement

Quick Links

See also: Repair Manual

TABLE OF CONTENTS

1. INTRODUCTION....................................................................................................
2. IMPORTANT SAFETY PRECAUTIONS ...............................................................
List of Parts............................................................................................................
Unit Assembly Procedure......................................................................................
Seat Adjustment Procedure....................................................................................
Seat Forward/Backward Adjustment......................................................................
Display Windows...................................................................................................
Operating the C520 Bike........................................................................................
Program Functions.................................................................................................
Internal Settings.....................................................................................................
5. USER PARAMETER SETTING............................................................................
6. MAINTAINING THE BIKE.......................................................................................
How long should I exercise .................................................................................
How often should I exercise.................................................................................
Procedure to Replace a Fuse...............................................................................
9. WIRING SCHEMATIC...........................................................................................
1
2
4
6
12
13
14
17
20
22
23
24
24
24
25
26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Upright Bike C520U and is the answer not in the manual?

Questions and answers

Related Manuals for SportsArt Fitness Upright Bike C520U

Summary of Contents for SportsArt Fitness Upright Bike C520U

  • Page 1: Table Of Contents

    SPORTSART C520U UPRIGHT BIKE TABLE OF CONTENTS 1. INTRODUCTION... 2. IMPORTANT SAFETY PRECAUTIONS ... 3. ASSEMBLING YOUR BIKE List of Parts... Unit Assembly Procedure... Seat Adjustment Procedure... Seat Forward/Backward Adjustment... 4. UNDERSTANDING THE C520U DISPLAY CONSOLE Display Windows... Operating the C520 Bike... Program Functions...

  • Page 2: Sportsart C520U Upright Bike

    SPORTSART C520U UPRIGHT BIKE INTRODUCTION Congratulations on purchasing one of the finest pieces of exercise equipment on the market today, the SportsArt C520U Upright Bike. Constructed of high quality materials and designed for years of trouble-free usage, the C520U will be an integral part of your fitness regimen.

  • Page 3: Important Safety Precautions

    Your SportsArt bike was designed and built for optimum safety. However, certain precautions apply whenever you use your bike. Please read the entire manual before assembly and operation. Also, please note the following safety precautions: IMPORTANT SAFETY PRECAUTIONS Please read and observe the following safety guidelines: ‧...
  • Page 4 ‧The weight limit for this bike is 150 kgs (330 lbs). Caution Before beginning any exercise program, you should consult with your doctor. It is recommended that you undergo a complete physical examination.

  • Page 5: Assembling Your Bike

    ASSEMBLING YOUR BIKE Thank you for purchasing our product. Even though we go to great efforts to ensure the quality of each product, occasional errors and/or omissions do occur. Please contact your dealer if you find this product to be defective or missing a part. Please read this owner's manual and follow the instructions.
  • Page 6 1. Pedestal 2. Pedestal cover 3. Right pedal 4. Main frame 5. Rear support 6. Rear support cover 7. Left pedal 8. Seat bottom 9. Handlebar mount lower cover 10. Handlebars 11. Handlebar mount upper cover 12. Hardware kit...

  • Page 7: Unit Assembly Procedure

    Unit Assembly Procedure STEP 1. For the following, please refer to Figure 1. the unit frame. A, B, C, D to make room for the rear support cover. Slide the rear support cover into place. Then secure those screws. Note: Hold the rear support cover at a 5-degree angle while inserting it into the frame. Press lightly at G to insert the top into both sides of the cover.
  • Page 8 STEP 2. First slip the pedestal cover onto the pedestal. Position the data cable for safety. Then insert the pedestal onto its mount. Lightly tighten bolts A into the lower holes (at position D) to secure the pedestal. Do not fully tighten these bolts.
  • Page 9 STEP 3. Hold the handlebars in place on the frame while securing the handlebar bolts. Then secure the upper and lower handlebar mount covers. See Figures 7 and 8. Fig.7 Fig.8...
  • Page 10 STEP 4. Be very careful in securing pedals to the pedal cranks. Otherwise, pedals and crank threads can easily become stripped and must be replaced. Note that left and right side designations refer to the user's left and right sides, as the person exercises on the bike.
  • Page 11 STEP 5. Secure the seat bottom into place. See Figure 10. Flat washer Spring washer Fig. A Fig.10...
  • Page 12 STEP 6. Level the bike as follows to ensure that it does not wobble. Rotate rubber leveler feet up or down as needed to stabilize the bike. Then rotate leveler nuts upward, against the frame, to secure this position. See Figure 11. Fig.11...

  • Page 13: Seat Adjustment Procedure

    Seat Adjustment Procedure To raise the seat height, turn the seat adjustment knob counterclockwise to loosen it, then pull the seat up. See Figure 12. Fig.12 To lower the seat height, do the following: 1. Pull the adjustment knob out, toward the pedestal, then push the seat down. 2.

  • Page 14: Seat Forward/Backward Adjustment

    Seat Forward/Backward Adjustment 1. Push the seat adjustment lever downward as shown in Fig. 14. 2. Move the seat bottom forward or backward as desired. Then pull the seat adjustment lever upward to secure the seat in place. See Fig. 15. Fig.14 Fig.15...

  • Page 15: Understanding The C520U Display Console Display Windows

    UNDERSTANDING THE C520U DISPLAY CONSOLE Display Windows The C520U is designed for user convenience. With better feedback about your workout, you get better results. The following explains the display key and window functions. Please read this manual, understand the display functions, and thereby get optimum enjoyment and benefit from this product.
  • Page 16 Display Function Overview ˙ Windows: ■ － 65% HR TARGET ■ － HEART RATE shows actual heart rate. ■ － 80% HR TARGET ■ WORKOUT ILLUSTRATION ■ FEEDBACK WINDOW ■ － LEDs light to indicate active programs, active feedback, scan mode, selection confirmation, and body areas being exercised.
  • Page 17 2. In any circumstance, Hold the STOP key for three seconds to go back to the start up banner screen. ˙Display Setting Ranges ˙ WORKOUT LEVEL (resistance): 1 ~ 20 ˙ ～ ： TIME: 00 99 59; setting range: 5:00 ~ 99:00. (After 99:00, 0 appears) ˙...

  • Page 18: Operating The C520 Bike

    Operating the C520U Bike Start: Press the START key or press the QUICK START key, or simply start pedaling (over 30 RPM). The startup banner "SPORTSART C520" appears. QUICK START 1. At the startup banner, press the QUICK START key. Quick start mode uses the default assumption of a 35-year-old, 165-lb/75-Kg user to calculate calorie and other feedback values.
  • Page 19 ＜▲ ＞ ˙ Use any confirm your choice. (B) To set up a personalized user ID This function allows users to establish a user ID with up to 11 characters. ˙ When an USER ID appears, press the CHANGE key continuously for three seconds to change the USER ID.
  • Page 20 3. To select a workout program (A) Press the workout program key. The related program indicator lights up. Then press the ENTER key to confirm your choice and proceed to the TME setting. (B) When exercising, press the Zone TRAINER key to enter the heart rate control (HRC) mode.

  • Page 21: Program Functions

    Program Functions 1. TRACK The TRACK function represents a running track. One lap is 400 Meters or 1/4 Mile. The user can manually adjust resistance and stride. 2. HILL The HILL program contains three hill patterns to choose from. A different pattern appears each time the HILL key is pressed: HILL 1, HILL 2, HILL 3.
  • Page 22 (B) At the start of the exercise or while exercising, if the user's heart rate is not detected, the message "NO HEART RATE READING, PLEASE CHECK TRANSMITTER" appears. At this time, while no heart rate is detected, resistance can only be adjusted manually. (C) When heart rate control starts operating, a message like the one below appears: HR indicator flashes...

  • Page 23: Internal Settings

    Internal Settings Internal settings determine basic operating conditions, for example, units of measure. To access internal settings, at the startup banner hold the CHANGE key for three seconds. 1. Follow the steps below to change internal settings. (1) Determining Metric/American standard units of measure The feedback windows show the present setting.

  • Page 24: User Parameter Setting

    USER PARAMETER SETTING To check system default settings, at initial setting stage (select PROGRAM or QUICK START), hold the CHANGE key for 3 seconds: 1) Unit of Speed (MPH or KPH): press ENTER to confirm your choice and to see the next setting. You may also press STOP to leave this setting.

  • Page 25: Maintaining The Bike

    MAINTAINING THE C520U BIKE The Sports Art C520U requires little maintenance but regular cleaning is recommended to keep your bike at peak performance. Before your workout, use a dry cloth to clean the surface of the display. NOTE: NEVER POUR LIQUIDS ON THE DISPLAY. To clean plastic parts, use a mild detergent, and make sure the unit is completely dry before operating it.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Procedure to Replace a Fuse To remove a fuse, press the fuse cap in, then turn it counterclockwise. The fuse and cap will spring out. Remove the burnt fuse from the fuse cap. Insert a new fuse of the same type into the fuse holder. Insert the fuse holder into its socket and turn it clockwise to secure it.

  • Page 27: Wiring Schematic

    WIRING SCHEMATIC Receiver board Battery chargert Generating set An clectromagnet Your Authorized SPORTS ART Distributor C520U CON2 C520U CTL Board CON3 C520U DRIVER BOARD Speed Sensor Battery...
