Mintek DTV-373-D Owner's Manual

37" lcd hdtv with built-in dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

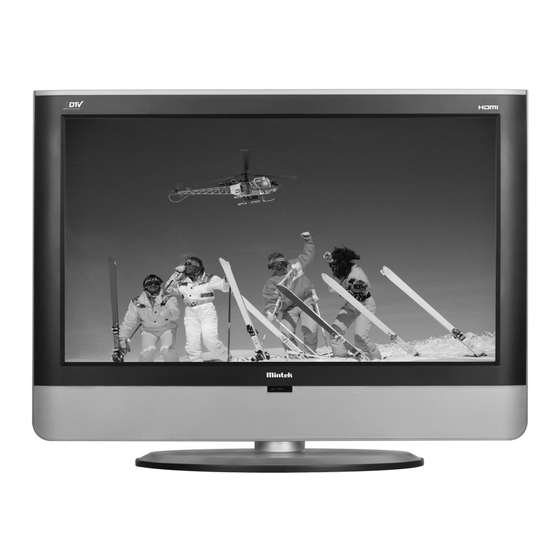

37" LCD HDTV
With Built-in DVD Player
DTV-373-D
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTV-373-D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mintek DTV-373-D

Summary of Contents for Mintek DTV-373-D

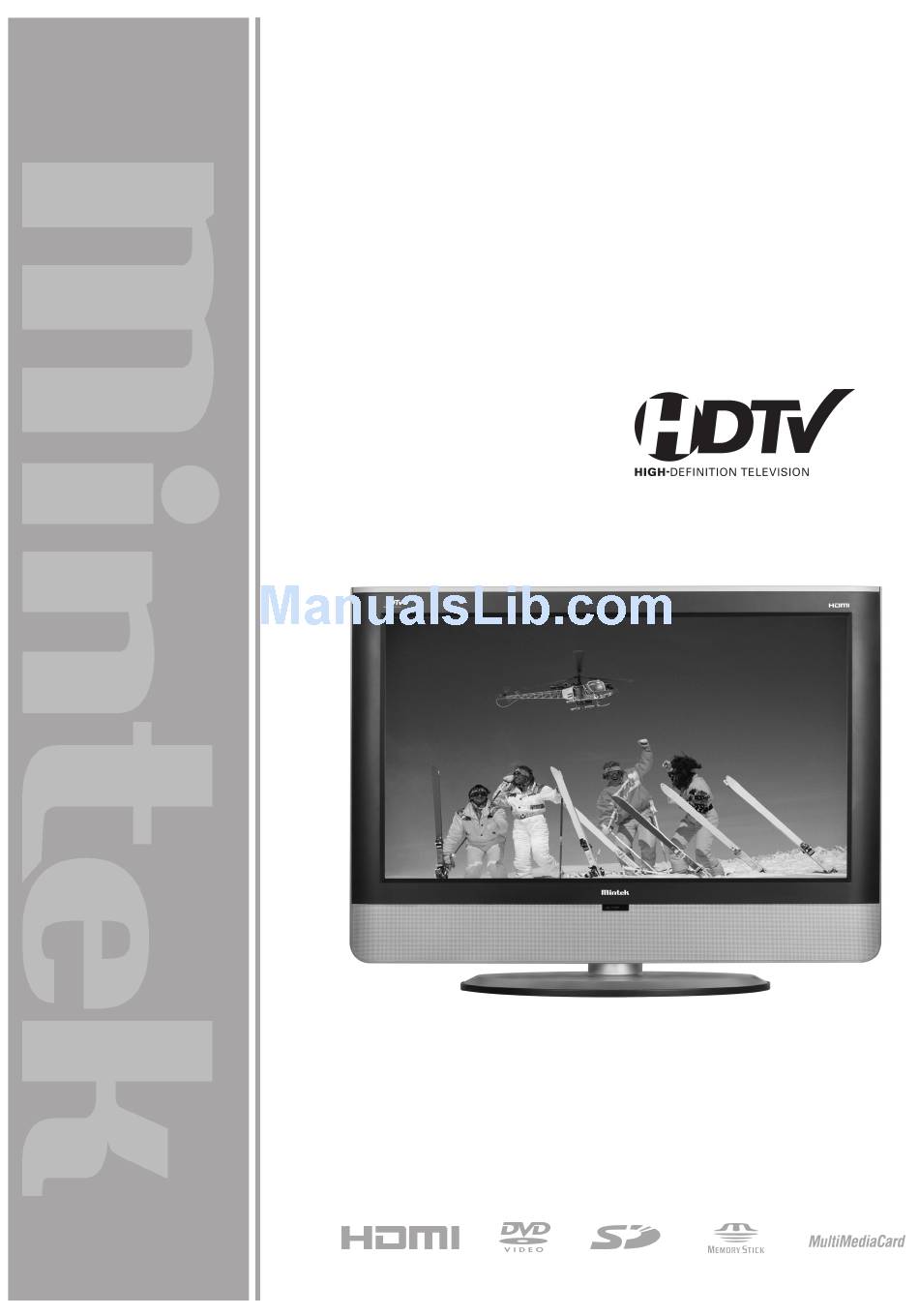

  • Page 1 37" LCD HDTV With Built-in DVD Player DTV-373-D OWNER'S MANUAL...

  • Page 2: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS • If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, Iocation of antenna-discharge unit, connection to grounding electrodes,and requirements for the grounding electrode.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS (FOR TV TUNER) IMPORTANT INFORMATION IMPORTANT SAFETY PRECAUTIONS SUPPLIED ACCESSORIES PREPARATION INSERTING BATTERIES INTO THE REMOTE CONTROL ● USING THE REMOTE CONTROL UNIT ● CAUTIONS REGARDING REMOTE CONTROL UNIT ● DISPLAY FRONT VIEW ● REAR VIEW ● REMOTE CONTROL CONNECTIONS BASIC OPERATIONS...
  • Page 4 TABLE OF CONTENTS (FOR DVD PLAYER) BASIC OPERATIONS PLAY DISCS ● PAUSE ● ● VOLUME CONTROL ● DVD MENU PLAY ● SELECT WITH NUMBER BUTTONS ● PLAY DISCS IN VARIOUS WAYS AUDIO MODE ● MUTE ● FAST PLAY ● REPEAT PLAY ●...

  • Page 5: Important Information

    IMPORTANT INFORMATION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ''dangerous voltage'' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 6: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS The present set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in the present unit will protect you if you observe the following procedures in installing, using and servicing. The present unit is fully transistorized and does not contain any element that can be repaired by the user.
  • Page 7 IMPORTANT SAFETY PRECAUTIONS f) When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing. 12. Replacement parts - In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts.

  • Page 8: Supplied Accessories

    Component Video Cable or TV/DVD VIDEO S.MODE 10 0 FAVORITE MTS/SAP MUTE FLASHBACK MENU /USB/CARD NEXT ZOOM SETUP AUDIO REPEAT EJECT VIEW MODE VIEW MODE RC-600 page4 Y/Pb/Pr cable 37" LCD HDTV With Built-in DVD Player DTV-373-D OWNER'S MANUAL User guide...

  • Page 9: Preparation

    PREPARATION INSERTING BATTERIES INTO THE REMOTE CONTROL Insert supplied batteries via the battery compartment on the back of the remote control. Make sure polarity matches the (+) and (-) marks inside the compartment. USING THE REMOTE CONTROL UNIT TV/DVD VIDEO P.MODE S.MODE 10 0...

  • Page 10: Display

    DISPLAY FRONT VIEW 1) MULTI MEDIA CARD/SD/MEMORY STICK CARD SLOT 2) DISC SLOT: Insert a DVD or CD disc to play under DVD status. In other status, insert a disc to change to DVD status. 3) DVD/CARD: In DVD mode, use to shift between DVD and CARD. In other mode, press to change to DVD mode directly.

  • Page 11: Rear View

    DISPLAY REAR VIEW HDMI 1 HDMI 1 HDMI 2 HDMI 2 ANT. IN ANT. IN INPUT INPUT INPUT INPUT 1) Antenna Input 2) HDMI 1 Input 3) HDMI 2 Input 4) Component Video (Y、P 5) Audio Output 6) INPUT1(Composite Video, S-Video and Audio Input) 7) RS-232 Terminal 8) INPUT2 (Composite Video, S-Video and Audio Input) AUDIO...

  • Page 12: Remote Control

    REMOTE CONTROL 1) POWER: Use to turn the unit on and off. 2) EPG: Use to bring up the EPG menu. 3) TV: Press to change to TV mode directly. 4) Number Buttons: Use to set the channel numbers. Dot Button: In Digital TV mode, there can be several TV programs in a channel, use the number buttons and the dot button to enter.

  • Page 13: Remote Control

    REMOTE CONTROL 8) Cursor Buttons ( 9) OK: Use to confirm your selections. 10) DVD TITLE: Use to bring up the DVD title menu. 11) STOP: Use to stop the DVD playback. : Press to skip to the previous chapter or track. : Press to skip to the next chapter or track.

  • Page 14: Connections

    CONNECTIONS HDMI 1 HDMI 1 ANT. IN ANT. IN INPUT INPUT DVI Audio Cable AUDIO AUDIO VIDEO VIDEO AUDIO AUDIO HDMI 2 HDMI 2 R S 2 3 2 R S 2 3 2 INPUT INPUT AUDIO AUDIO S-VIDEO1 S-VIDEO1 AUDIO AUDIO AV 3 I N P U T...

  • Page 15: System Connections

    DTV-373-D's signal source to "Digital TV" or “Analog TV”. b. Using the RCA Video/Audio input on the back: Connect compatible AV equipment to the DTV-373-D through the Composite Video and Audio input jacks on the back; use the VIDEO button and the buttons to set the DTV-373-D's signal source to "Composite 1".

  • Page 16: Basic Operations

    BASIC OPERATIONS TURN ON THE POWER 1. Press POWER button on the front panel to turn on the TV set. The POWER indicator lights up green. 2. If the STANDBY indicator still lights up red, press POWER on the remote control to turn the TV set on.

  • Page 17: Watching Tv

    WATCHING TV TURN ON THE POWER 1. Press POWER button on the front panel to turn on the TV set. The POWER indicator lights up green. 2. If the STANDBY indicator still lights up red, press POWER on the remote control to turn the TV set on.

  • Page 18: Number Buttons

    WATCHING TV Using number buttons on the remote unit NUMBER BUTTONS Select the channels directly by pressing the number buttons. EXAMPLE: To select a 1-digit channel (e.g. channel 2): Press 2 . ● To select a 2-digit channel (e.g. channel 12): Press 1 ,followed by 2 .

  • Page 19: Simple Button Operation For Changing Volume/Sound

    WATCHING TV SIMPLE BUTTON OPERATION FOR CHANGING VOLUME/SOUND Changing the volume You can change the volume by pressing VOL +/- button. 1. Press VOL+ to increase the volume. 2. Press VOL- to decrease the volume. Using MUTE on the remote control Press MUTE to mute the current sound output.

  • Page 20: Setting Mts/Sap Stereo Mode

    WATCHING TV Setting MTS/SAP stereo mode The System has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi-channel Television Sound (MTS). The System with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information.

  • Page 21: Basic Adjustment Settings

    BASIC ADJUSTMENT SETTINGS VIDEO MENU You can get the satisfied picture by adjusting the following Video menu. Press the VIEDO button to select various signal modes. Press the TV MENU button to enter LCD menu. Press to select "VIDEO MENU", and then press OK or Brightness 1.
  • Page 22 BASIC ADJUSTMENT SETTINGS VIDEO MENU(CONTINUED) Temperature Mode 1. Press to select "Temperature Mode" in "Video" menu. 2. Press to select a Temperature Mode among: Cool, Normal, Warm, and User. When "User" is selected, the screen shows: 3. Press to select "Temperature (R)", "Temperature (G)", "Temperature (B)", and press adjust.

  • Page 23: Audio Menu

    BASIC ADJUSTMENT SETTINGS AUDIO MENU Adjust the quality of the sound through the following Audio menu. Press the VIDEO button to select various signal modes. Press the TV MENU button to enter LCD menu. Press to select "AUDIO MENU", and then press OK or Treble 1.

  • Page 24: Screen Menu

    BASIC ADJUSTMENT SETTINGS SCREEN MENU Use to adjust display mode of the playback picture. Press the VIDEO button to select various signal modes. Press the TV MENU button to enter LCD menu. Press to select "SCREEN MENU", and then press OK or Horizontal Position 1.

  • Page 25: Channel Menu

    BASIC ADJUSTMENT SETTINGS CHANNEL MENU (ONLY DIGITAL TV & ANALOG TV MODE) 1. Press the TV MENU button to enter LCD menu. 2. Press to select "CHANNEL MENU", and then press OK or Favorite Channel 1. Press to select "Favorite Channel" in "Channel" menu. 2.
  • Page 26 BASIC ADJUSTMENT SETTINGS CHANNEL MENU (CONTINUED) Air/Cable 1. Press to select "Air/Cable" in "Channel" menu. 2. Press to shift between Air and Cable. 3. Press TV MENU to exit. Auto Scan 1. Press to select "Auto Scan" in "Channel" menu. 2.

  • Page 27: Setup Menu

    BASIC ADJUSTMENT SETTINGS SETUP MENU 1. Press the TV MENU button to enter LCD menu. 2. Press to select "SETUP MENU", and then press OK or Language 1. Press to select "Language" in "Setup" menu. 2. Press to select a language. 3.

  • Page 28: Closed Caption Menu

    BASIC ADJUSTMENT SETTINGS CLOSED CAPTION MENU Your system is equipped with an internal closed caption decoder; closed caption is the system that allows you to view conversations, narration, and sound effects in TV programs and home videos as subtitles on your display. Only in Digital TV, Analog TV, Composite and S-Video mode, there is Closed Caption menu.
  • Page 29 BASIC ADJUSTMENT SETTINGS CLOSED CAPTION MENU (CONTINUED) Font Style 1. Press to select "Font Style" in "Closed Caption" menu. 2. Press to select a font style among: Default, Style1, Style2, Style3, Style4, Style5, Style6 and Style7. 3. Press TV MENU to exit. Foreground Color 1.

  • Page 30: Parental Menu

    BASIC ADJUSTMENT SETTINGS PARENTAL MENU Only in Digital TV, Analog TV, Composite and S-Video mode, there is Parental menu. 1. Press the TV MENU button to enter LCD menu. 2. Press to select "PARENTAL MENU", and then press OK or The password menu displays.
  • Page 31 BASIC ADJUSTMENT SETTINGS PARENTAL MENU (CONTINUED) Change Password 1. Press to select "Change Password" in "Parental" menu. 2. Press OK to display the Change Password menu. 3. Enter your new password with numbers, then input it again and press OK to confirm. 4.

  • Page 32: Basic Adjustment Settings

    BASIC ADJUSTMENT SETTINGS PARENTAL MENU (CONTINUED) TV Guidelines 1. Press to select "TV Guidelines" in "Parental" menu. 2. Press OK to display the TV Guidelines menu. 3. Press to select desired US-TV position and press OK to confirm. When setting an individual content-based rating items, do as follows: to access block content items from the currently selected age-based rating item.

  • Page 33: Troubleshooting

    TROUBLESHOOTING Please check the following items before asking for repair service. Symptom Neither picture nor - Check the contact of sockets is all right. sound. - Check the TV main power is on. Picture is OK, but no - Check the volume control is set to minimum or mute. sound.

  • Page 34: Technical Specifications

    TECHNICAL SPECIFICATIONS PANEL RESOLUTION VIEWING ANGLE (H/V) CONTRAST RATIO BRIGHTNESS (cd/m2) EFFECTIVE PIXEL RATE WITHOUT STAND DIMENSION WITH STAND WITHOUT ST WEIGHT WITH STAND TV STANDARD TUNING SYSTEM TV-FUNCTION FREQUENCY RANGE CATV DIGITAL TERRESTRIAL BROADCAST (8VSB) DIGITAL CABLE(64/256QAM) ANALOG TERRESTRIAL INPUT POWER SOUND OUTPUT POWER CONSUMPTION...

  • Page 35: Basic Operations

    BASIC OPERATIONS (FOR DVD PLAYER) Play Discs 1. Press POWER to turn on the unit. 2. P r e s s t h e D V D b u t t o n o n t h e r e m o t e c o n t r o l t o e n t e r D V D s t a t u s .
  • Page 36 BASIC OPERATIONS (FOR DVD PLAYER) Remember, you can only access the Display when you're playing a disc. Also, the Display features are only available if the disc was created with that particular feature (i.e., if you select the Subtitle icon, you won't be able to change the subtitle language unless the author of the disc created the disc with subtitles).
  • Page 37 BASIC OPERATIONS (FOR DVD PLAYER) 1. When the disc is playing, press OSD on the remote to bring up the Display. 2. Press the buttons to highlight the Subtitle icon. 3. Press the buttons to scroll through the subtitle languages that are available on the disc until the subtitle language you want to use appears in the text box.

  • Page 38: Volume Control

    BASIC OPERATIONS (FOR DVD PLAYER) To Use Repeat: 1. While a disc is playing, press OSD on the remote to bring up the Display. 2. Highlight the Repeat icon. 3. Press the buttons to scroll through the Repeat options until the Repeat option you want is displayed in the text box.

  • Page 39: Basic Operations

    BASIC OPERATIONS Select with Number Buttons Load a disc. Press number buttons to select tracks after the unit finishes reading the disc. 1. If the track number isn't over 10, just push buttons 1-10. Example: push 8 to select track 8. The screen shows: TRACK08/20 00:00...

  • Page 40: Fast Play

    PLAY DISCS IN VARIOUS WAYS Fast Play When playing a disc, you can play it in fast-forward or fast-reverse mode to find what you want to view. DVD OR CD 1. While disc is playing, press to play in fast-forward mode.

  • Page 41: Zoom Play

    PLAY DISCS IN VARIOUS WAYS REPEAT 2. To repeat a disc: Press REPEAT , the screen shows " The unit plays all the tracks on the disc. REPEAT 3. To remove "REPEAT" function: Press REPEAT till " ALL" disappears. Zoom Play This function can be used to watch a motion or motionless picture.

  • Page 42: Program Play

    PLAY DISCS IN VARIOUS WAYS Program Play STOP PREV NEXT ZOOM AUDIO PLAY MODE SUBTITLE PLAY MODE RC-600 To use the program playback feature, you must enter the order in which you want the titles (and chapters) on the DVD or the tracks on the CD to play by creating a program.

  • Page 43: Play Discs In Various Ways

    PLAY DISCS IN VARIOUS WAYS Shuffle (Random) Play The unit can play DVD chapters or audio tracks in random order. The order is different each time. 1. Press PLAY MODE to select shuffle or random play mode when a disc is playing. PLAY MODE The screen shows: SHUFFLE...

  • Page 44: Menu Setting

    MENU SETTING According to the recorded information and external equipment, set the following functions for the player to obtain the best playing status. TITLE MENU STOP /USB/CARD PREV NEXT ZOOM SETUP AUDIO REPEAT PLAY MODE SUBTITLE EJECT VIEW MODE VIEW MODE RC-600 1.Press SETUP to set options in the main menu.

  • Page 45: General Setup

    MENU SETTING Press (PLAY) to confirm your selection. Set "Dual ● Mono" in "Dolby Digital Setup" to "Left Mono". The sereen shows: --Dolby Digital Setup-- Dual Mono Stereo Left Mono Right Mono Mixed Mono D.R.C Audio Setup 3. Exit setup menu. Press the direction button to exit from "Dual ●...

  • Page 46: Last Memory

    MENU SETTING ■ OSD LANGUAGE ENGLISH ● The OSD is in English. FRENCH ● The OSD is in French. SPANISH ● The OSD is in Spanish. ■ CAPTIONS ● Subtitles are shown. ● Subtitles are hidden. ■ SCREEN SAVER The screen saver image appears when the unit stops or the image is frozen for a few minutes.

  • Page 47: Password Setup

    MENU SETTING ■ 3D PROCESSING The setting structure is: - - 3D Processing Page - - V SURR Reverb Mode Concert Living Room Hall Bathroom Cave Arena Church Audio Setup V SURR ● Use to turn the above function off. REVERB MODE ●...

  • Page 48: Menu Setting

    MENU SETTING Preferences The setting structure is : - - Preference Page - - Audio English French Spanish Chinese Japanese Subtitle English French Spanish Chinese Japanese Disc Menu English French Spanish Chinese Japanese Parental 1 KID 3 PG 4 PG 13 5 PGR 7 NC17 8 ADULT...

  • Page 49: Digital Card Play Operation

    MEMORY CARD PLAY OPERATION MEMORY CARD (MMC/SD /Memory Stick card ) can memory MP3 songs and digital pictures . How to select MEMORY CARD to play 1. Turn on the power. 2. Insert MMC/SD/Memory Stick card to the "3 in 1 DIGITAL CARD" Slot. NOTE: Insert the digital card with the label side downwards.

  • Page 50: Troubleshooting

    TROUBLESHOOTING If you experience the following problems while using the unit, this troubleshooting guide can help you. No sound Check if the unit is connected securely. ● Make sure the TV or amplifier is working properly. ● Make sure the amplifier is set to receive DVD signal ●...

  • Page 51: Technical Specifications

    TECHNICAL SPECIFICATIONS Laser Video system Frequency response Signal/noise ratio Audio distortion + noise Channel separation Dynamic range Audio out (analog audio) Output Video out Power supply Power Consumption This manual is only for your reference, any change to the design and specifications will not be advised. Wavelength 650nm NTSC 20Hz ~ 20KHz±2.5dB...
