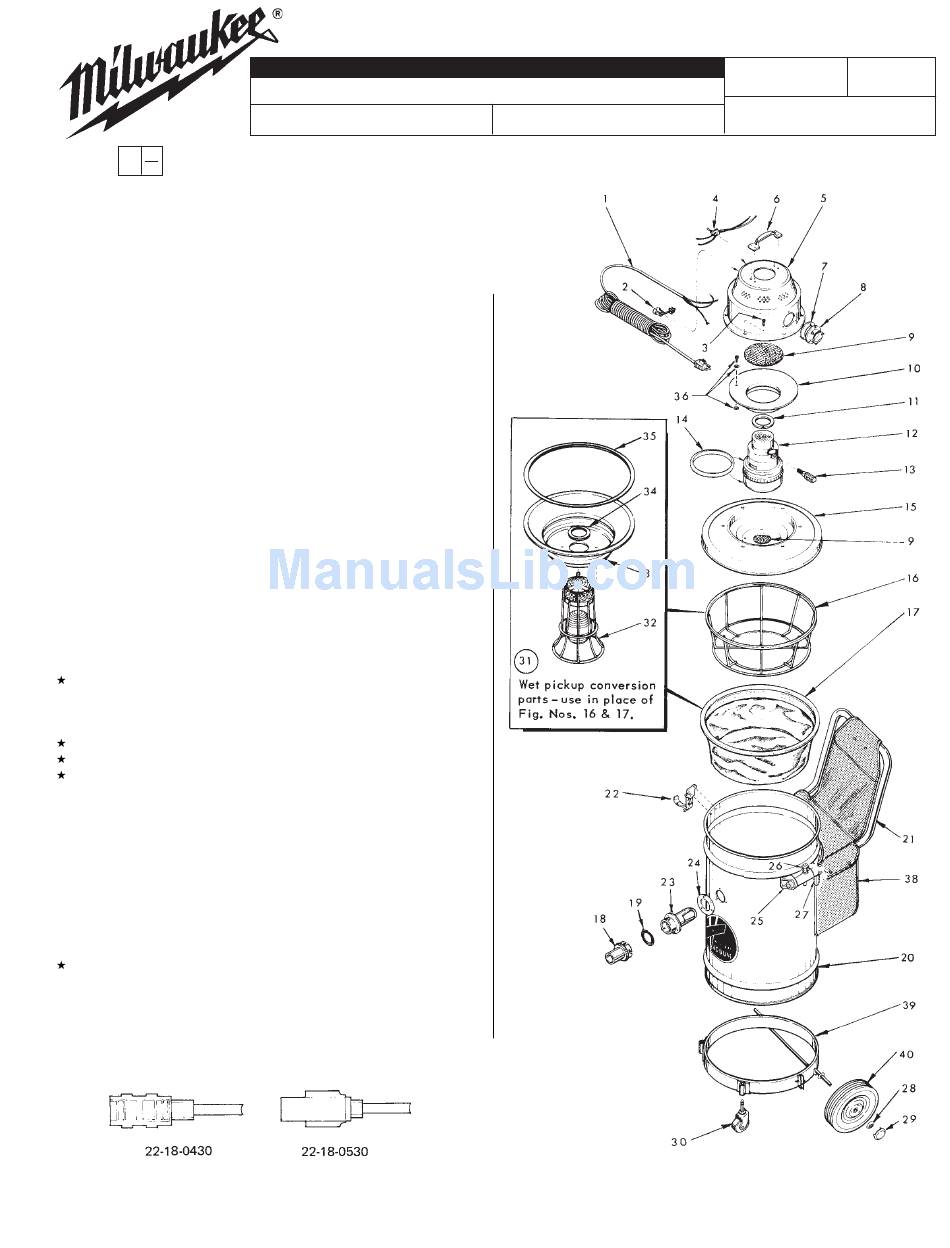

Milwaukee 8911 Service Parts List

EXAMPLE:
Component Parts (Small #)
00
Are Included When Ordering
0
The Assembly (Large #).
FIG. PART NO. DESCRIPTION OF PART
1 22-64-0700 Cord Set
2 44-76-0020 Cord Protector
3 06-85-2000 12 x 1/2 Phillips Type B Pan Hd. Screw
4 23-66-0870 Switch
5 42-92-0350 Motor Cover Assembly (Incl. Figs. 6 thru 9)
6 43-62-0510 Handle
7 43-44-0335 Gasket
8 42-86-0070 Connector
9 45-03-0120 Perforated Aluminum Screen
10 42-04-0440 Motor Adapter
11 43-44-0360 Motor Top Gasket
12 23-30-0100 Small Bypass Motor Assembly
13 --------------- Carbon Brush and Holder (Set)
(Refer to bottom of page)
14 43-44-0390 Motor Gasket
15 42-92-0270 Container Cover with Screen
16 49-90-0270 Wire Frame
17 49-90-0260 Cloth Filter and Gasket
18 49-90-0150 Swivel End Connector (Incl. Fig. 19)
19 43-44-0275 Fitted Gasket
20 42-51-0350 Steel Dust Container Assy.
(Incl. Figs.21 thru 27)
21 43-62-0920 Push Handle
22 42-68-0290 Hold Down Clamp
23 42-86-0080 Inlet Connector Assembly
24 43-44-0370 Gasket
25 42-36-1550 Handle Bracket
26 44-60-0860 Pin and Ring Assembly
27 42-60-0180 Chain Assembly
28 06-57-7505 Pal Nut
29 42-52-0220 Hub Cap
30 45-94-0140 Swivel Bearing Caster
31 49-90-1610 Wet Pick-up Conversion Pan Assy.
(Incl. Figs. 32 thru 35)
32 42-46-0110 Float Cage Assembly
33 44-54-0050 Wet Pan Adapter
34 43-44-0340 Shut Off Gasket
35 43-44-0330 Gasket
36 06-05-0010 Ground Screw Assembly
38 49-90-0250 Tool Caddy Bag
39 43-08-0195 Dolly Ring Body
40 45-94-0130 Wheel
49-90-0301 Filter Bags (Pkg. of Five, Not Shown)
SERVICE PARTS LIST
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
HEAVY-DUTY VACUUM CLEANER
CATALOG NO.
8911
NO. REQ.
STARTING
637-6397
SERIAL NO.
(1)
(1)
(6)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(2)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(3)
(1)
(1)
(2)
(2)
(2)
(2)
(2)
(2)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(2)
(1)
BULLETIN NO.
54-05-0326
REVISED BULLETIN
54-05-0325
WIRING INSTRUCTION
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
DATE
Jan. 2003
Drwg. 2
