Milwaukee 6016 Service Parts List

BULLETIN NO.

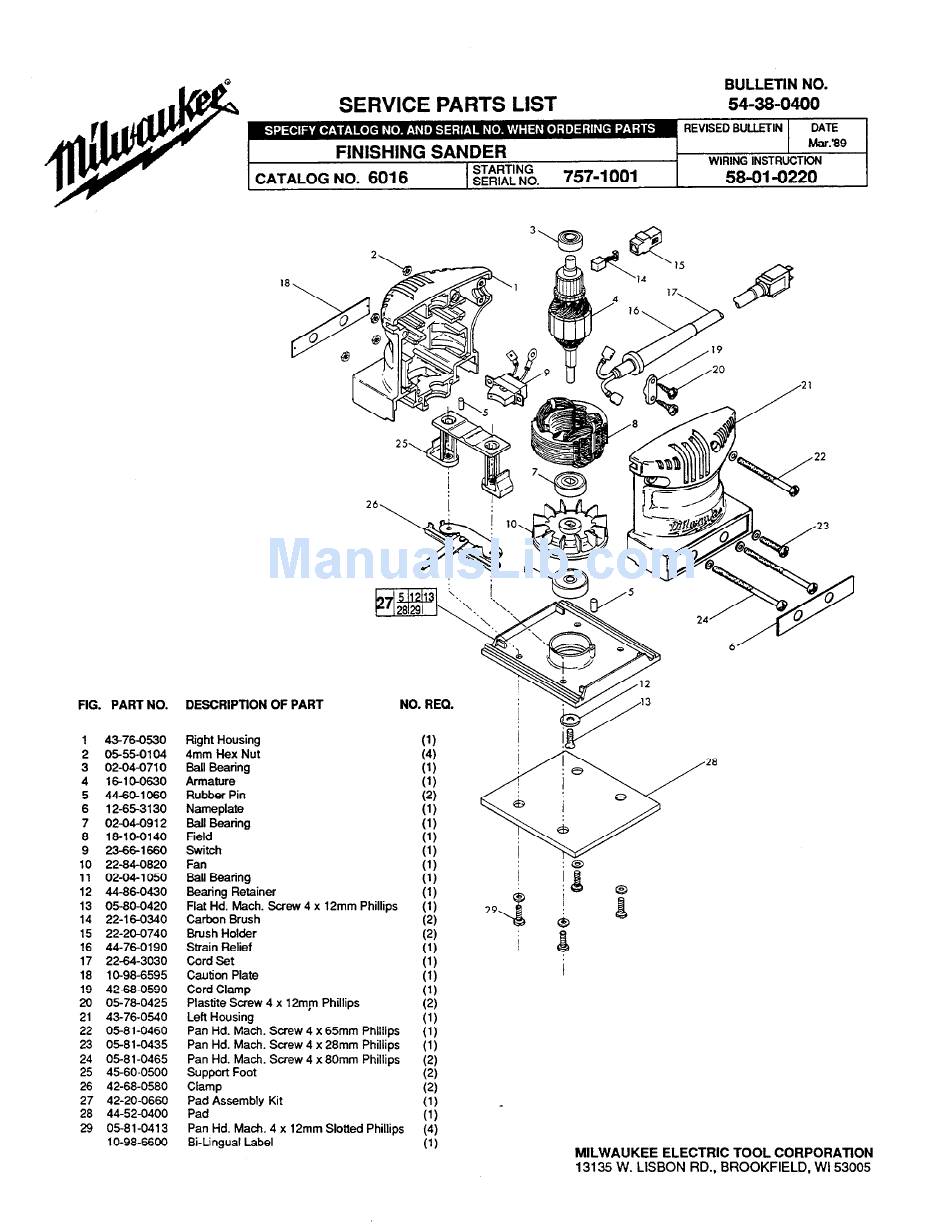

SERVICE PARTS LIST
54-38-0400
FINISHING SANDEr
CATALOG NO.
6016
REVISED BULLETIN DATE
K
Mar.89
--...-
WIRING
IN6TRUCTfCN
58-01-0220
FIG. PART NO.
1 4376-0530
2 0555-0104
3 02-04-0710
4 16-10-0630
5 44-60-1060
6 12-653130
7 02-04-0912
8 18-10-0140
9 23-66-1660
10 22-84-0820
11 02-04-l 050
12 44-86-0430
13 05-80-0420
14 22-16-0340
15 22-20-0740
16 44-76-0190
17 22-64-3030
18 1 O-98-6595
19 42-68-0590
20 05-78-0425
21 43-76-0540
22 05-81-0460
23 05-8 l-0435
24 05-81-0465
25 45-60-0500
26 42-68-0580
27 42-20-0660
28 44-52-0400
29 05-81-0413
10-98-6600
DESCRlPTlON OF PART
NO. REQ.
Right Housing
4mm Hex Nut
Ball Bearing
Armature
Rubber Pin
Nameplate
Ball Bearing
Field
Switch
Fan
(1)
:@
Ball Bearing
(1)
!
Bearing Retainer
(1)
IP @
Flat Hd. Mach. Screw 4 x 12mm Phillips
(1)
29
Carbon Brush
(2) 4
0
Brush Holder
(2)
Strain Relief
(1)
i I
Cord Set
Caution Plate
I:;
I
Cord Clamp
(1)
Plastite Screw 4 x 12mp Phillips
(2)
Left Housing
(1)
Pan Hd. Mach. Screw 4 x 65mm Phillips
(1)
Pan Hd. Mach. Screw 4 x 28mm Phillips
(1)
Pan Hd. Mach. Screw 4 x 80mm Phillips
Support Foot $1
Clamp
(2)
Pad Assembly Kit
(1)
_
Pad (1)
Pan Hd. Mach. 4 x 12mm Slotted Phillips
Bi-Lingual Label
MILWAUKEE ELECTRIC
TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD. WI 53005
