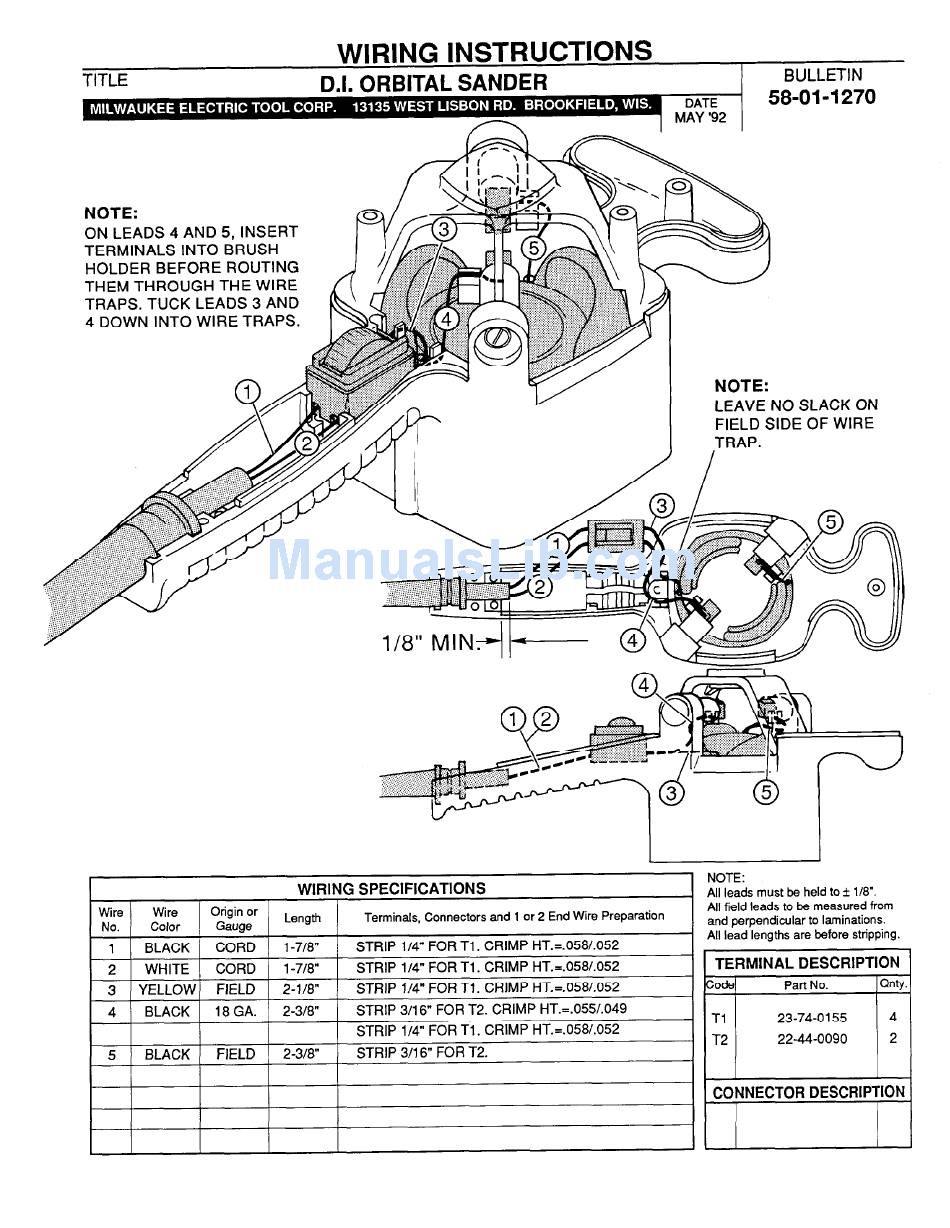

Milwaukee 58-01-1270 Wiring Instruction

D.i. orbital sander
Hide thumbs


Advertisement

NOTE:
ON LEADS 4 AND 5, INSERT
TERMINALS
INTO BRUSH
HOLDER BEFORE ROUTING
THEM THROUGH
THE WIRE
TRAPS. TUCK LEADS 3 AND
4 DOWN INTO WIRE TRAPS.
NOTE:
LEAVE NO SLACK ON
FIELD SIDE OF WIRE
TRAP.
NOTE:
All leads must be held to f l/E".
Terminals, Connectors and 1 or 2 End Wire Preparation
All field leads to be measured from
and perpendicular to laminations.
All lead lengths are before stripping.
TERMINAL DESCRIPTION
Co&
Part No.
Qnty.
Tl
23-74-0155
4
T2
22-44-0090
2
I I
1
