Milwaukee 58-01-0646 Wiring Instructions

Milwaukee pistol handle tools wiring instructions

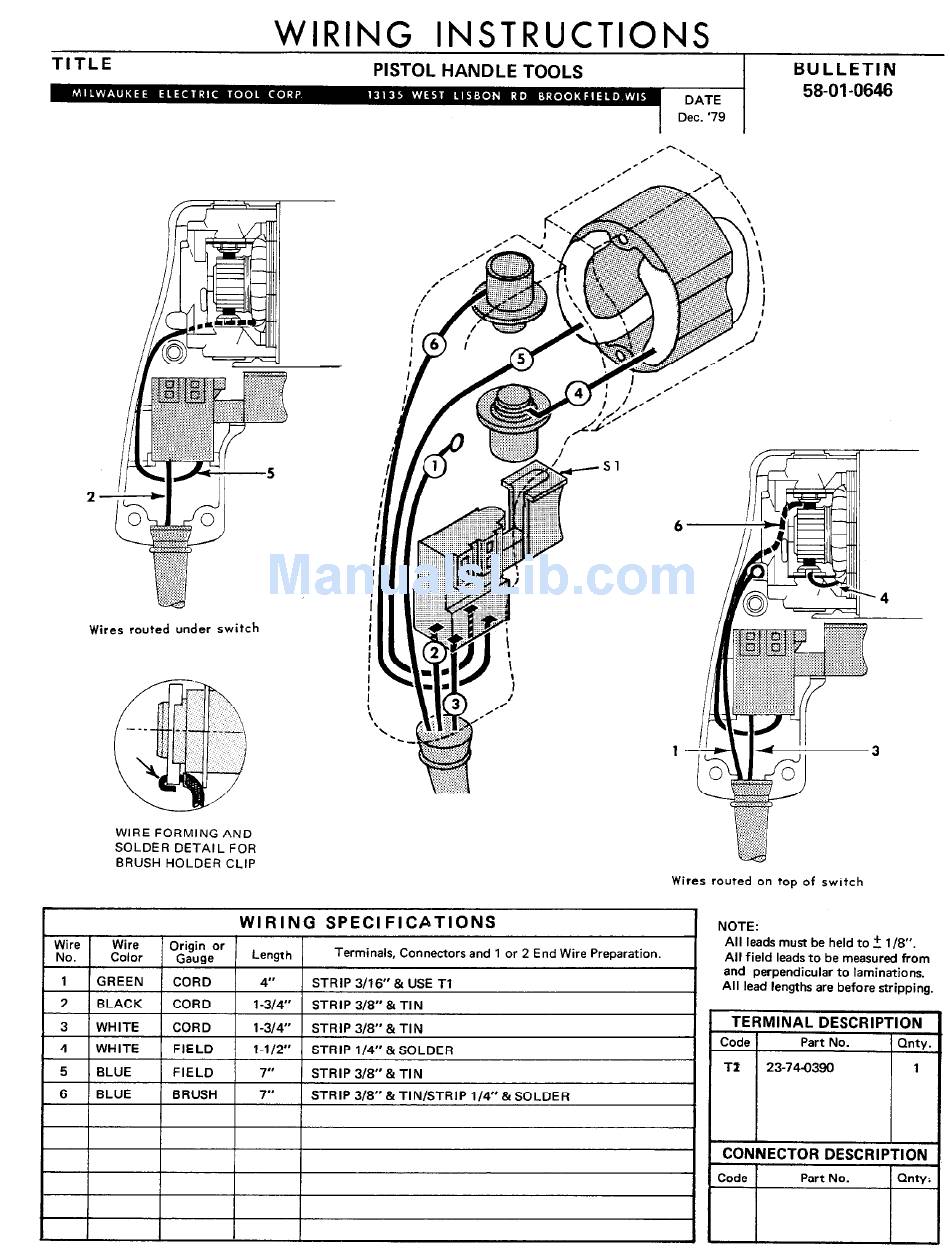

WIRING

INSTRUCTIONS

58-01-0646

Wires routed

under switch

WIRE FORMING

AND

SOLDER

DETAIL

FOR

BRUSH HOLDER

CLIP

Wires routed

on top of switch

NOTE:

All leads must be held to 2 l/8".

All field leads to be measured from

and perpendicular to laminations.

All lead lengths are before stripping.

TERMINAL

DESCRIPTION

Code

Part No.

Qnty.

23-74-0390

CONNECTOR DESCRIPTION

Code

Part No.

Qnty:
