Milwaukee Cordless Impact Wrench Wiring Instruction

TITLE
MILWAUKEE ELECTRIC TOOL CORP.
AS AN AID TO REASSEMBLY,
TAKE NOTE OF WIRE ROUTING
AND POSITION IN WIRE GUIDES
AND TRAPS WHILE
DISMANTLING TOOL.
SOLDER BOTH MOTOR
LEADS TO THE SWITCH
AS SHOWN. DO NOT
USE TERMINALS.
Wire Wire Origin or
No. Color Part No.
1 Black Motor Assy.
2 Red Motor Assy.
3 Red Switch Assy.
4 Black Switch Assy.

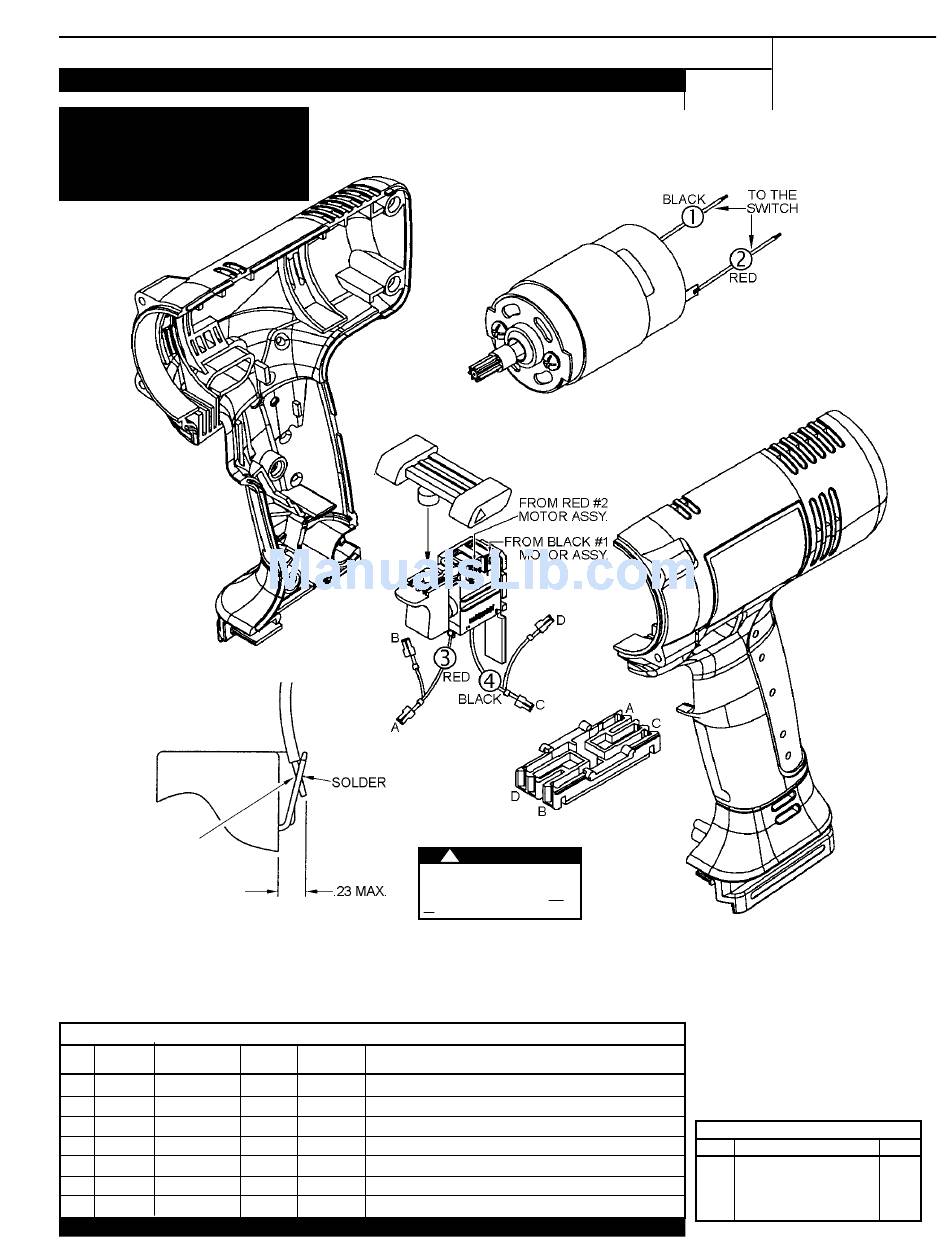

WIRING INSTRUCTIONS
CORDLESS IMPACT WRENCH
13135 WEST LISBON RD. BROOKFIELD, WIS.
SWITCH POLARITY SENSITIVE
If #3 and #4 are wired incorrectly
with connector block, switch will
be damaged and destroyed!
WIRING SPECIFICATIONS
Gauge Length Terminals, Connectors and End Wire Preparation
- - Component of the motor assembly.
- - Component of the motor assembly.
- - Component of the switch assembly.
- - Component of the switch assembly.
BULK LEAD WIRE - BULLETIN 58-01-0003
! WARNING
DATE
Nov. 2002
CONNECT WIRES AS SHOWN AND PLACE THE
COMPONENTS INTO THE LEFT HANDLE HALVE.
CAREFULLY ROUTE THE WIRES TO BE SURE THAT
THERE IS NO PINCHING WHEN
REASSEMBLING THE
RIGHT HANDLE
HALVE.
NOTE:
All lead lengths are before stripping.
All leads must be held to ± .125"
unless specified elsewhere.
Strip wire per ES 13-11.
Crimp terminals per ES 13-15.
TERMINAL DESCRIPTION
Code Part No.
BULLETIN
58-01-1835
Qty.
Drwg. 2
