Milwaukee 58-01-1830 Wiring Instructions

TITLE
MILWAUKEE ELECTRIC TOOL CORP.
ROUTE THE
LEADWIRES
BETWEEN THE
POSTS.
Black
leadwire #5
White leadwire #4
Wire Wire Origin or
No. Color Part No.
1 Black 22-18-1980
2 Red 22-18-2080
3 Red -----
4 Red -----
5 Black -----
6 Black -----

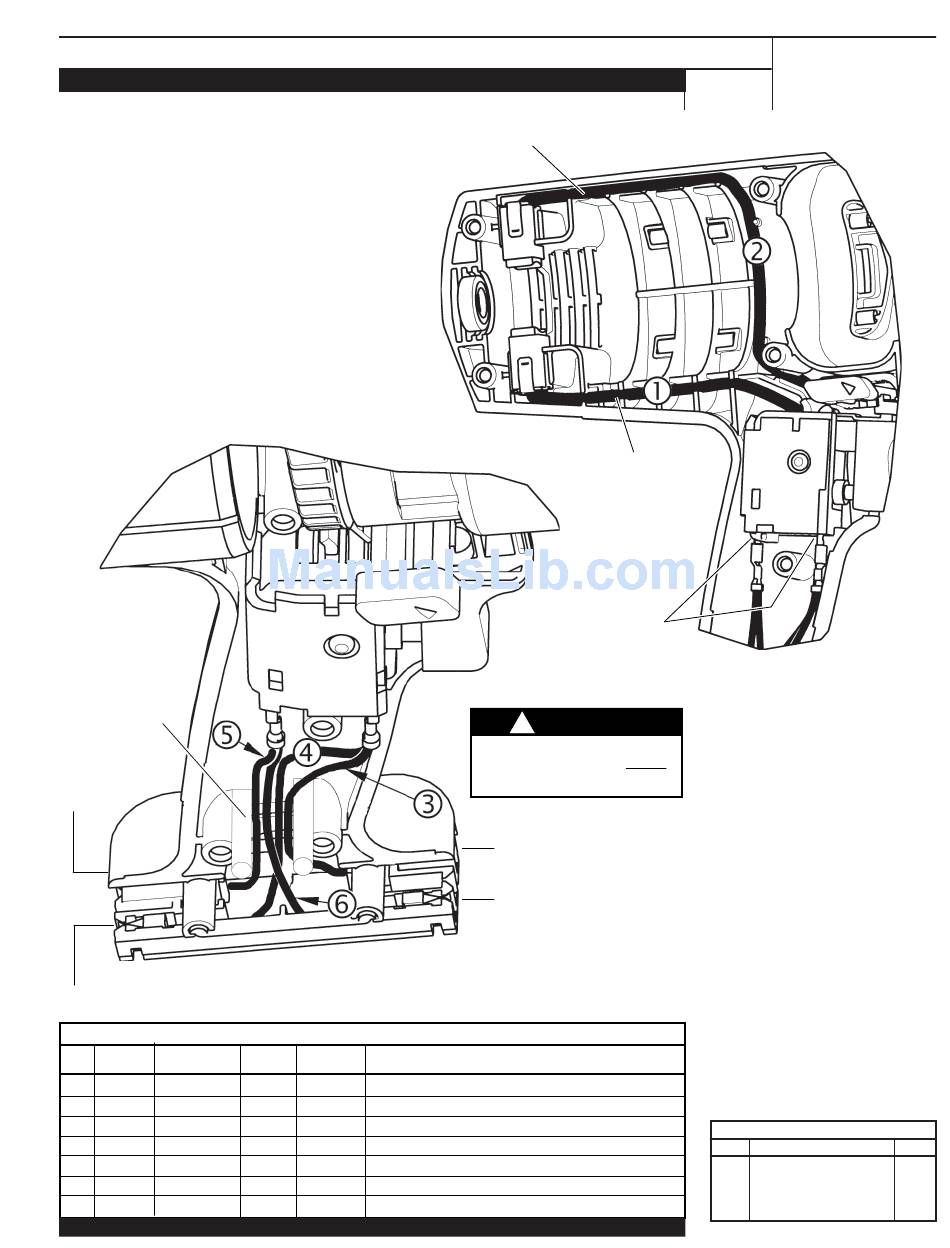

WIRING INSTRUCTIONS
CORDLESS IMPACT WRENCH
13135 WEST LISBON RD. BROOKFIELD, WIS.
Route red brush assembly
leadwire #2 through wire
traps as shown.

WIRING SPECIFICATIONS

Gauge Length Terminals, Connectors and End Wire Preparation
----- Brush Assembly.
----- Brush Assembly.
----- ----- Component of Connector Block Assy. 22-56-0279.
----- ----- Component of Connector Block Assy. 22-56-0279.
----- ----- Component of Connector Block Assy. 22-56-0279.
----- ----- Component of Connector Block Assy. 22-56-0279.
BULK LEAD WIRE - BULLETIN 58-01-0003
Route black brush
assembly leadwire
#1 through wire
traps as shown.

NOTE:

Terminals must be
soldered to switch.

WARNING

!
SWITCH POLARITY SENSITIVE
If wired incorrectly switch will be
damaged and destroyed!
White leadwire #3
NOTE:
On some early models,
leadwires #3 and #4 may be red.
Black leadwire #6
Later production and service
replacements are white.
BULLETIN
58-01-1830
DATE
Mar. 2010
NOTE:
All lead lengths are before stripping.
All leads must be held to ± .125"
unless specifi ed elsewhere.
Strip wire per ES 13-11.
Crimp terminals per ES 13-15.

TERMINAL DESCRIPTION

Code Part No. Qty.
Drwg. 5
