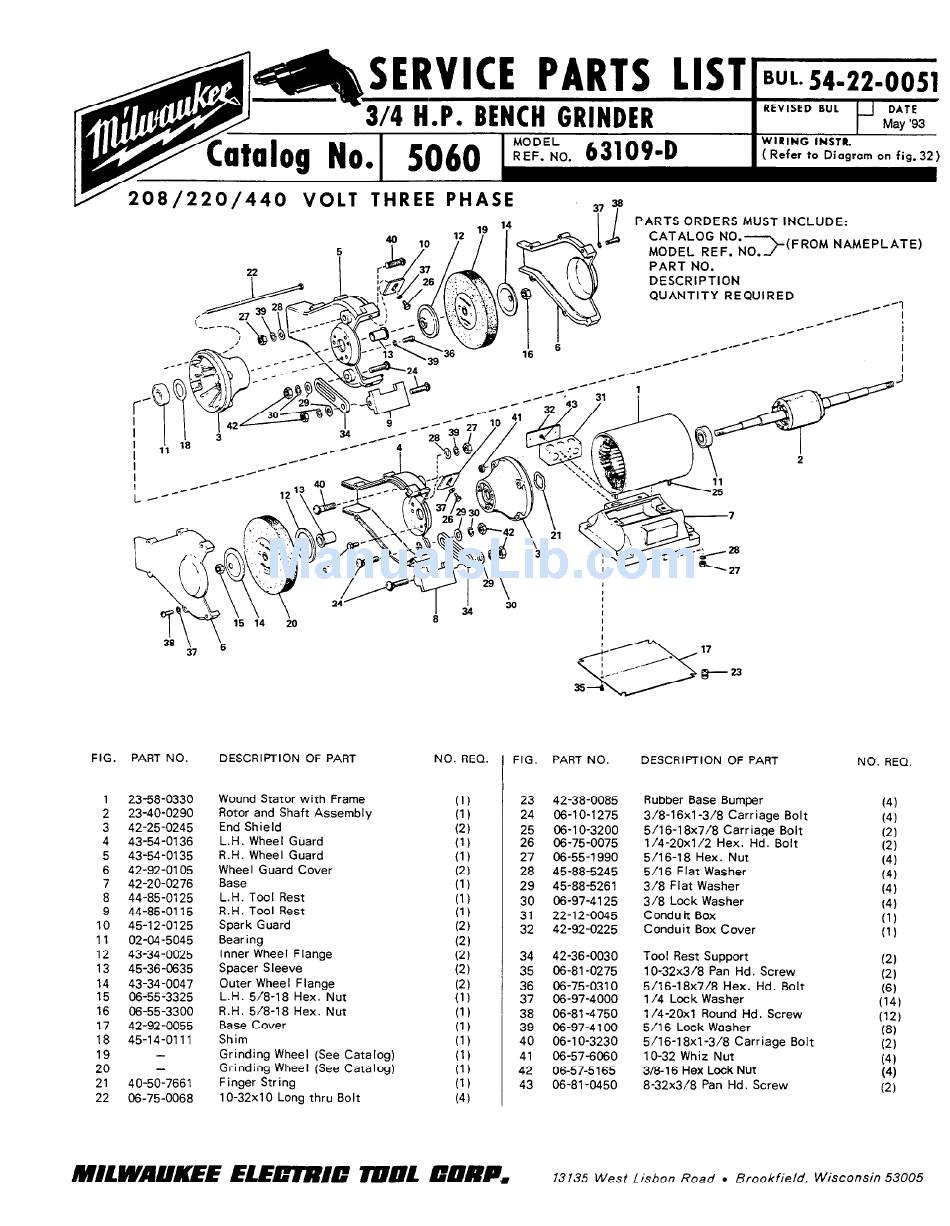

Milwaukee 63109-D Service Parts List

PARTS LIST
B"L-54-22-0051
3/4 H.P. BENCH GRINDER
63109-D
REVISED BUL
DATE
May '93
WIRING INSTR.
( Refer to Diagram on fig. 32)
7 208/220/440 VOLT THREE PHASE
1
23-58-0330
Wound Stator with Frame
2 23-40-0290
Rotor and Shaft Assembly
3 42-25-0245
End Shield
4
43-54-0136
L.H. Wheel Guard
5
43-54-0135
R.H. Wheel Guard
6 42-92-0105
Wheel Guard Cover
7 42-20-0276
Base
8 44-85-0125
L.H. Tool Rest
9 44-85-0115
R.H. Tool Rest
10 45-12-0125
Spark Guard
11
02-04-5045
Bearing
12 43-34-0025
Inner Wheel Flange
13 45-36-0635 Spacer Sleeve
14
43-34-0047
Outer Wheel Flange
15 06-55-3325 L.H. 518-18 Hex. Nut
16 06-55-3300
R.H. 5/8-18 Hex. Nut
17 42-92-0055
Base Cover
18 45-14-0111
Shim
19 -
Grinding Wheel (See Catalog)
20 -
Grinding Wheel (See Cataloa)
21
40-50-7661
Finger String
22 06-75-0068 1
O-32x1 0 Long thru Bolt
DESCRIPTION OF PART
NO. REQ.
1
FIG. PART NO. DESCRIPTION OF PART
NO. REQ.
(1)
(1)
(2)
(1)
(1)
(2)
(1)
(1)
(1)
(2)
(2)
(2)
(2)
i2i
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(4)
23 42-38-0085
24 06-10-1275
25 06-l O-3200
26 06-75-0075
27 06-55-l 990
28 45-88-5245
29 45-88-5261
30 06-97-4125
31 22-12-0045
32 42-92-0225
Rubber Base Bumper
3/8-16x1-3/8 Carriage Bolt
5/l 6-l 8x7/8 Carriage Bolt
1/4-20x1/2 Hex. Hd. Bolt
5116-18 Hex. Nut
5/16 Flat Washer
3/8 Flat Washer
3/8 Lock Washer
Conduit BOX
Conduit Box Cover
34 42-36-0030 Tool Rest Support
35 06-81-0275 10-32x318 Pan Hd. Screw
36 06-75-0310
5/16-18x7/8 Hex. Hd. Bolt
37 06-97-4000
l/4 Lock Washer
38 06-81-4750 114-20x1 Round Hd. Screw
39 06-97-4100
5116 Lock Washer
40 06-l O-3230 5/16-18x1-3/8 Carriage Bolt
41 06-57-6060
lo-32 Whiz Nut
42 06-57-5 165
3/8-l 6 Hex Lock Nut
43 06-81-0450 8-32x3/8 Pan Hd. Screw
(4)
(4)
(2)
(2)
(4)
(4)
(4)
(4)
(1)
(1)
(2)
(2)
(6)
(14)
(12)
(8)
(2)
(4)
(4)
(2)
13135 West Lisbon Road
l
Brookfield,
Wisconsin
53005
