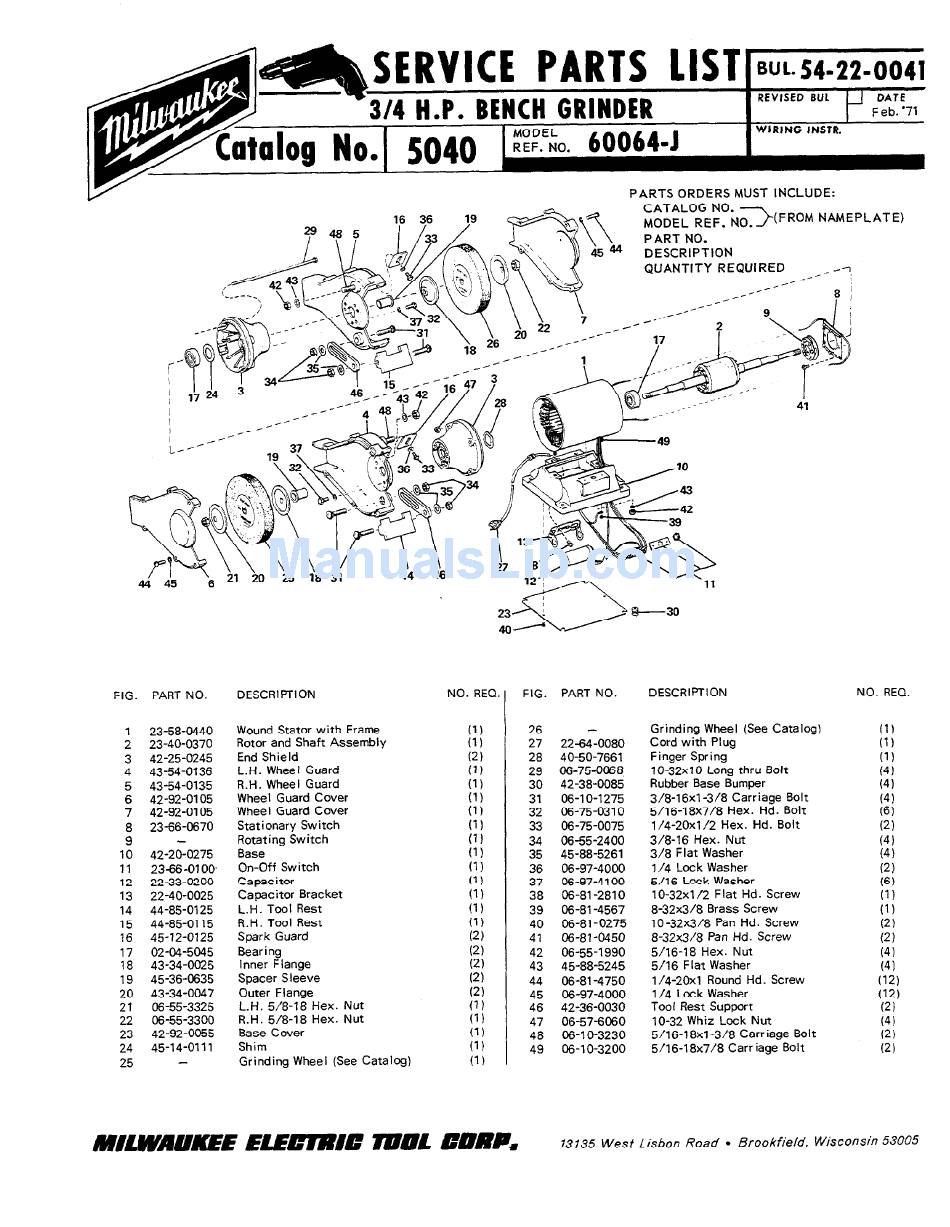

PARTS
ORDERS
MUST
INCLUDE:
CATALOG
NO.
(FROM
NAMEPLATE)
DESCRIPTION
QUANTITY
REQUIRED
21
20
25
18
31
FIG.
PART NO.
DESCRIPTION
NO. REG.
FIG.
PART NO.
DESCRIPTION
NO. REG.
1
23-58-0440
Wound Stator with Frame
(1)
2
23-40-0370
Rotor and Shaft Assembly
(1)
3
42-25-0245
End Shield
(2)
4
43-54-0136
L.H. Wheel Guard
(1)
5
43-54-0135
R.H. Wheel Guard
(1)
6
42-92-0105
Wheel Guard Cover
(1)
7
42-92-0105
Wheel Guard Cover
(1)
8
23-66-0670
Stationary
Switch
(1)
9
-
Rotating
Switch
(1)
10
42-20-0275
Base
(1)
11
2366-0100
On-Off
Switch
(1)
12
22-33-0200
Capacitor
(1)
13
22-40-0025
Capacitor
Bracket
(1)
14
44-85-0125
L.H. Tool Rest
(1)
15
44-85-01
i
5
R.H. Tool Rest
(1)
16
45-12-0125
Spark Guard
(2)
17
02-04-5045
Bearing
(2)
i
a
43-34-0025
Inner Flange
(2)
19
45-36-0635
Spacer
Sleeve
(2)
20
43-34-0047
Outer Flange
(2)
21
06-55-3325
L.H. 518-18
Hex.
Nut
(1)
22
06-55-3300
R.H. 5/a-18
Hex.
Nut
(1)
23
42-92-0055
Base Cover
(1)
24
45-14-0111
Shim
(1)
25
-
Grinding
Wheel
(See Catalog)
(1)
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
22-64-0080
40-50-7661
06-75-0068
42-38-0085
06-l O-1275
06-75-0310
06-75-0075
06-55-2400
45-88-5261
06-97-4000
06-97-4100
0681-2810
06-81-4567
06-81-0275
06-81-0450
06-55-1990
45-88-5245
06-81-4750
06-97-4000
42-36-0030
06-57-6060
06-l O-3230
06-l O-3200
Grinding
Wheel (See Catalog)
(1)
Cord with Plug
(1)
Finger Spring
(1)
10-32x10
Long thru Bolt
(41
Rubber Base Bumper
(4)
3/8-16x1-3/8
Carriage
Bolt
(4)
5/16-18x7/8
Hex.
Hd. Bolt
(6)
1/4-20x1
/2 Hex.
Hd. Bolt
(2)
3/a-16
Hex.
Nut
(4)
3/8
Flat Washer
(4)
l/4
Lock Washer
(2)
5/16
Lock Washer
(6)
10-32x1/2
Fiat Hd. Screw
(1)
8-32x3/8
Brass Screw
(1)
10-32x3/B
Pan Hd. Screw
(2)
8-32x3/8
Pan Hd. Screw
(2)
5/16-18
Hex.
Nut
(4)
5/16
Flat Washer
(41
1/4-20x1
Round Hd. Screw
(121
l/4
Lock Washer
(12)
Tool Rest Support
(21
lo-32
Whiz Lock Nut
(41
5/16-18x1-3/8
Carriage
Bolt
(2)
5/16-18x7/8
Carriage
Bolt
(2)
MtLWAM#EE
EMCIIMC
maL
CPRP
73135
West
Lisbon
Road
l
Brookfield.
Wisconsin
53005
