Milwaukee Dymodrill with Internal Clutch Service Parts List

EXAMPLE:
00
Component Parts (Small #)
0
Are Included When Ordering
The Assembly (Large #).
FIG. PART NO. DESCRIPTION OF PART
1 42-90-0210 Water Hose Fitting
2 45-80-0060 Shut Off Valve
3 06-57-1050 Retaining Nut
4 45-88-1140 Thrust Washer
5 43-06-0160 Clutch Disc-Outer
6 43-06-0150 Clutch Disc-Inner
7 43-76-0051 Water Swivel Hsg. w/ 06-83-2430 Scr. (1)
8 40-50-2150 Disc Spring
9 45-06-0635 Seal
10 45-88-8565 Washer (Bag of 2)
13 38-50-6020 Spindle
16 34-80-3800 Retaining Ring
17 02-20-2515 Ball Bearing
18 06-82-9202 1/4-20 x 4-1/4" Taptite T-30
19 28-14-1870 Gear Case Assy.(Inc. 06-65-1535 Pin) (1)
20 45-36-1520 Spindle Spacer
21 32-75-3440 Spindle Gear
22 02-50-4830 Needle Bearing
23 02-04-1205 Ball Bearing
24 36-66-3751 Pinion Shaft Assy.
25 06-42-1600 Woodruff Key
26 32-40-1581 Intermediate Gear
27 40-50-6300 Shifting Spring
28 44-70-0100 Shifting Plunger
29 32-60-2011 Pinion Gear
30 45-88-0520 Thrust Bearing Washer
31 02-80-1800 Thrust Bearing
32 32-10-0060 Clutch Gear
33 06-42-2000 Woodruff Key
34 36-14-0061 Clutch Shaft
35 45-88-0530 Thrust Bearing Washer
36 02-80-5000 Thrust Bearing
37 32-10-0051 Clutch Gear Assembly
38 45-88-0510 Thrust Bearing Washer
39 02-80-1200 Thrust Bearing
40 45-98-0090 Shifting Yoke
41 14-13-0210 Diaphragm Assy.(Inc. 06-65-1155 Pin) (1)
42 30-15-0272 Shift Cam
43 43-44-0580 Foam Gasket
44 06-65-0840 1/8 x 3/4" Groove Pin
45 25-60-0056 Shifting Knob
46 02-04-1229 Ball Bearing
SERVICE PARTS LIST
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS

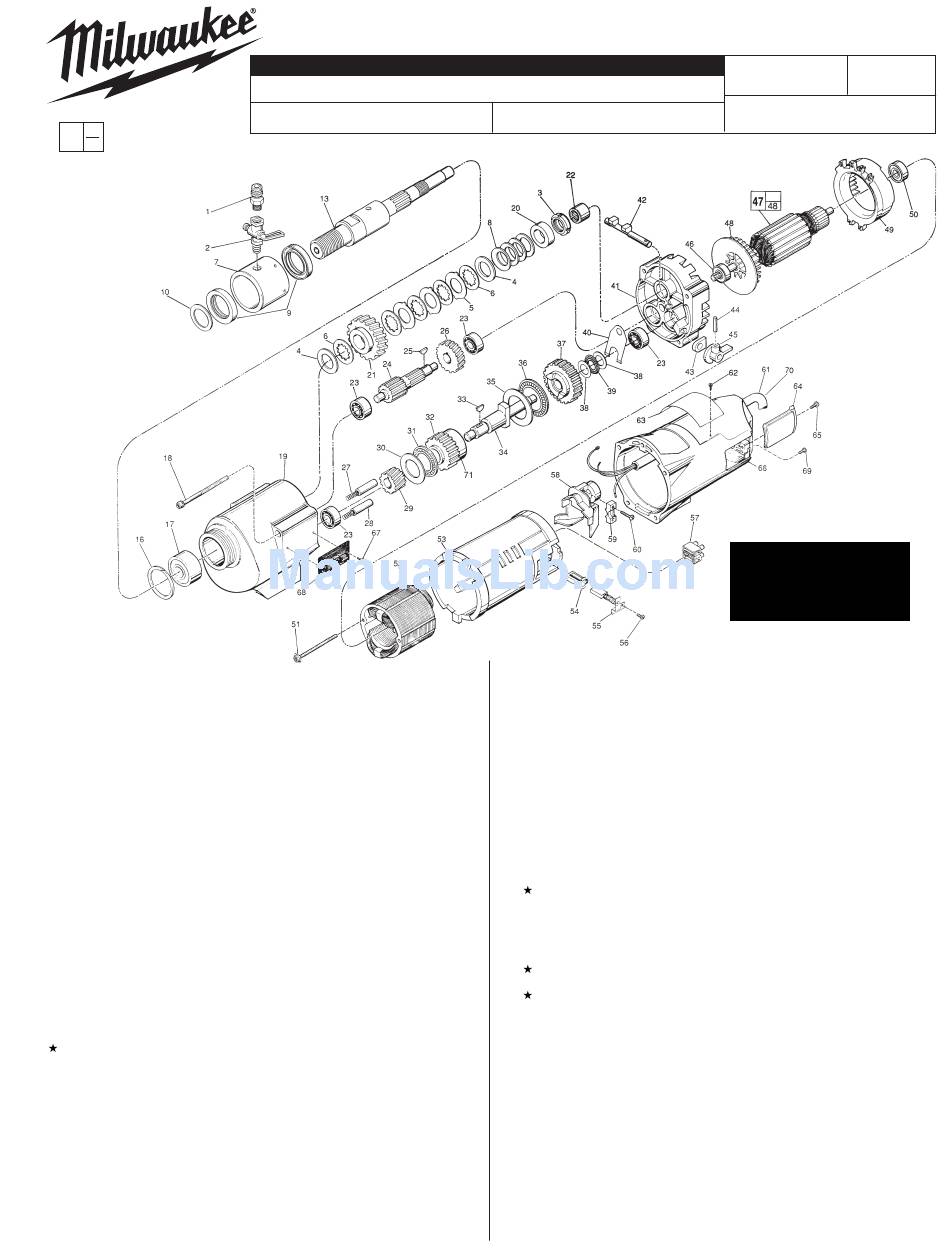

DYMODRILL with INTERNAL CLUTCH
CATALOG NO. 4005-4
NO. REQ.
(1)
(1)
(1)
(2)
(3)
(5)
(4)
(2)
(1)
(1)
(1)
(1)
(4)
(1)
(1)
(1)
(4)
(1)
(1)
(1)
(2)
(2)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(2)
(1)
(1)
(1)
(2)
(1)
(1)
(1)
STARTING
865B
SERIAL NO.
FIG. PART NO. DESCRIPTION OF PART
47 16-76-0325 230 V Armature
48 22-84-0790 Fan
49 42-14-0291 Baffl e
50 02-04-1041 Ball Bearing
51 06-82-9152 10-24 x 2-3/4" Pan Hd. Sem. T-25
52 18-74-0120 220 V. Field
53 23-16-1410 Motor Insulator
54 22-20-0680 Brush Tube
55 22-18-0706 Carbon Brush Assembly
56 06-82-8835 8-32 x 5/16" Pan Hd. Sem.T-20
57 22-56-0470 Terminal Block
58 22-38-0140 Wire Trap
59 31-17-0200 Cord Clamp
60 06-82-7326 8-16 x 1" Pan Hd. Plastite T-20
61 23-37-0150 Control Assy. (See Bull. 58-03-0020)
62 06-72-1720 Service Rivet
63 12-99-0115 Service Nameplate
64 22-32-0350 Brush Cover
65 06-82-5316 8-32 x 1/2" Pan Hd. Slt. Taptite T-20
66 28-50-6363 Motor Housing
67 06-82-5266 4-40 x 1/4" Pan Hd. TaptiteT-10
68 12-98-3060 Instruction Plate
69 06-95-5200 8-32 x 5/16" Slt. Hex Hd. Screw
70 22-36-0090 PRCD (See Bulletin No. 58-03-0020)
71 45-36-0225 Gear Spacer
49-96-4700 1-3/8" Open End Wrench
49-96-0050 3/32" Hex Socket Wrench
49-96-0085 3/16" Hex Socket Wrench
45-56-0210 Strap And Buckle
61-10-0660 Retaining Nut Spanner Tool
61-30-0061 Water Seal Jig
FOR MOUNTING DRILL MOTOR USE:
06-75-3090 1/4-20 x 7/8" Socket Hd. Screw
06-97-4050 1/4" Split Ring Lock Washer
FIG. LUBRICATION
19 18 Oz. Type "J" Grease, No. 49-08-4220.
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
BULLETIN NO.
55-16-5181
REVISED BULLETIN DATE
Mar. 2008
55-16-5180
WIRING INSTRUCTION
58-03-0020
SEE THE REVERSE SIDE
FOR THE SERVICING
OF THE INTERNAL
CLUTCH MECHANISM
NO. REQ.
(1)
(1)
(1)
(1)
(2)
(1)
(1)
(2)
(2)
(2)
(1)
(1)
(1)
(2)
(1)
(2)
(1)
(2)
(2)
(1)
(2)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(4)
(4)
Drwg. 4
