Milwaukee 58-03-0021 Wiring Instructions

TITLE
MILWAUKEE ELECTRIC TOOL CORP. 13135 WEST LISBON RD. BROOKFIELD, WIS.
Wire Wire Origin or
No. Color Gauge
1 Blue Cord
2 Brown Cord
3 White Field
4 Black Field
5 White Field
6 White Field
7 Green/Yellow Cord

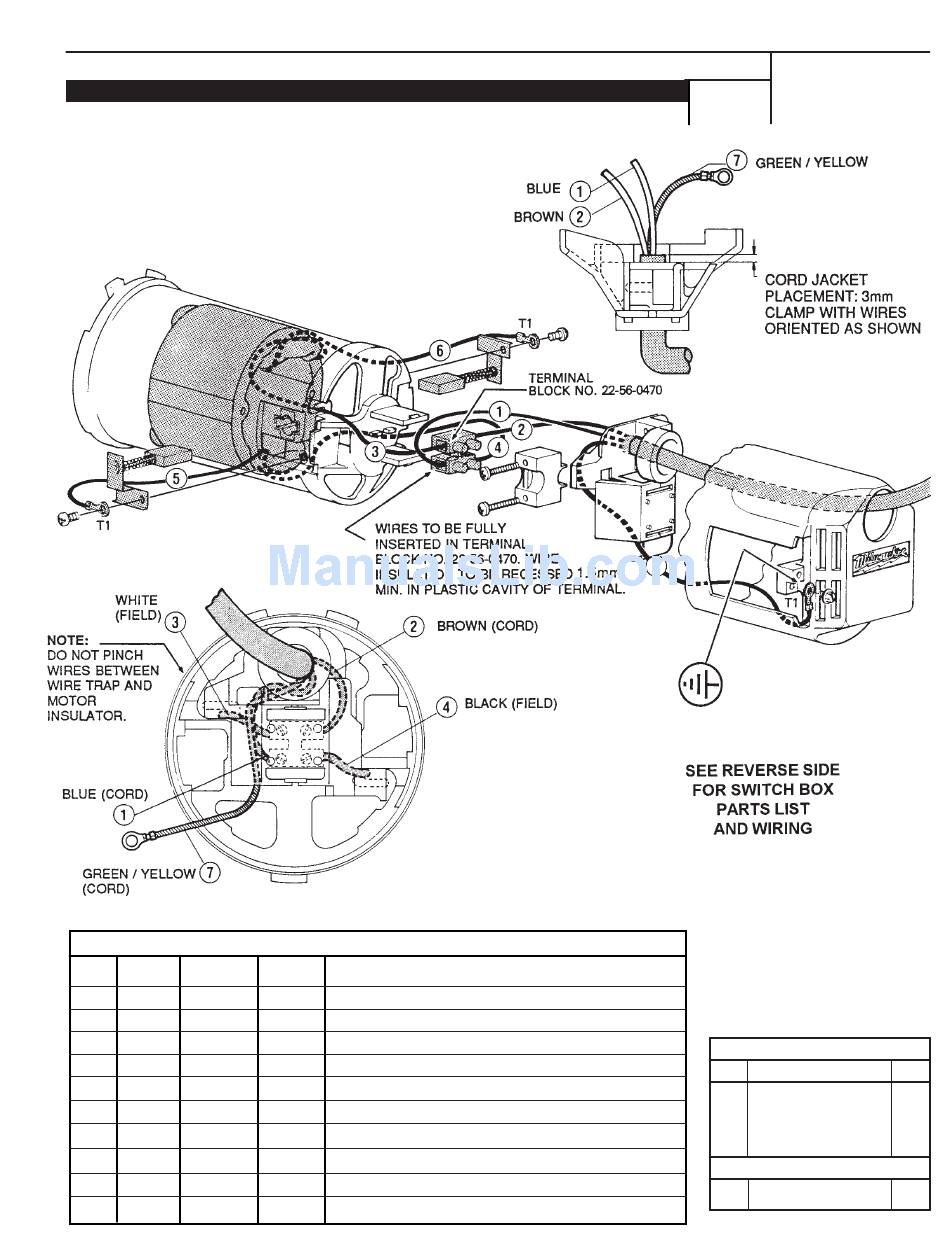

WIRING INSTRUCTIONS
DYMODRILL and SWITCH BOX
WIRING SPECIFICATIONS
Length
Terminals, Connectors and 1 or 2 End Wire Preparation
70mm As received, apply with #8.
70mm As received, apply with #9.
----- As received.
----- As received.
----- Strip 5mm for T1.
----- Strip 5mm for T1.
----- Strip 5mm for T1.
BULLETIN
58-03-0021
DATE
Oct. 2003
NOTE:
All leads must be held to ± 1/8".
All lead lengths are before stripping.
TERMINAL DESCRIPTION
Code Part No.
T1 23-74-0840
CONNECTOR DESCRIPTION
Qnty.
3
Drwg. 5
