Miller Electric SW3 Specifications

SSW Series Spot Welders
Applications
Sheet Metal Work
Quick
Light Fabrication
Maintenance Work
Specs
The Power of Blue

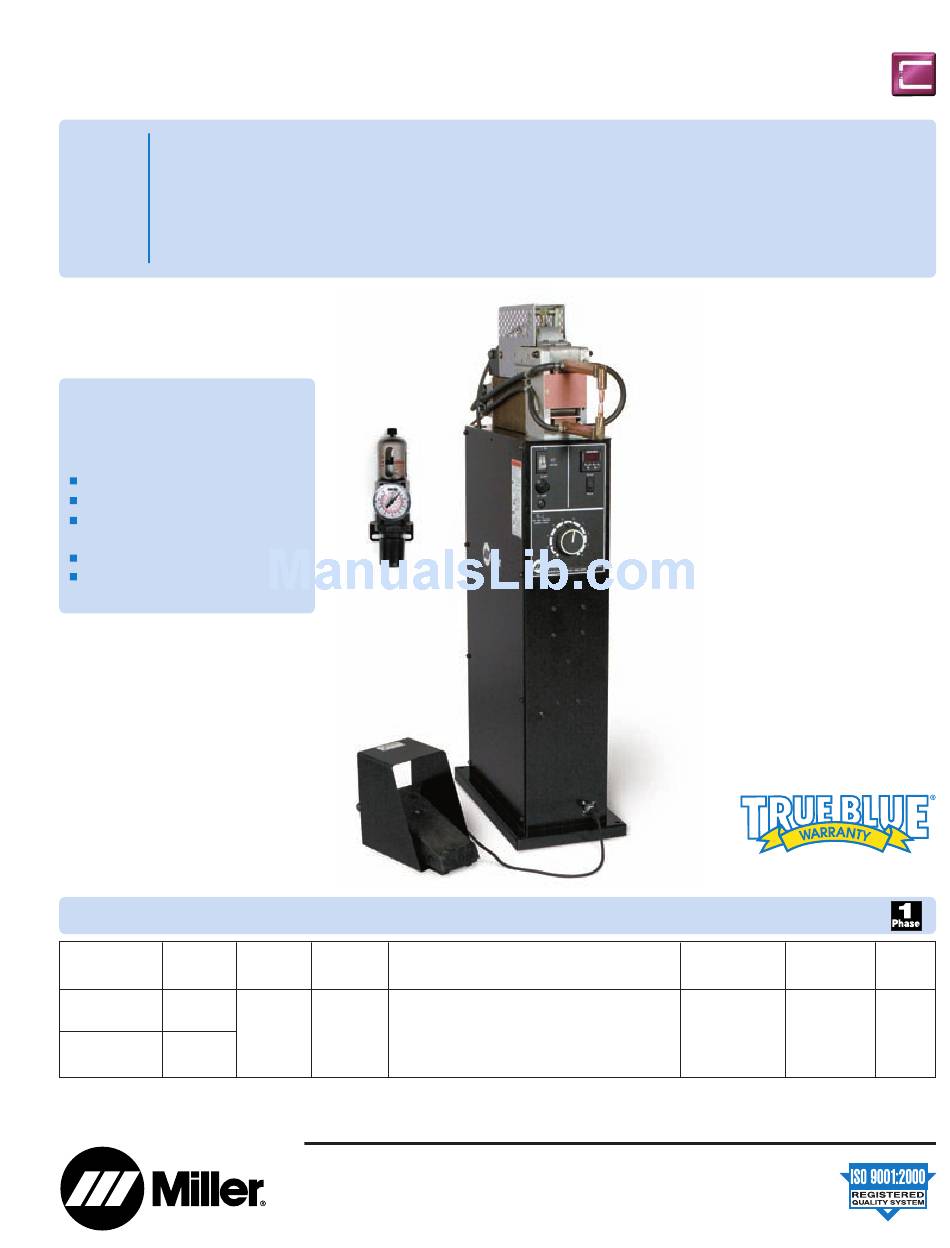

SSW models are designed for stationary
use and come with an all-steel pedestal
which houses timers and controls.
SSW models come complete with:
Stationary welding head
Remote foot switch
Pedestal inclusive of controls
and timer
Air filter/regulator assembly
Order tongs/tips separately to
match your applications
Set-up/weld switch permits checking of
tong pressure and alignment without
making a weld.
Built-in squeeze/weld timer makes it quick
and easy to set or adjust squeeze and/or
weld time in hundredths of a second.
LED display makes it easy to read and
see timer settings.
Specifications
(Subject to change without notice.)
Input
Model 50/60 Hz
SSW-2020 ATT 230 VAC
Stationary 90 Amps
SSW-2040 ATT 460 VAC
Stationary 45 Amps
*Combined thickness un coated mild steel using 6 in (152 mm) tongs.
**Duty Cycle based on 10-second time period. (40% duty cycle means unit can weld for 4 second out of each 10-second time period.)
Process
Resistance Spot Welding
Work Capacity
weld total thicknesses up to 1/4 in
(6.3 mm). Not recommended for
aluminum or copper alloys.
.
®
Air filter/regulator
assembly included.
Work Rated Rated Output (Calibrated w/ standard-type tongs)
Capacity* Out put** 6 in (152 mm) 12 in (305 mm) 18 in (457 mm)
1/4 in 20 kVA at 12,500 A
(6.3 mm) 40% Duty
Cycle
Miller Electric Mfg. Co.
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Rated Output
20 kVA units
Weight
10,500 A 9000 A
International Headquarters
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
Issued July 2008 • Index No. SW/3.1
Water-Cooled Resistance
Spot Welders
20 kVA at 40% duty cycle
depending on model, based
on 10-second time period
SSW 170 – 185 lb (77 – 84 kg) Depending on model
SSW foot switch permits user to use both hands
to position weldment between tongs. Can be held
longer if longer hold time is desired.
All spot welders operate on single-phase input
power, and require an air supply of 60 PSI
(414 kPa) minimum.
Adjustable tong pressure nuts to adjust tong
pressure for different thicknesses and applications.
Power switch/power "on" light/circuit breaker
protects control circuitry. Easy reset.
Cam-operated locking device simplifies
installation and adjustment of bottom tong.
Ten-step current control adjusts output current
with no change in duty cycle.
Max. Open- Dimensions
Circuit Voltage H x W x D
3.55 49 x 11 x
21-3/4 in
(1245 x 280
x 552 mm)
Web Site
www.MillerWelds.com
Net
Weight
185 lb
(84 kg)
