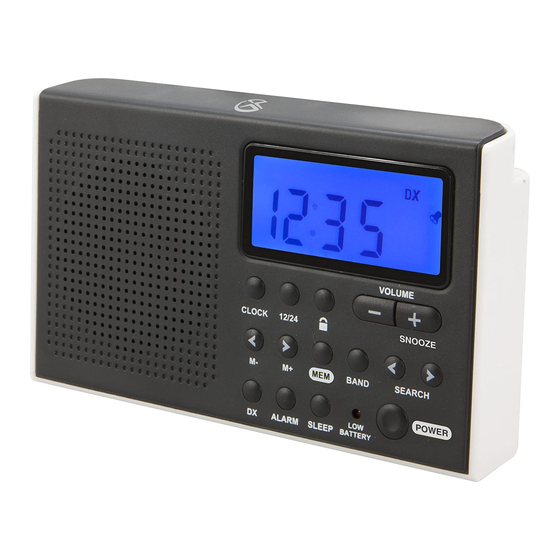

GPX R616W User Manual

Portable AM/FM/Shortwave Radio
User's Guide for Model No. R616W v1422-01

FCC Warnings

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FEATURES & CONTROLS
FEATURES
• Digital AM/FM/SW radio (PLL)
• Digital clock
• Single alarm with snooze
• Blue LCD display
• 12 or 24 hour clock
• Wake to radio and alarm
• Sleep timer
• Built-in AM antenna
• Telescopic FM/SW antenna
• Low battery indicator
• Built-in speaker
• 3.5mm headphone jack
• DC battery power: requires 2 AA batteries
(not included)
Speaker

Headphone Jack

(side)
Additional Warnings and Precautions
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product
and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Completely replace all old batteries with new ones.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
• Batteries should be recycled or disposed of as per state and local guidelines.
• To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your
headphones. After placing headphones in or on your ears, gradually turn up the volume until you reach a comfortable
listening level.
• WARNING: This product may contain chemicals known to the State of California to cause birth defects, or other
reproductive harm (California Prop 65). Wash hands after handling.
• This product meets and complies with all Federal regulations.
Clock
Press to display the time or
radio information.
12/24
Press to switch between
12/24 hour clock.
Hold
Press to lock all functions of
the unit. Can be used in any
function mode.
Volume/ Snooze
Press to turn the volume up
or down.
Press to snooze alarm
(See ALARM instructions on
following page).
FM/SW Antenna
M−/M+
Press to cycle through
memory presets.
Mem
Press to set a memory
preset.
Band
Press to switch between
AM/FM/SW radio
frequencies.
Search
Press to adjust the radio
frequency manually.
Press and hold to
automatically search for a
radio station.
Display
DX
Press to enhance FM/SW
sensitivity.
Alarm
Press to begin setting an
alarm.
Sleep
Press to begin setting Sleep
Timer.
Low Battery
Indicates batteries are low
and will need to be replaced
soon.
Power
Press to power the unit ON
or OFF.
