Miller Electric Roughneck C-Series Specifications

Roughneck
Applications
Construction
Quick
Fabrication
Maintenance/Repair
Specs
Manufacturing
The Power of Blue
Standard aluminum jacketed
goosenecks increase gun durability,
resist spatter, and dissipate heat more
effectively than copper alone.
360˚ wrench rotatable gooseneck allows
finger or thumb actuation of the trigger
and field replacement of goosenecks.
Interchangeable goosenecks
allow Roughneck welding guns to
adapt for hard to reach welds or
operator preference.
Optional Adapter Kits allow
Roughneck MIG welding guns to
adapt to most major brands of
welding equipment.
Die-crimped power cable
connections provides maximum
electrical conductivity and reduces
heat at power cable connection.
Steel spring strain relief
protects power cable from
wear on both ends and helps
prevent liner kinking, allowing
better wire feedability.
C-Series
®
Process
MIG (GMAW)
Flux Cored (FCAW)
.
®

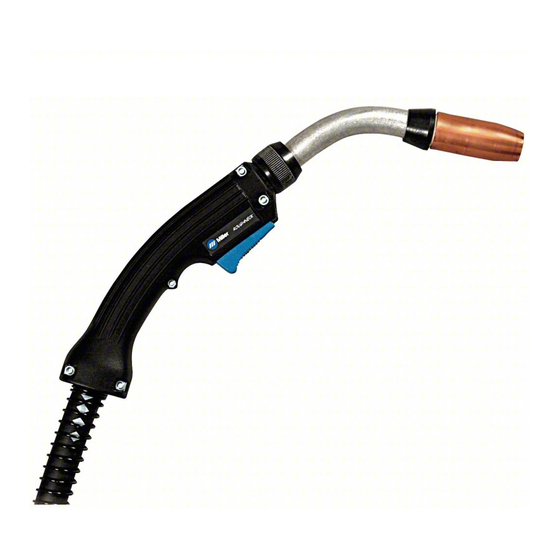

Roughneck C-Series
Simple, versatile and durable.
Gun is warranted for 90 days parts and labor.
Miller Electric Mfg. Co.
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Rated Output
C-30 Models: 300 A
C-50 Models: 500 A
Duty Cycle
100% with CO
Weight
C-30 Models: 5.6 –7.5 lb (2.5 – 3.4 kg)
C-40 Models: 7.5 –10.3 lb (3.4 – 4.7 kg)
C-50 Models: 9.3 –13 lb (4.2 – 5.9 kg)
C-60 Models: 10.3 –14.5 lb (4.7 – 6.6 kg)
International Headquarters
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
Issued March 2004 • Index No. AY/17.0
Air-Cooled MIG (GMAW)
Welding Guns
C-40 Models: 400 A
C-60 Models: 600 A
gas
2
Patent-pending one-turn screw-on copper
and brass nozzles are available in a wide
variety of sizes to fit most welding
applications or operator preference.
Heavy-duty nozzles feature patented
reduced frontal area to decrease heat
transfer for cooler operation.
Reliable extended-life trigger is rated
for 1.5+ million cycles and is quickly
changeable if worn out.
FasTip ™ contact tip features one fast turn
on and off. It also exhibits extended life
when compared to standard threaded
contact tips. FasTip is patented under
U.S. patents 5,760,373 and 5,911,894.
Commonality of parts and consumables
between all models helps reduce inventory
and aids serviceability.
Web Site
www.MillerWelds.com
